Engine-Engineandcrankcase

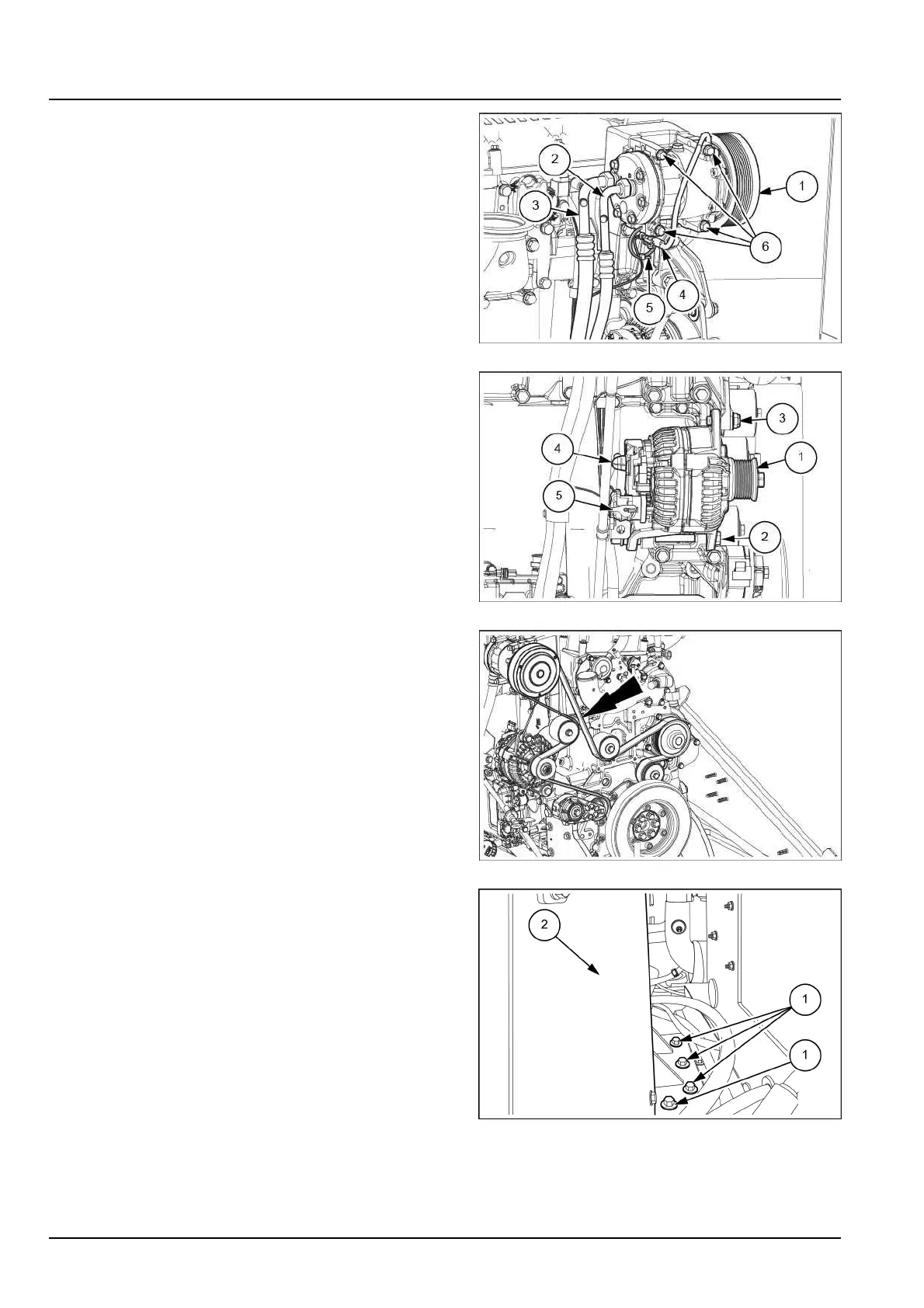

17.Installtheairconditioningcompressor(1)withthe
mountingbolts(6).
Connectthelow-pressureline(3)tothesuctionport
(compressortocondenserhose).Connectthehigh-
pressureline(2)tothedischargeport(cabtocom-
pressorhose)oftheair-conditioningcompressor.
ConnecttheACT_10connectortoaircompressor
clutchconnector(4)andsecureittothecompressor
withthecablestrap(5).
LEIL17WHL0263AB15
18.Installthealternator(1)totheenginewithbolts,wash-
ersandnut(2),(3).ConnecttheALT_BandALT_5
connectors(4),(5).
LEIL17WHL0265AB16
19.Installthedrivebeltontheengine.
LEIL17WHL0266AB17
20.Attachliftingequipmenttotheenginewall(2).Posi-
tiontheenginewallinthecorrectpositiononthema-
chineandinstalltheenginewallhold-downbolts(1).
LEIL15WHL1055AB18
48083742_EN31/07/2018
10.1[10.001]/24
