Case 1650M - Bypass Hydrostatic Pumps

INTRODUCTION

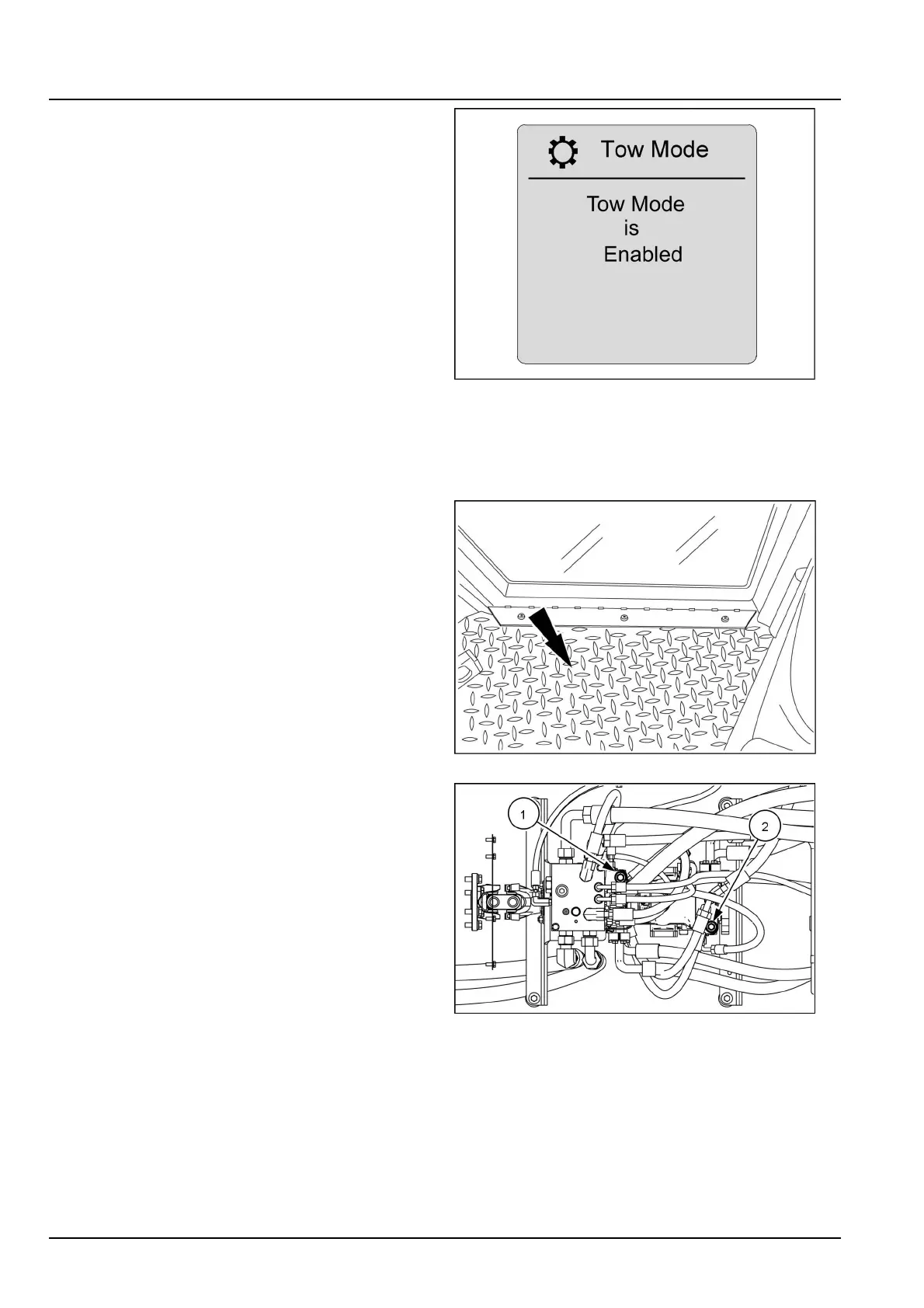

8.Thetowmodewillbeenabled.Waitforthenextscreen
promptbeforeyoutowthemachine.
RAIL12DOZ0829AA9
Bypasshydrostaticpumps
Youmustopenthepressurereliefvalvesinordertobypassthehydrostaticpumps.Therearetwovalveslocatedon
eachhydrostaticpump.
9.Accesstheupperpressurereliefvalvebyremoving
theoormat(1),cabooraccesspanel,andtilting
theoperatorseatback.Thevalvesarelocatedonthe
hydrostaticpumpsbeneaththecaboor.
RAIL12DOZ0232AA10
10.Openpressurereliefvalvestobypassthehydrostatic
pumps(tworightsidevalves(1)andtwoleftside
valves(2).Thepumpsaretandemmountedandthe
valvescanbefoundoneachsideofthepump.
RAIL13DOZ1265AA11
4804856726/04/2017
48
