Case 1850K - MAIN DIMENSIONS 1850 K BD

Carefully read personal and machine SAFETY PRECAUTIONS at the beginning of this Manual
GENERALITIES0 - 6 1850K
B
Q
O
P
R
C
D
G H
M
N
L
A
F
E I

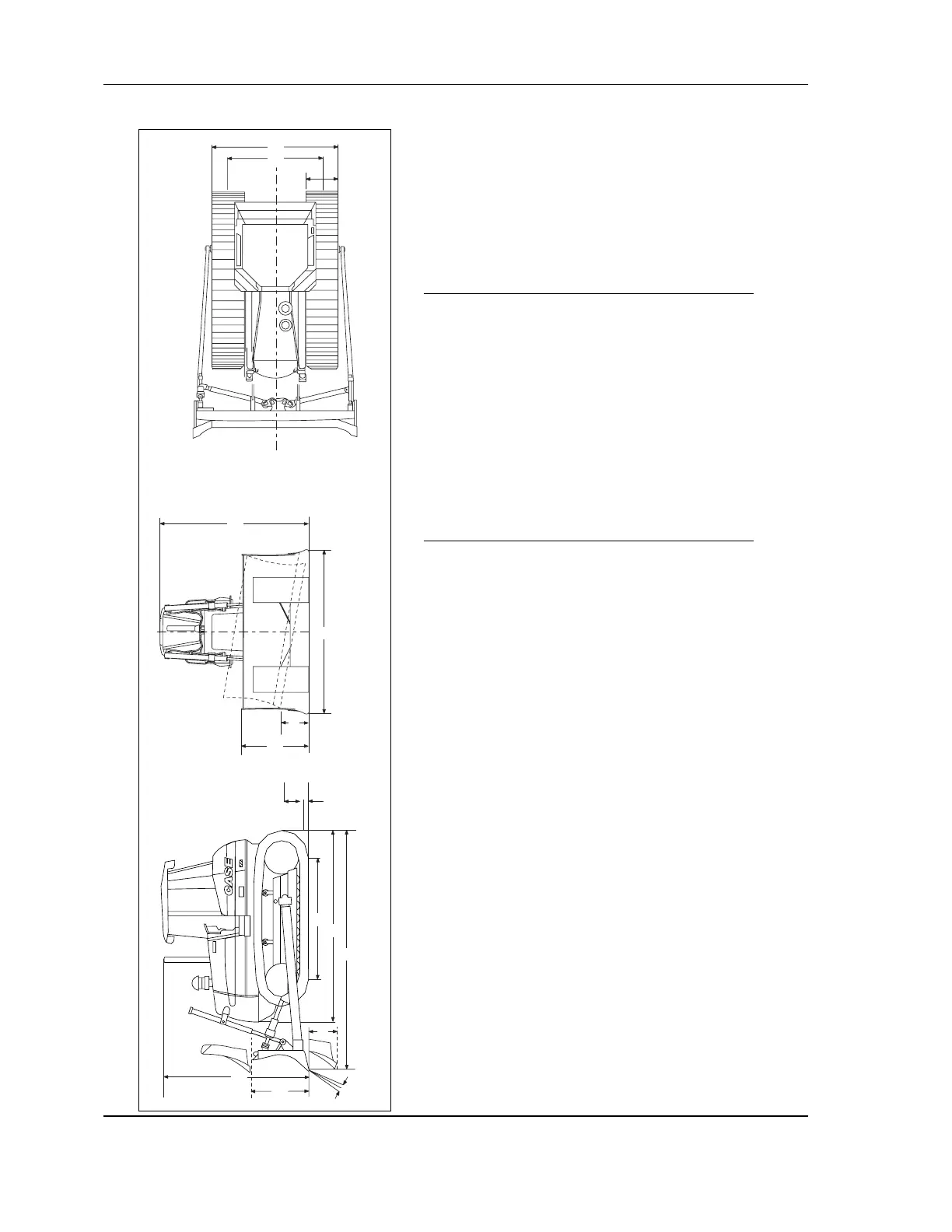

MAIN DIMENSIONS 1850K BD
1850-2M0007
TRACTOR DIMENSION LT BD XLT BD LGP BD A Height over cab mm 3235 (127.4 in) 3235 (127.4 in) 3235 (127.4 in) B Height over muffler mm 3195 (125.8 in) 3195 (125.8 in) 3195 (125.8 in) C Tractor length mm 4195 (165.1 in) 4340 (170.9 in) 4340 (170.9 in) D Length of track on ground mm 2700 (106.2 in) 3205 (126.2 in) 3205 (126.2 in) E Gauge mm 1900 (74.8 in) 1900 (74.8 in) 2082 (82 in) F Track shoes width mm 560-610 (22-24 in) 560-610 (22-24 in) 762-915 (30-36 in) G Shoe grouser height mm 71.5 (2.8 in) 71.5 (2.8 in) 71.5 (2.8 in) H Ground clearance mm 390 (15.3 in) 390 (15.3 in) 390 (15.3 in) I Overall width with shoes 560 (22 in) mm 2460 (96.8 in 2460 (96.8 in) –
Overall width with shoes 610 (24 in) mm 2510 (98.8 in) 2510 (98.8 in) – Overall width with shoes 760 (30 in) mm – – 2844 (111.9 in) Overall width with shoes 915 (36 in) mm – – 2997 (118 in)
Shipping weight w blade*** kg 17290 (38117 lb) 18390 (40543 lb) 19400 (42769 lb) BLADES DIMENSIONS
Semi-U (HSU) Straight (HS) Semi-U (HSU) Straight(HS) Straight(HS)
Blade capacity SAE J1265 m
3
5.6 (197.8 ft
3
) 3.9 (137.7 ft
3
) 5.6 (197.8 ft
3
) 3.9 (137.7 ft
3
) 3,7 (130.7 ft
3
)
L Width of blade mm 3460 (136.2 in) 3385 (133.3 in) 3460 (136.2 in) 3385 (133.3 in) 3900 (153.5 in) M Height of blade mm 1425 (56.1 in) 1215 (47.8 in) 1425 (56.1 in) 1215 (47.8 in) 1110 (43.7 in) N Max. tilt mm 840 (33.1 in) 758 (29.9 in) 840 (33.1 in) 758 (29.9 in) 836 (32.9 in) O Max. pitch deg ± 5° ± 5° ± 5° ± 5° ± 5° P Digging depth mm 481 (18.9 in) 481 (18.9 in) 550 (21.6 in) 481 (18.9 in) 535 (21 in) Q Max. lift above ground mm 1100 (43.3 in) 1100 (43.3 in) 1190 (46.8 in) 1100 (43.3 in) 1160 (45.7 in) R Overall ength with blade** mm 5487 (216 in) 5440(214.1 in) 5878 (231.4 in) 5440(214.1 in) 5675 (223.4 in) Operating weight with blade* kg 20530 (45260.9 lb) 20300 (44753.8 lb) 21630 (47686 lb) 21400 (47178.9 lb) 22730 (50111 lb) * Includes ROPS Cab, 610 mm (24 in) shoes (915 mm (36 in) for LGP), fuel oil and operator, for unit with ROPS canopy deduct 300 kg (661.4 lb). ** With ripper raised, add 935 mm (36.8 in) to dozer length. *** Includes ROPS Cab, 610 mm (24 in) shoes (915 mm (36 in) for LGP), 10% fuel, blade lift cylinders, lubricants, coolant.
