Case 1850K - MAIN DIMENSIONS 1850 K PAT

Carefully read personal and machine SAFETY PRECAUTIONS at the beginning of this Manual
GENERALITIES1850K 0 - 7

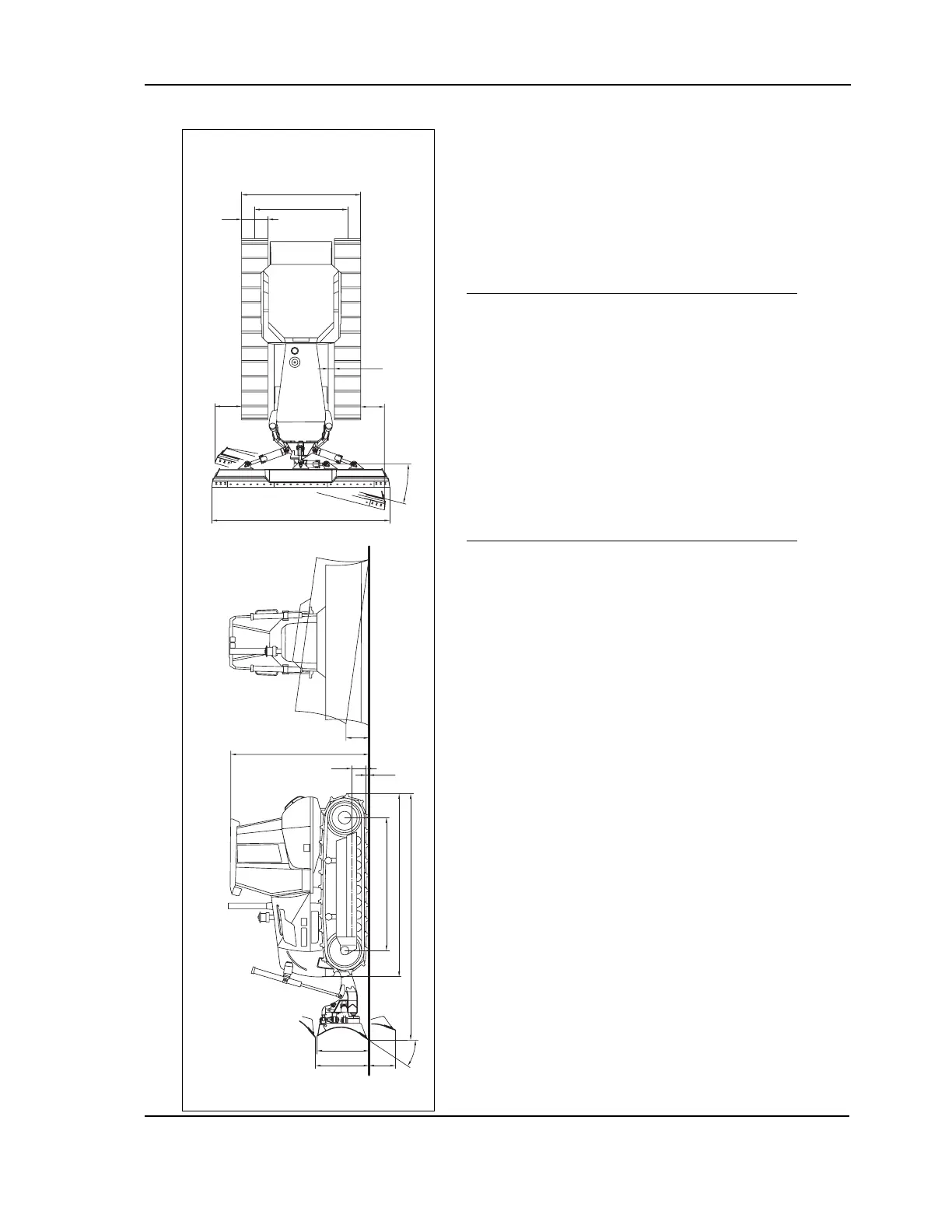

MAIN DIMENSIONS 1850K PAT
1850-M0088
TRACTOR DIMENSION LT PAT XLT PAT LGP PAT Blade dimensions 12 ft (144 in) 13.5 ft (162 in) 12 ft (144 in) 13.5 ft (162 in) 13.5 ft (162 in) Blade capacity SAE J1265 m
3
–––
A Height over cab mm 3235 (127.4 in) 3235 (127.4 in) 3235 (127.4 in) B Shoe grouser height mm 71.5 (2.8 in) 71.5 (2.8 in) 71.5 (2.8 in) C Ground clearance mm 390 (15.3 in) 390 (15.3 in) 390 (15.3 in) D Length of track on ground mm 2700 (106.2 in) 3205 (126.2 in) 3205 (126.2 in) E Overall ength with blade mm 5617 (221.1 in) 5931 (233.5 in) 5931 (233.5 in) F Max lift above ground mm 1133 (44.6 in) 1260 (49.6 in) 1260 (49.6 in) G Digging depth mm 776 (30.1 in) 800 (31.5 in) 800 (31.5 in) H Height of blade mm 1324 (52.1 in) 1324 (52.1 in) 1324 (52.1 in) I Cutting edge angle mm 33.5 (1.3 in) 33.5 (1.3 in) 33.5 (1.3 in) L Overall width with shoes 560 (22 in) mm 2460 (96.8 in) 2460 (96.8 in) –
Overall width with shoes 610 (24 in) mm 2510 (98.8 in) 2510 (98.8 in) – Overall width with shoes 762 (30 in) mm – – 2844 (112 in)
Shipping weight w blade*** kg 19089 (42084 lb) 20325 (44809 lb) 21059 (46427.1 lb) M Blade tilt (7.6 DEG) mm 480 (18.9 in) 568 (22.4 in) 480 (18.9 in) 568 (22.4 in) 568 (22.4 in) N Gauge mm 1900 (74.8 in) 1900 (74.8 in) 2082 (82 in) O Track shoes width mm 560-610 (22-24 in) 560-610 (22-24 in) 762 (30 in) P Minimum distance shoes-mainframe mm 100 (3.9 in) 100 (3.9 in) 100 (3.9 in) Q Cut reach mm 184 (7.2 in) 388 (15.3 in) 184 (7.2 in) 388 (15.3 in) 221 (8.7 in) R Cast reach mm 614 (24.2 in) 822 (32.4 in) 614 (24.2 in) 822 (32.4 in) 654 (25.7 in) S Blade angle deg 25° 25° 25° T Blade width mm 3610 (142.1 in) 4067 (160.1 in) 3610 (142.1 in) 4067 (160.1 in) 4067 (160.1 in) U Tractor length mm 4195 (165.1 in) 4340 (170.9 in) 4340 (170.9 in) Operating weight with blade* kg 20382 (44934.6 lb) 20518 (45234.6 lb) 21618 (47659.6 lb) 21754 (47959.6 lb) 22488 (49578 lb) * Includes ROPS Cab, 610 mm (24 in) shoes (762 mm (30 in) for LGP), fuel oil and operator, for unit with ROPS canopy deduct 300 kg (661.4 lb). ** With ripper raised, add 935 mm (36.8 in) to dozer length. *** Includes ROPS Cab, 610 mm (24 in) shoes (762 mm (30 in) for LGP), 10% fuel, blade lift cylinders, lubricants, coolant.
S
R
L
N
O
P
Q
T
M
A
C
B
F
H
G
I
E
U
D
