SECTION 58 - ATTACHMENT/HEADERS - CHAPTER 2
58-3

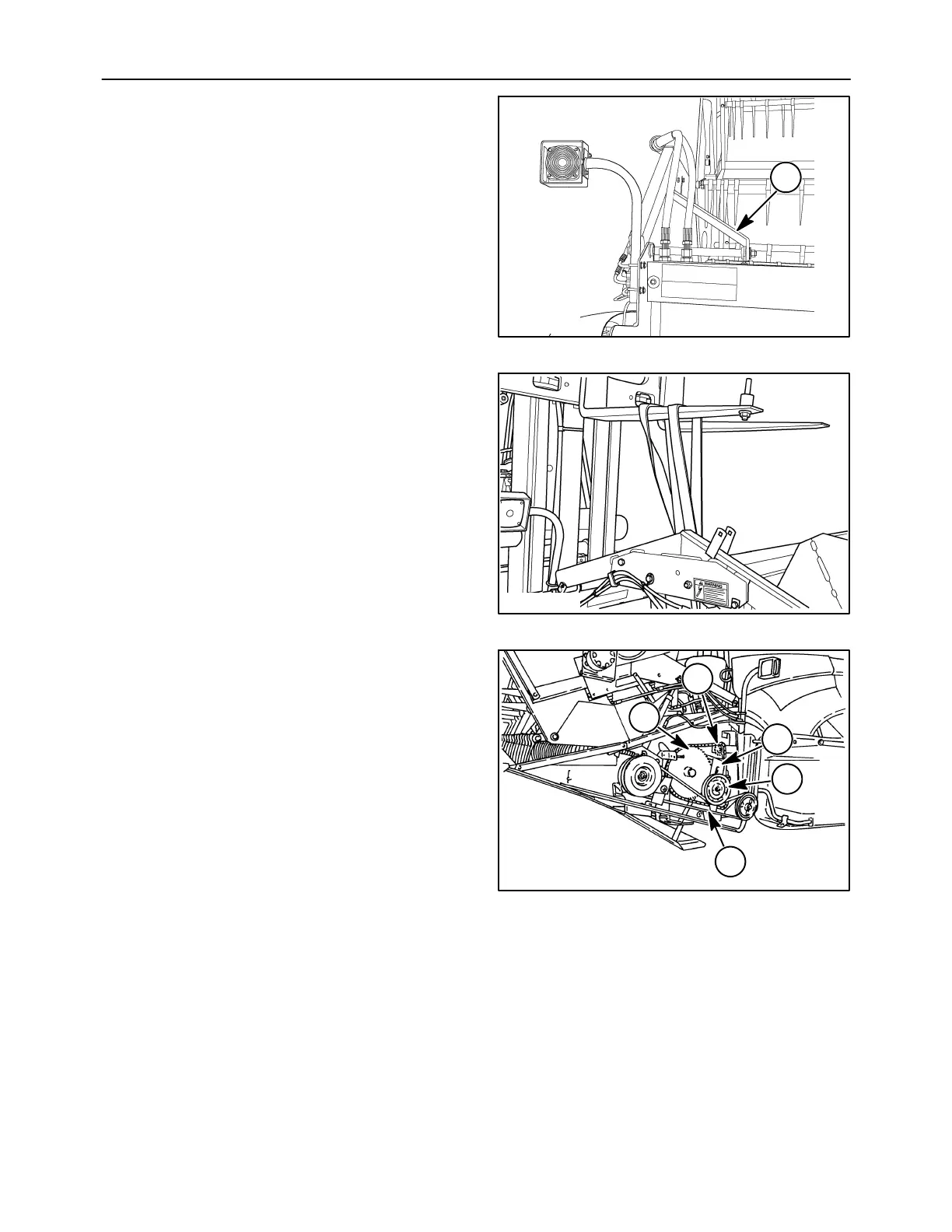

AUGER REMOVAL
1. Remove the reel arm support braces, 1, from
both ends of the head.
40006937
1
4
2. Rotate the auger until the access panel on the
right side is at the top. Support the weight of the
auger at both ends with tow motors or other
suitable lifting devices.
10007684
5
3. Remove the idler pulley, 1, and drive belt, 2.
4. Remove the idler pulley frame, 3.
5. Loosen the auger drive chain idler sprocket, 4,
and remove the drive chain. Store the chain in a
clean, dry place.
6. Remove the cap screw, lock washer and washer,
and remove sprocket, 5.
20023026
1
2
3
4
5
6
