SECTION 58 - ATTACHMENT/HEADERS - CHAPTER 2
58-4

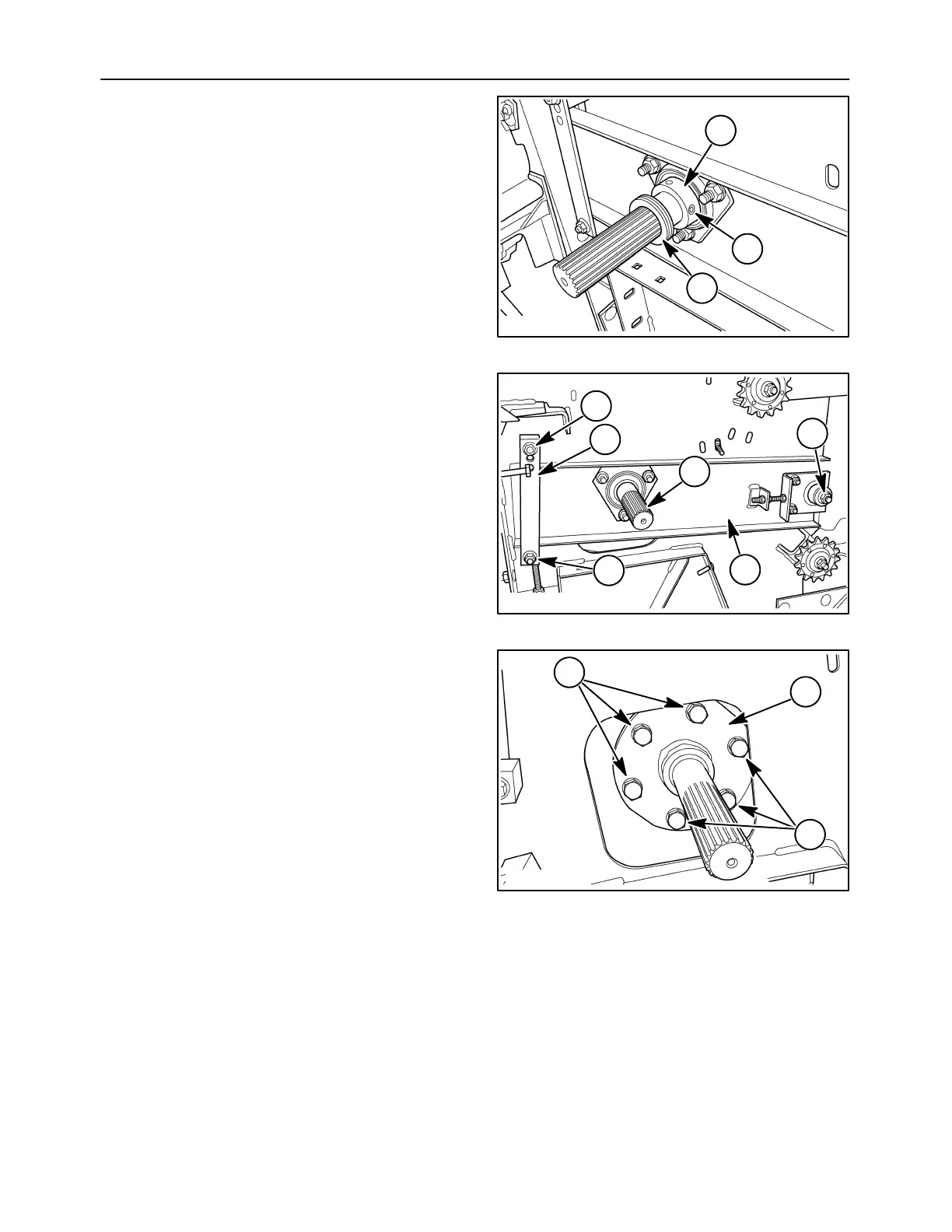

7. Remove any spacer washers, 1, from the shaft.
Loosen the set screw, 2, from the eccentric shaft
locking collar, 3. Disengage the collar from the
bearing by rotating it in the direction of rotation.
50040101
1
2
3
7
8. Remove the nuts at 1, and lift strip, 2, from the
machine. Clean the shaft, 3, of old grease and
dirt accumulations. Slide the channel bearing
assembly, 4, from the shaft. If the auger is
supported properly, the assembly should slide
from the shaft with minimal effort.
50040102
1
2
1
1
3
4
8
9. Remove six caps screws, 1, (three long, three
short) from the hub, 2. Remove the hub from the
auger.
50040103
1
1
2
9
