SECTION 58 - ATTACHMENT/HEADERS - CHAPTER 2
58-7

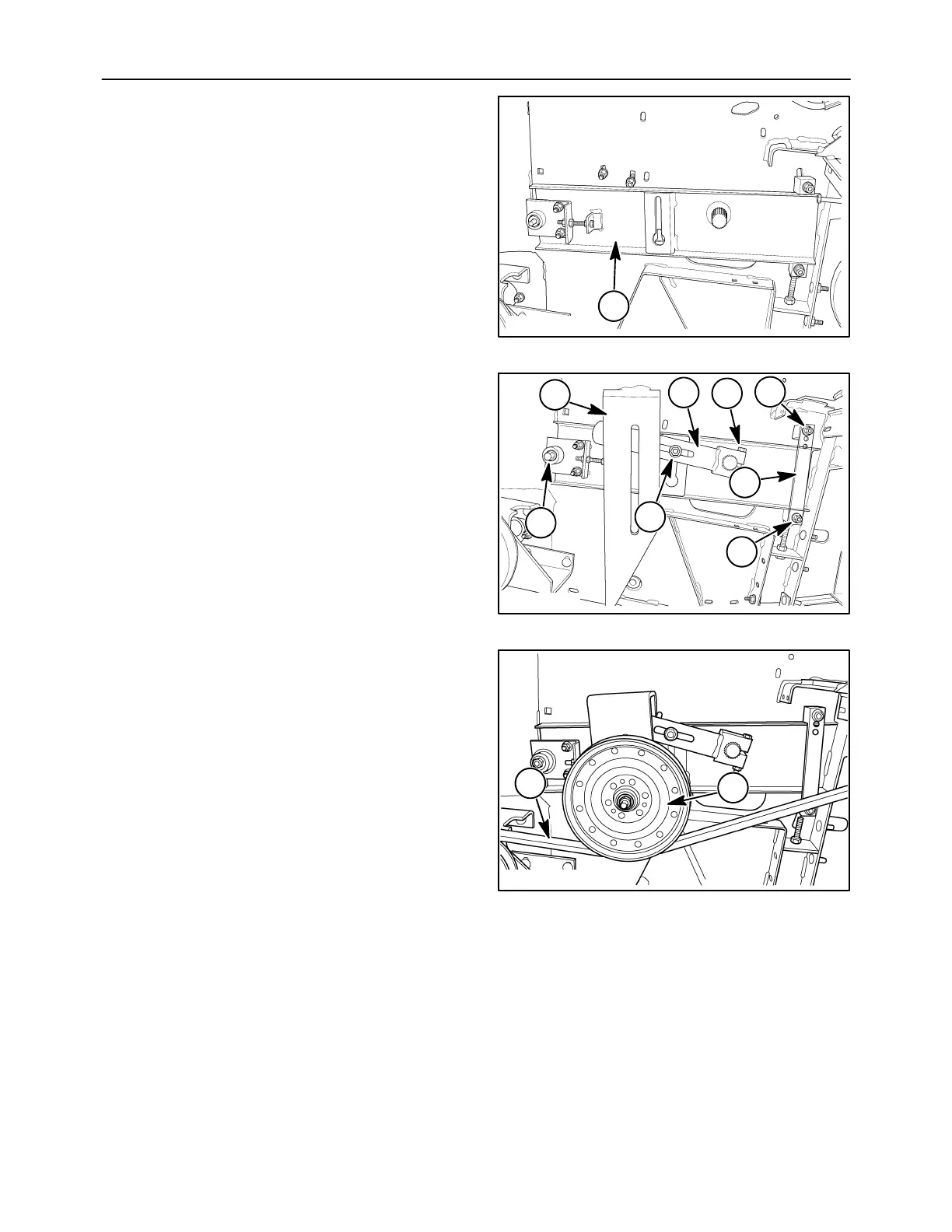

3. Position the auger as required and set the
channel, 1, into place.
10008313
1
16
4. Set the strip, 1, into position. Secure the strip and
channel to the frame with carriage bolts and nuts,
2.
5. Position the auger as required and slide the
adjusting arm, 3, onto the shaft with the match
marks aligned. Push the arm against the channel
until it is firmly seated. Tighten the clamping bolt,
4. Secure the arm into its previous position with
carriage bolt and nut, 5. Attach the idler pulley
frame, 6.
10008314
2
1
2
4
2
3
5
6
17
6. Install the drive belt, 1, and idler pulley, 2. Push
down on the idler pulley to tighten the drive belt,
and secure the pulley into place.
10007691
1
2
18
