SECTION 58 - ATTACHMENT/HEADERS - CHAPTER 2
58-14

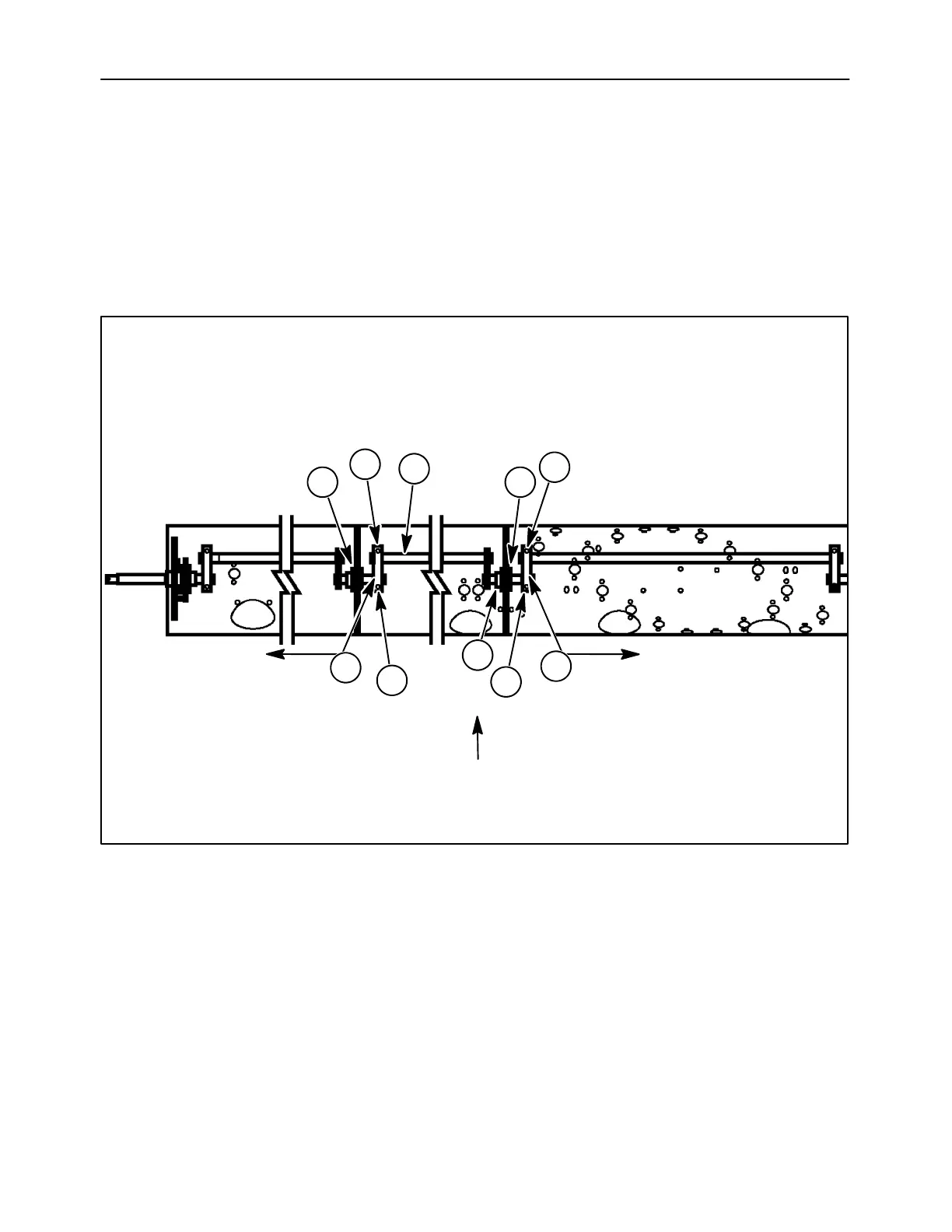

EXAMPLE: Shaft, 1, must be removed for repair.
Loosen clamping bolts, 2, and locking collar, 3. Free
bearings, 4, from the mounting plate. Move clamping
blocks, 5, in the directions shown (away from the
affected shaft). Lift the shaft from position if enough
clearance exists.
NOTE: The remaining steps assume that sufficient
clearance is available to remove and install the
affected shaft.
NOTE: Spare finger mounting tees should be
installed during shaft replacement.
7. Set the new or repaired shaft into position along
the assembly.
IMPORTANT: Timing of the shafts is extremely
important. When assembled, the shafts should be in
a straight line. If the shafts are not lined up, the
fingers may be fully extended at the rear of the auger.
If insufficient clearance exists in this position for the
fingers, damage will occur.
10008321
LEFT RIGHT
TOP
5
5
1
4 4
2
2
2
2
3
35
