SECTION 58 - ATTACHMENT/HEADERS - CHAPTER 2
58-15

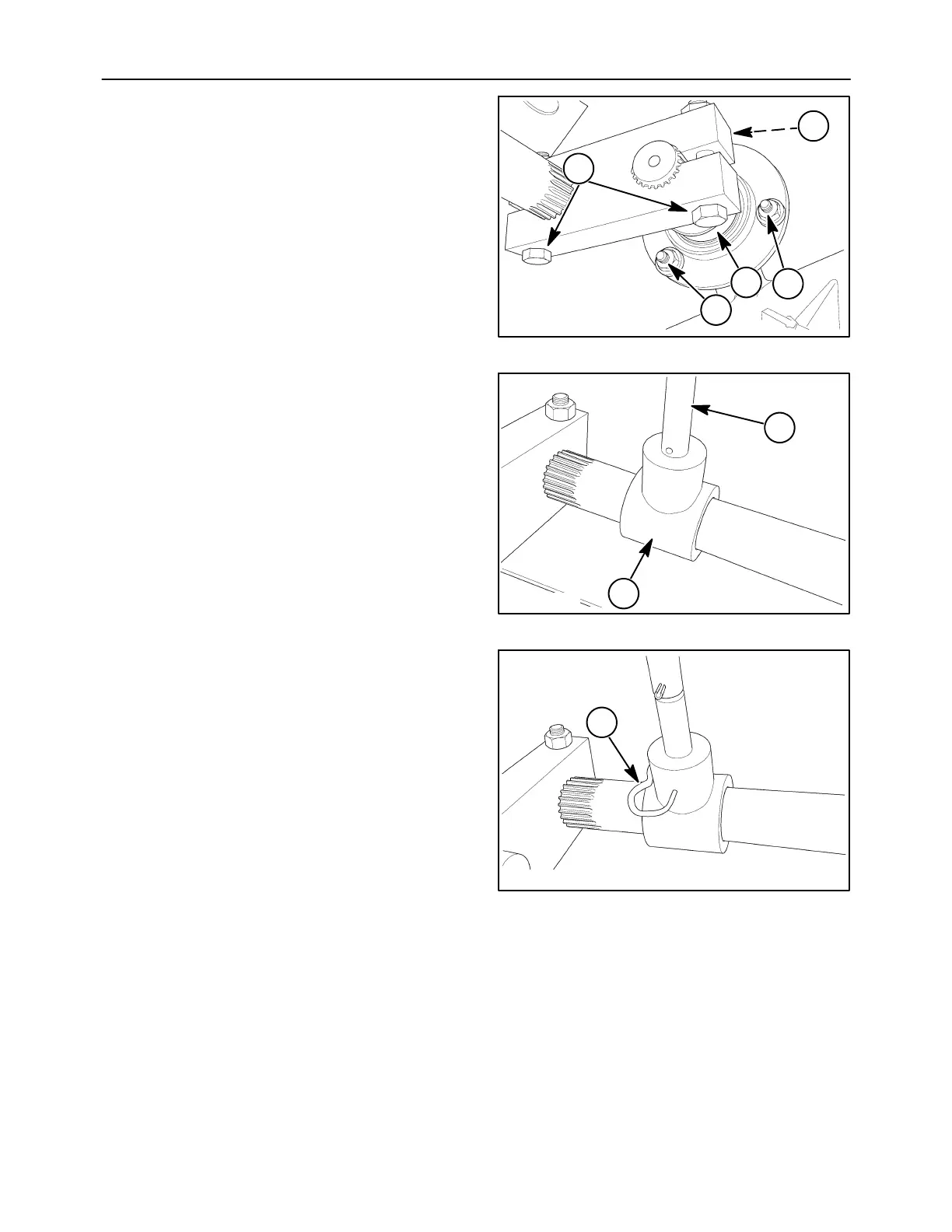

8. Move the clamping blocks in, towards the shaft,
and engage the spline ends.
9. Attach the bearing and housing to the mounting
plate using carriage bolts and lock nuts, 1.
Engage the locking collar(s), 2, by rotating it
opposite the direction of rotation. Tighten the
collar set screw(s). Tighten the clamping bolts, 3.
1
3
2
10008319
1
1
36
10. Pass a finger, 1, into the auger through the
access hole, and up through the guide. Line up
the cotter pin holes and insert the finger into the
mounting tee, 2.
10008318
2
1
37
11. Install the hairpin cotter, 1, to secure the finger
into place. Repeat for each finger removed.
12. Attach all access covers removed.
1
10008316
38
