SECTION 58 - ATTACHMENT/HEADERS - CHAPTER 2
58-17

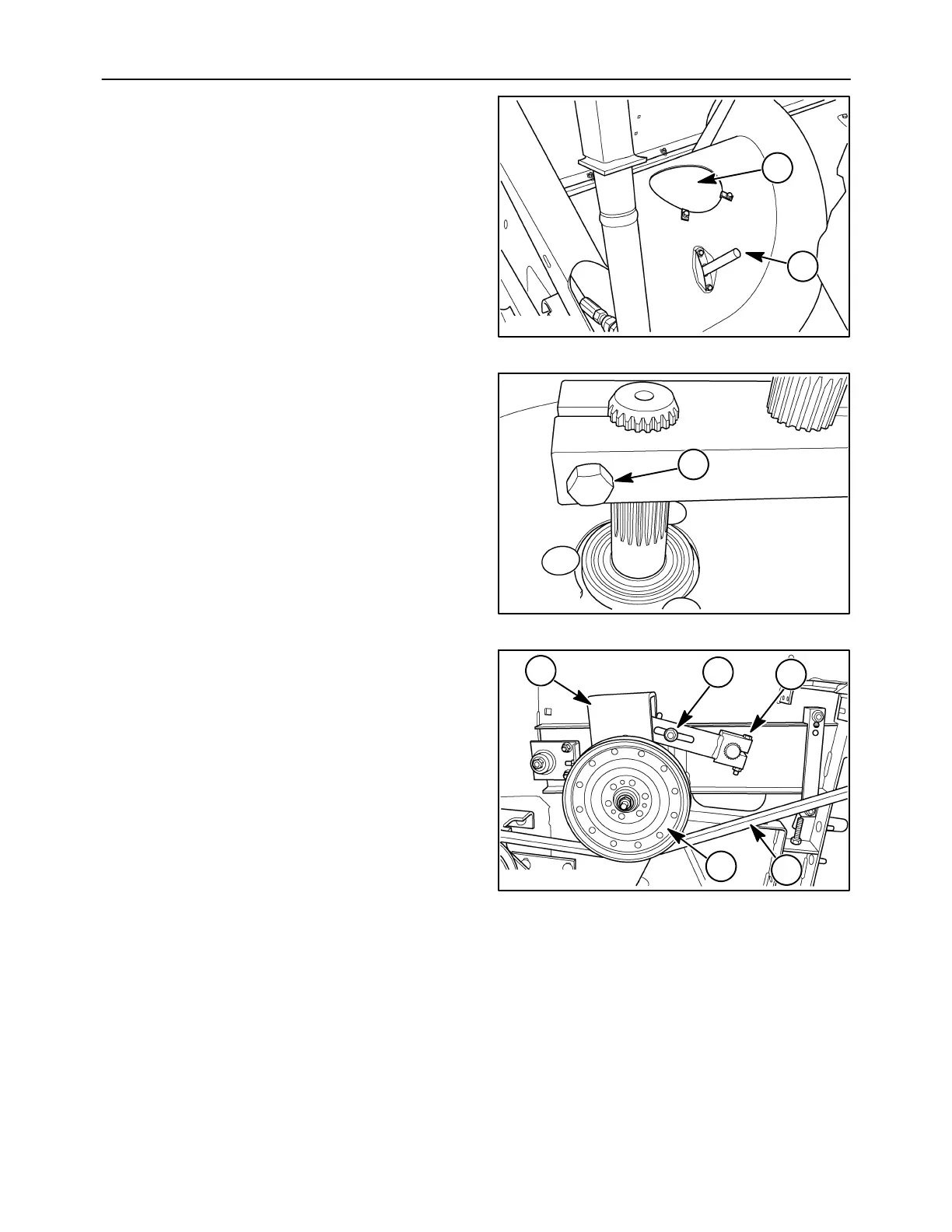

2. Remove the covers, 1, from the auger to gain
access to the finger crankshafts. Remove all
fingers, 2, from the fault area to the right end of
the auger. Clean the shaft splines to the
maximum extent possible and apply a good
quality penetrating fluid.
10007689
1
2
41
3. Loosen the clamping bolt, 1, holding the right
auger shaft in place.
1
10007690
42
NOTE: When removing nut, 4, the adjusting arm will
move up.
4. Remove idler pulley, 1, and drive belt, 2. Detach
idler pulley frame, 3. Remove nut, 4, and loosen
clamping bolt, 5.
10007691
2
1
3
4
5
43
