Engine-Engineandcrankcase

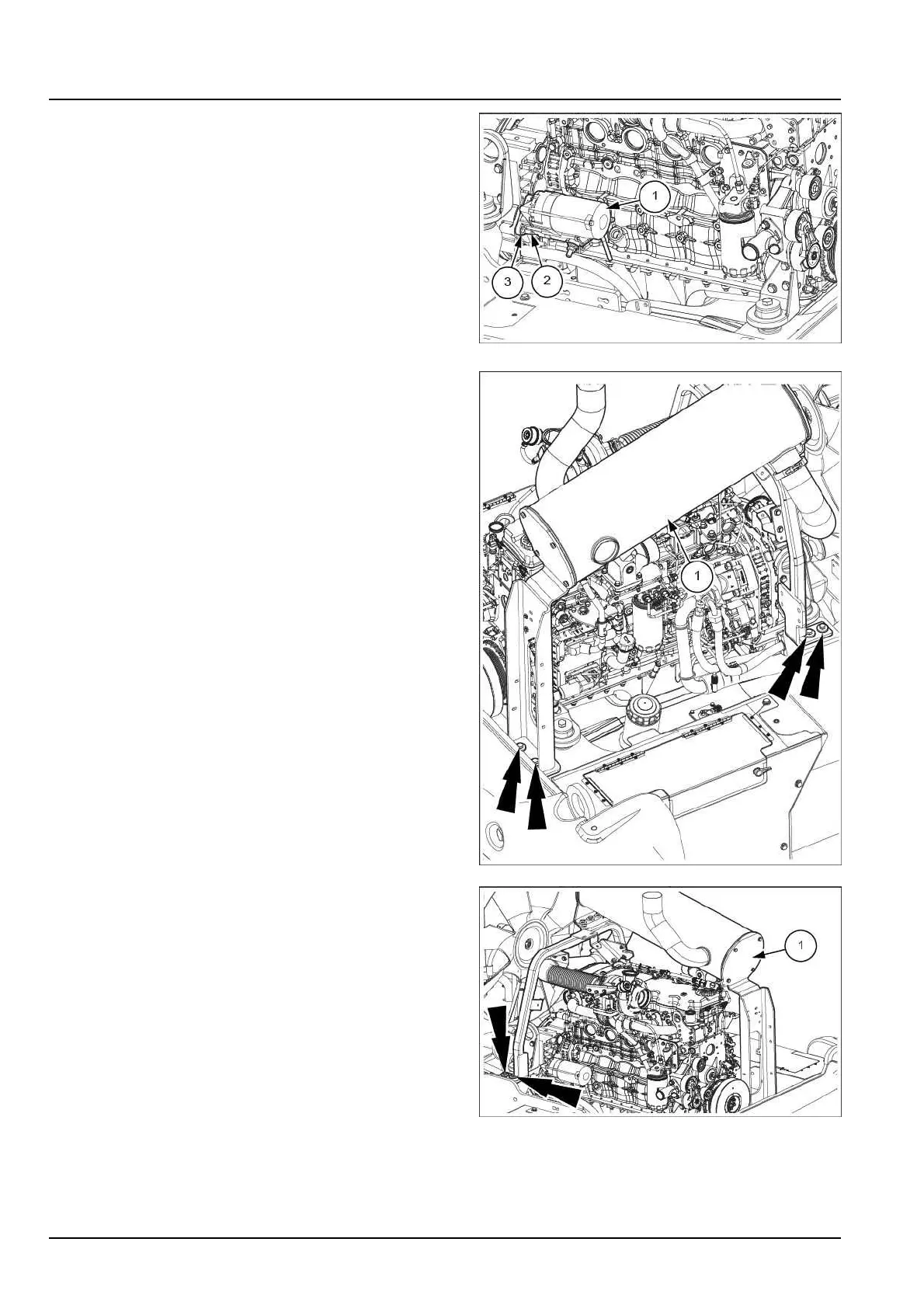

16.Mounttheenginestarter(1).Firstlyinstalltheshort
threadedportionofthethreestuds(2)intotheywheel
housing.ApplyLoctite747primertothestudsand
holes.ApplytwodropsofLOCTITE®271™toeach
holeandstudassembleandtorqueimmediatelyto19
–29N·m(14–21lbft).AllowLoctiteadhesivetocure
20minbeforeinstallingthestarter.Installtheengine
starter(1).Torquethethreestartermountingnuts(3)
to40–50N·m(29–37lbft).
LEIL17WHL0052AB14
17.Connectasuitableliftingdevicetotheexhaustsystem
assembly(1)(includingmufer,pipe,supportbrack-
ets)andcarefullyliftit.Positionandlowertheexhaust
systemassembly(1)overtherearchassisofthema-
chine.
NOTE:besureallwireharnessconnectionsandhosesare
outoftheway.
18.Installthemufersupportbracketstotherearchassis
withsixboltsandwashers(arrows).
LEIL17WHL0053BB15
LEIL17WHL0051AB16
