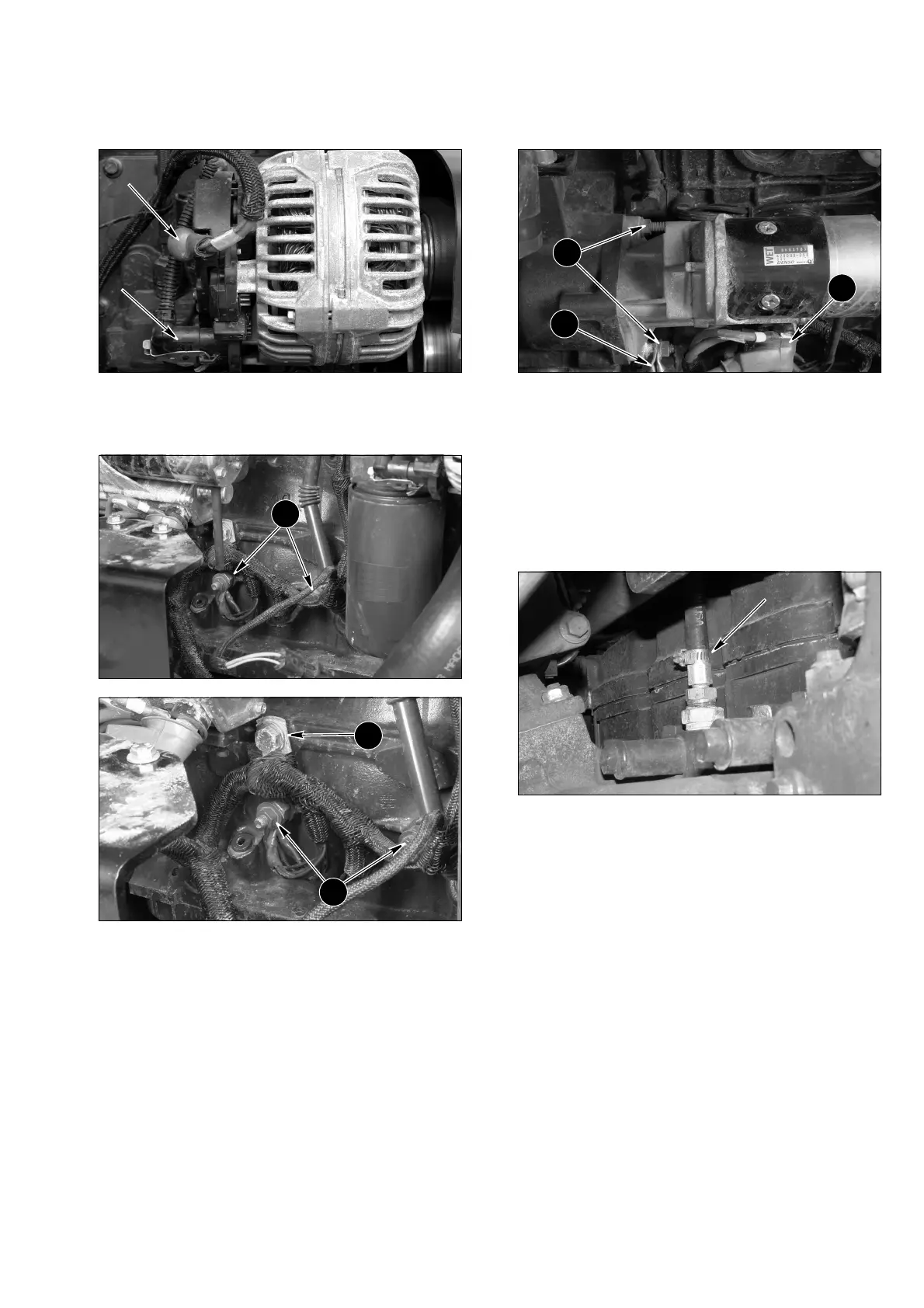

STEP 35
BD07N575-01
Tag and disconnect the wiring from the alternator.
STEP 36
BD07N580-01
BD07N582-01
Remove bolt securing wiring harness clamp (1) to the
engine. Remove ground wires (2) from the engine.
STEP 37
BD07N581-01
Tag and remove the wires from the starter solenoid
(2), remove the ground cable and ground strap (3)
from the starter. Then remove the two mounting bolts
(1).
NOTE: Move the starter cables away from the
engine, move the wiring harness away from the
engine.
STEP 38
BD07N599-01
Disconnect the engine coolant vent hose and route to
the rear of the engine.
2
2
1
2
1
3
