Case 521G - Page 49

Engine-Engineandcrankcase

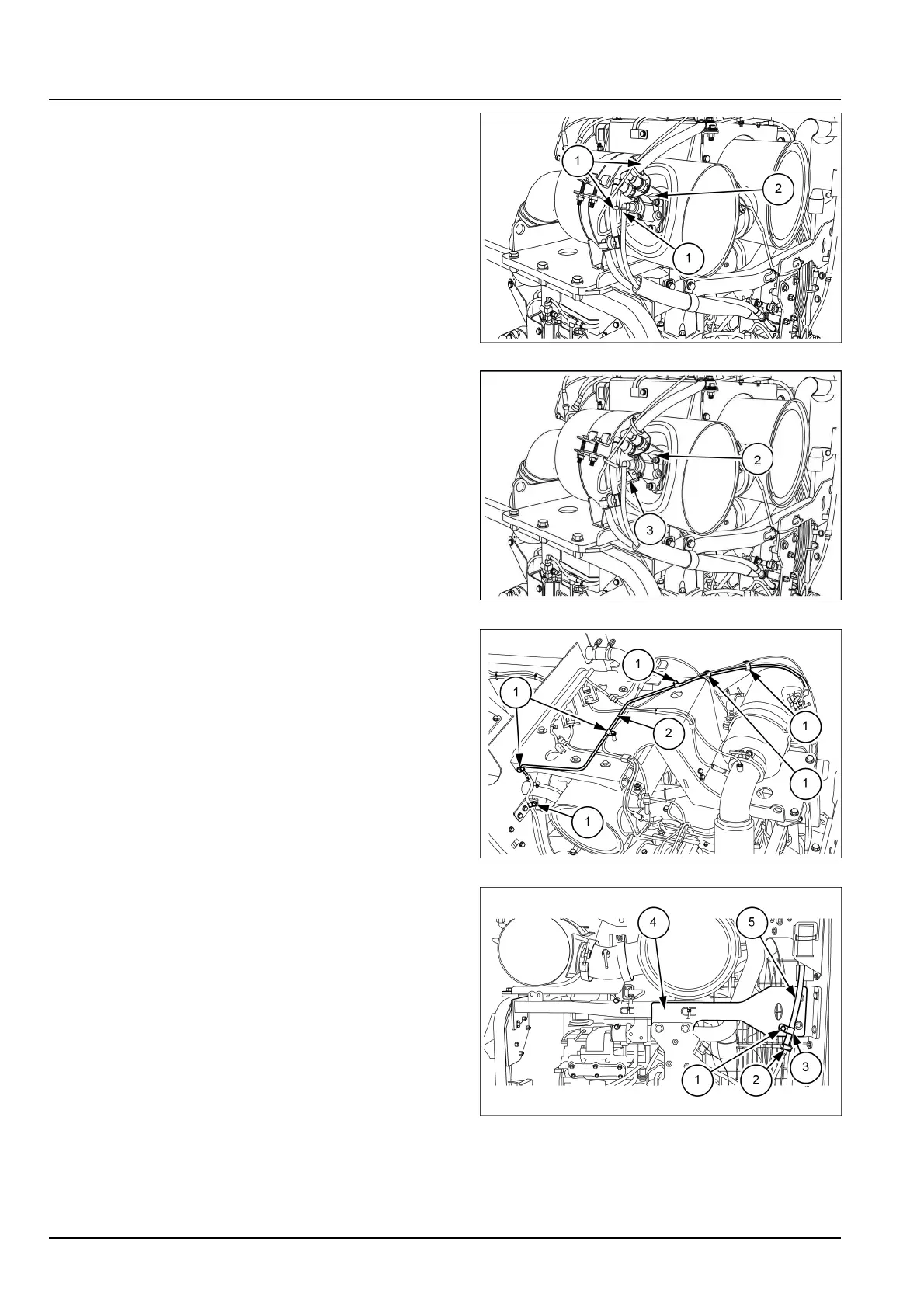

48.Draintheenginecoolant.
Disconnectthehoses(1)fromtheDosingModule(2).
LEIL15WHL0323AB44
49.Disconnecttheelectricalconnector(3)fromtheDos-
ingModule(2).
LEIL15WHL0176AA45
50.LoosenthebolttoremovetheP-clamps(1).Discon-
nectthereturncoolanthose(2)andremoveitfrom
themachine.
LEIL15WHL0270AB46
51.Loosenthebolt(1)andremovetheP-clamp(3)from
thesupplymodulesupport(4).RemovetheP-clamp
(2).Taganddisconnectthehose(5)fromtheDEF/
ADBLUE®tankventlter.
LEIL15WHL0269AB47
