1002-3

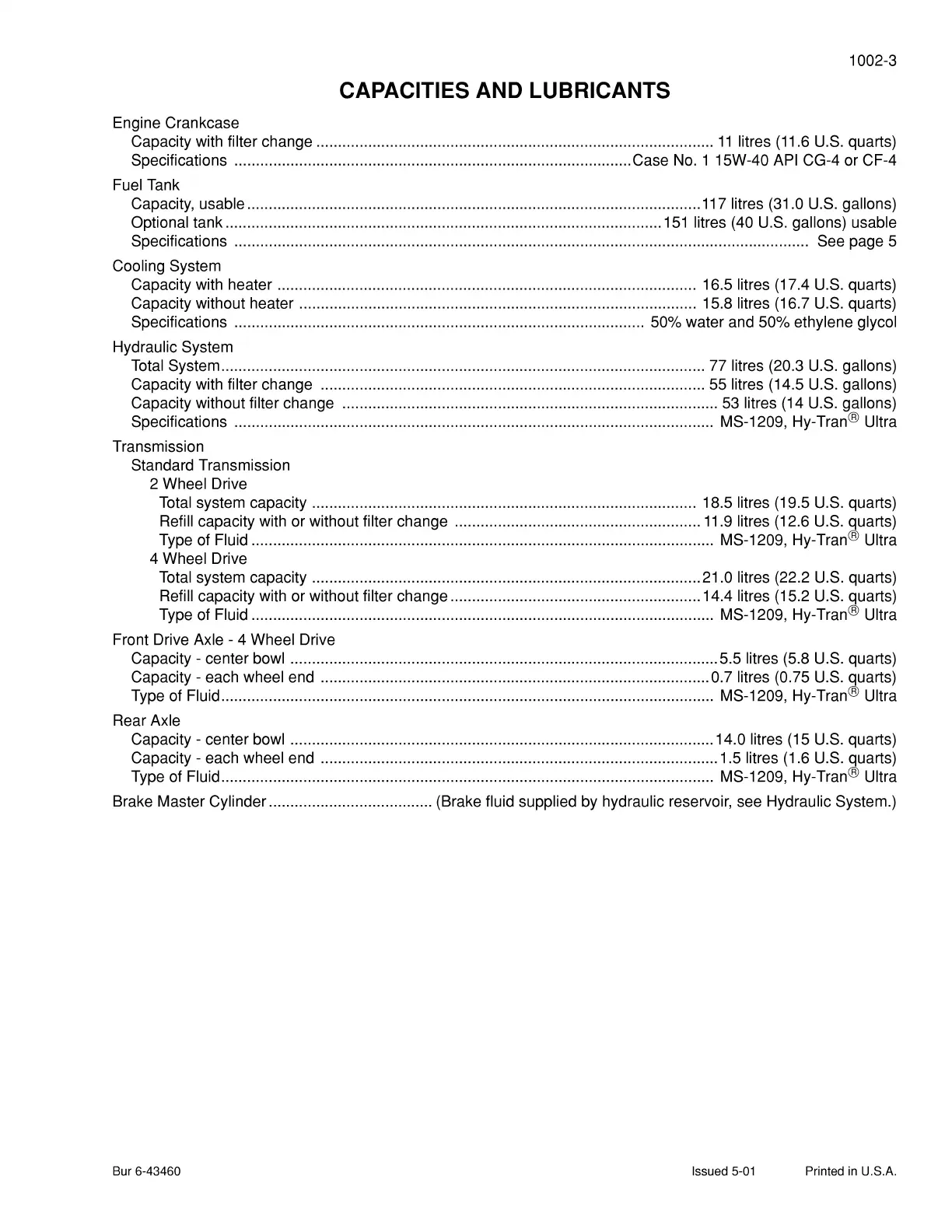

CAPACITIES AND LUBRICANTS
Engine Crankcase
Capacity with filter change ............................................................................................
11
litres (11.6 U.S. quarts)
Specifications ............................................................................................ Case No. 1 15W-40 API CG-4 or CF-4
Fuel Tank
Capacity, usable ......................................................................................................... 117 litres (31.0 U.S. gallons)
Optional tank .....................................................................................................
151
litres (40 U.S. gallons) usable
Specifications ..................................................................................................................................... See page 5
Cooling System
Capacity with heater ................................................................................................. 16.5 litres (17.4 U.S. quarts)
Capacity without heater ............................................................................................ 15.8 litres (16. 7 U.S. quarts)
Specifications ............................................................................................... 50% water and 50% ethylene glycol
Hydraulic System
Total System ................................................................................................................ 77 litres (20.3 U.S. gallons)
Capacity with filter change ......................................................................................... 55 litres (14.5 U.S. gallons)
Capacity without filter change ....................................................................................... 53 litres (14 U.S. gallons)
Specifications ............................................................................................................... MS-1209, Hy-Tran® Ultra
Transmission
Standard Transmission
2 Wheel Drive
Total system capacity ......................................................................................... 18.5 litres (19.5 U.S. quarts)
Refill capacity with or without filter change ......................................................... 11.9 litres (12.6 U.S. quarts)
Type of Fluid ........................................................................................................... MS-1209, Hy-Tran® Ultra
4 Wheel Drive
Total system capacity .......................................................................................... 21.0 litres (22.2 U.S. quarts)
Refill capacity with or without filter change .......................................................... 14.4 litres (15.2 U.S. quarts)
Type of Fluid ........................................................................................................... MS-1209, Hy-Tran® Ultra
Front Drive Axle - 4 Wheel Drive
Capacity - center bowl ................................................................................................... 5.5 litres (5.8 U.S. quarts)
Capacity - each wheel end .......................................................................................... 0.7 litres (0.75 U.S. quarts)
Type of Fluid .................................................................................................................. MS-1209, Hy-Tran® Ultra
Rear Axle
Capacity - center bowl .................................................................................................. 14.0 litres (15 U.S. quarts)
Capacity - each wheel end ............................................................................................ 1.5 litres (1.6 U.S. quarts)
Type of Fluid .................................................................................................................. MS-1209, Hy-Tran® Ultra
Brake Master Cylinder ...................................... (Brake fluid supplied by hydraulic reservoir, see Hydraulic System.)
Bur 6-43460 Issued 5-01 Printed in U.S.A.
