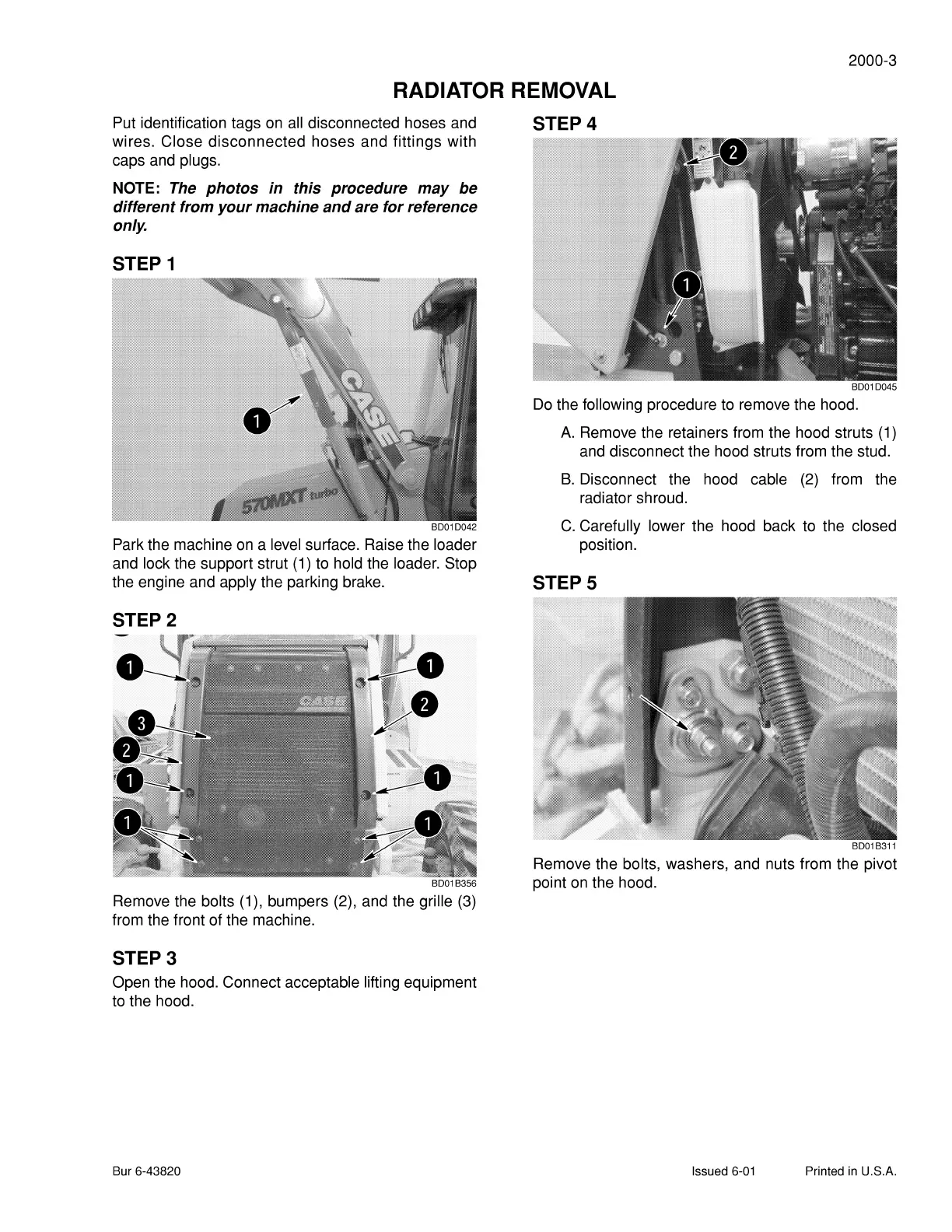

RADIATOR REMOVAL
Put identification tags
on
all disconnected hoses and
wires. Close
disconnected
hoses and fittings with
caps and plugs.
NOTE:
The
photos in this procedure may be
different from your machine and are for reference
only.
STEP 1
8D010042
Park the machine
on
a level surface. Raise the loader
and lock the support strut (1) to hold the loader. Stop
the engine and apply the parking brake.
STEP2
8D018356
Remove the bolts
(1
),
bumpers (2), and the grille (3)
from the front of the machine.
STEP3
Open the hood. Connect acceptable lifting equipment
to the hood.
Bur 6-43820
STEP4
8D010045
Do
the following procedure to remove the hood.
A.
Remove the retainers from the hood struts (1)
and disconnect the hood struts from the stud.
B.
Disconnect the hood cable (2) from the
radiator shroud.
C.
Carefully lower the hood back to the closed
position.
STEPS
8D018311
Remove the bolts, washers, and nuts from the pivot
point
on
the hood.
