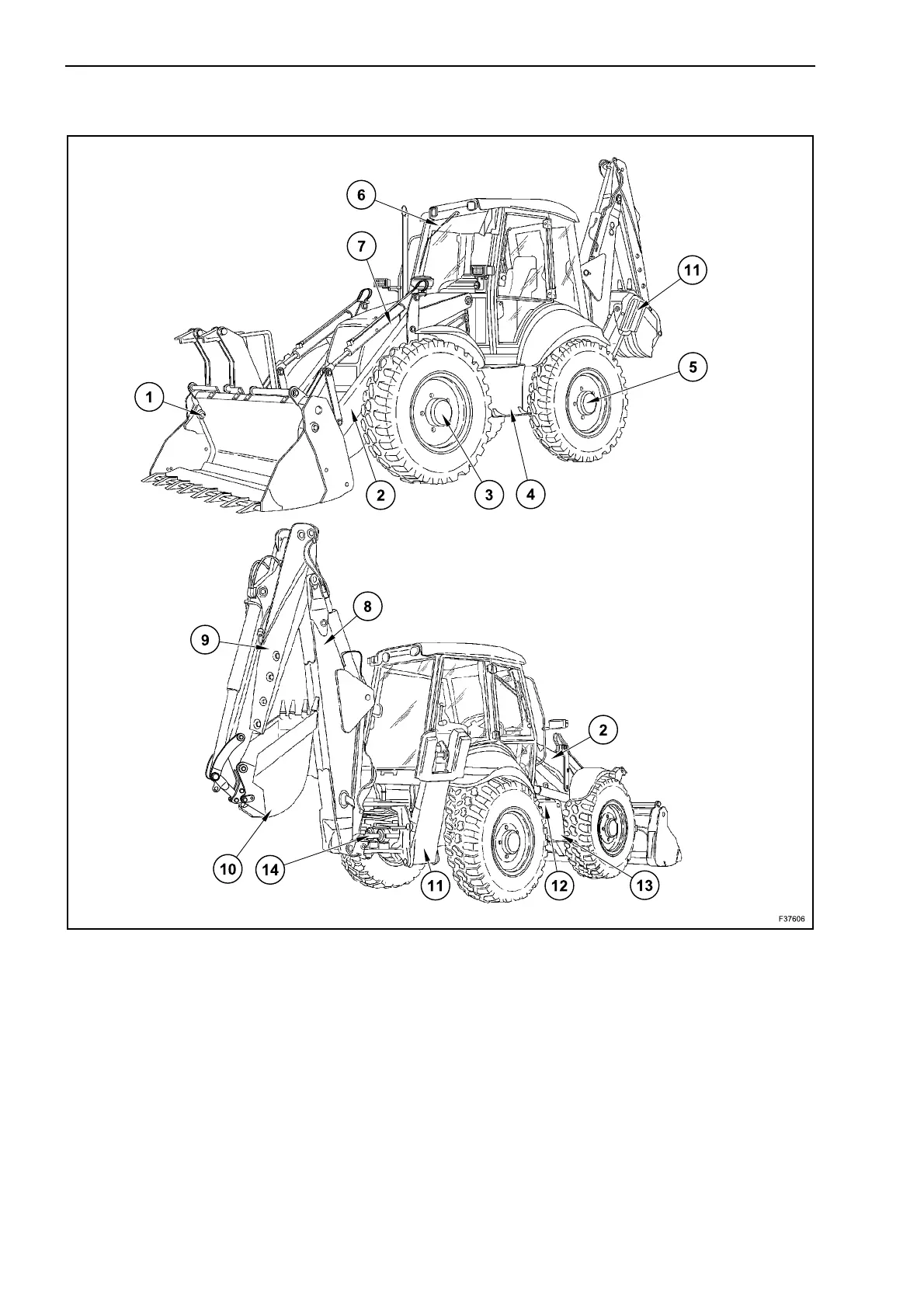

CENTER PIVOT VERSION (695SR for example)
1. Loader bucket
2. Loader arm
3. Front axle
4. Fuel tank
5. Rear axle
6. Operator’s compartment
7. Engine guard
8. Backhoe attachment boom
9. Dipper or telescopic dipper
10. Backhoe bucket
11. Stabilizers
12. Battery box
13. Hydraulic oil tank
14. Swing cylinders
