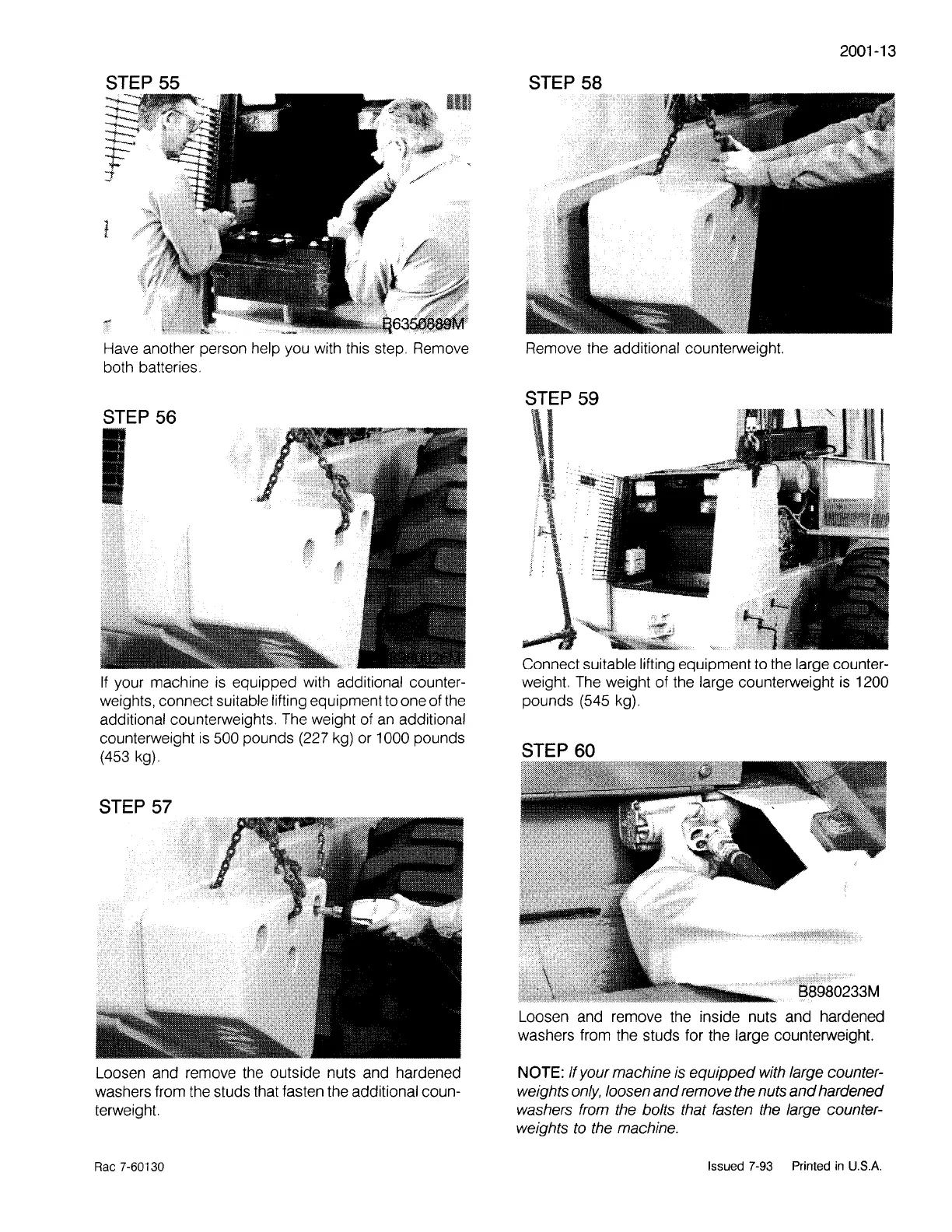

STEP 55
Have another person help you with this step. Remove
both batteries.
STEP 56
If your machine is equipped with additional counter-
weights, connect suitable lifting equipment to one of the
additional counterweights. The weight of
an additional
counterweight is 500 pounds (227 kg) or 1000 pounds
(453 kg).
STEP 57
Loosen and remove the outside nuts and hardened
washers from the studs that fasten the additional coun-
terweight.
Rae 7-60130
2001-13
STEP 58
Remove the additional counterweight.
STEP 59
I
Connect suitable lifting equipment to the large counter-
weight. The weight of the large counterweight
is 1200
pounds (545 kg).
STEP 60
Loosen and remove the inside nuts and hardened
washers from the studs for the large counterweight.
NOTE: If your machine is equipped with large counter-
weights only, loosen
and remove the nuts and hardened
washers from the bolts that fasten the large counter-
weights
to the machine.
