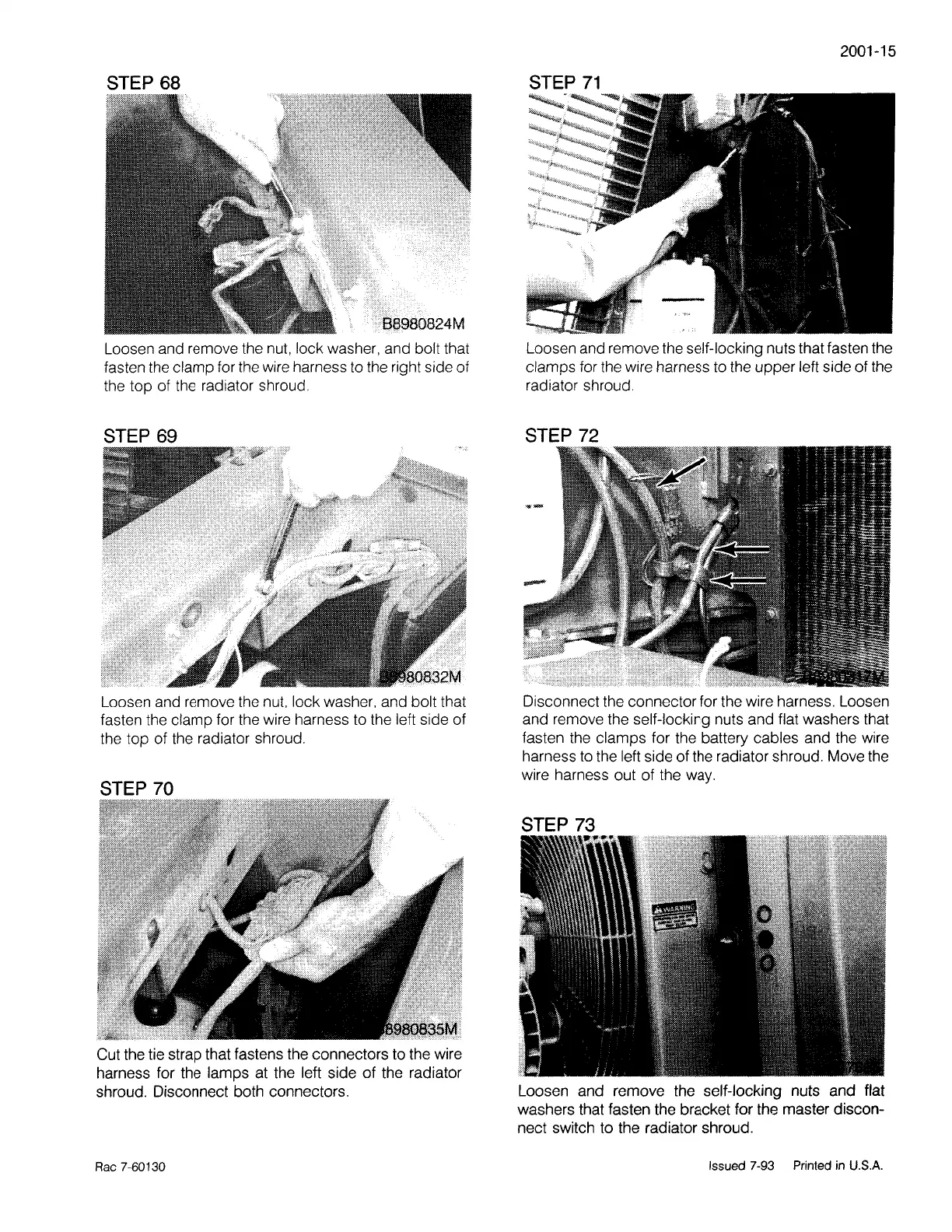

STEP 68
Loosen and remove the nut, lock washer, and bolt that
fasten the clamp for the wire harness to the right side of
the top of the radiator shroud.
STEP 69
Loosen and remove the nut, lock washer, and bolt that
fasten the clamp for the wire harness to the left side of
the top of the radiator shroud.
STEP 70
Cut the tie strap that fastens the connectors to the wire
harness for the lamps at the left side of the radiator
shroud. Disconnect both connectors.
Rae
7-60130
2001-15
STEP
71
Loosen and remove the self-locking nuts that fasten the
clamps for the wire harness to the upper left side of the
radiator shroud.
STEP 72
Disconnect the connector for the wire harness. Loosen
and remove the self-locking nuts and flat washers that
fasten the clamps for the battery cables and the wire
harness to the left side of the radiator shroud. Move the
wire harness out of the way.
STEP 73
Loosen and remove the self-locking nuts and flat
washers that fasten the bracket for the master discon-
nect switch to the radiator shroud.
