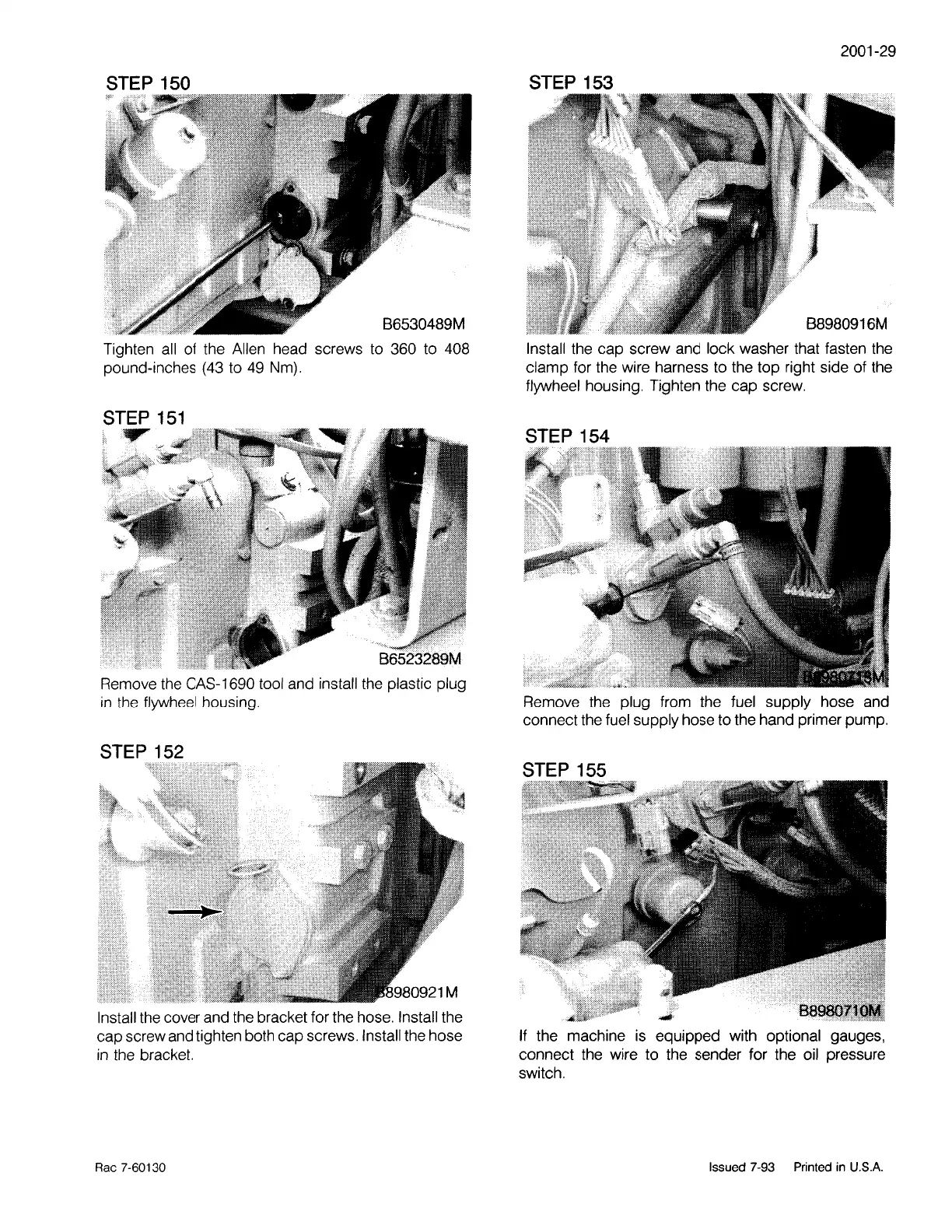

STEP 150
:::;:;:·
B6530489M
Tighten
all
of the Allen head screws to 360 to 408
pound-inches
(43
to
49
Nm).
Remove
the
CAS-1690 tool and install the plastic plug
in
the flywheel housing.
STEP 152
Install the
cover
and the bracket for the hose. Install the
cap screw and tighten both cap screws. Install the hose
in
the bracket.
Rae
7-60130
2001-29
STEP 153
B8980916M
Install the cap screw and lock washer that fasten the
clamp for the wire harness to the top right side of the
flywheel housing. Tighten the cap screw.
STEP 154
Remove the plug from the fuel supply hose and
connect the fuel supply hose to the hand primer pump.
STEP 155
If the machine
is
equipped with optional gauges,
connect the wire to the sender for the oil pressure
switch.
Issued
7-93
Printed
in
U.S.A.
