2001-30

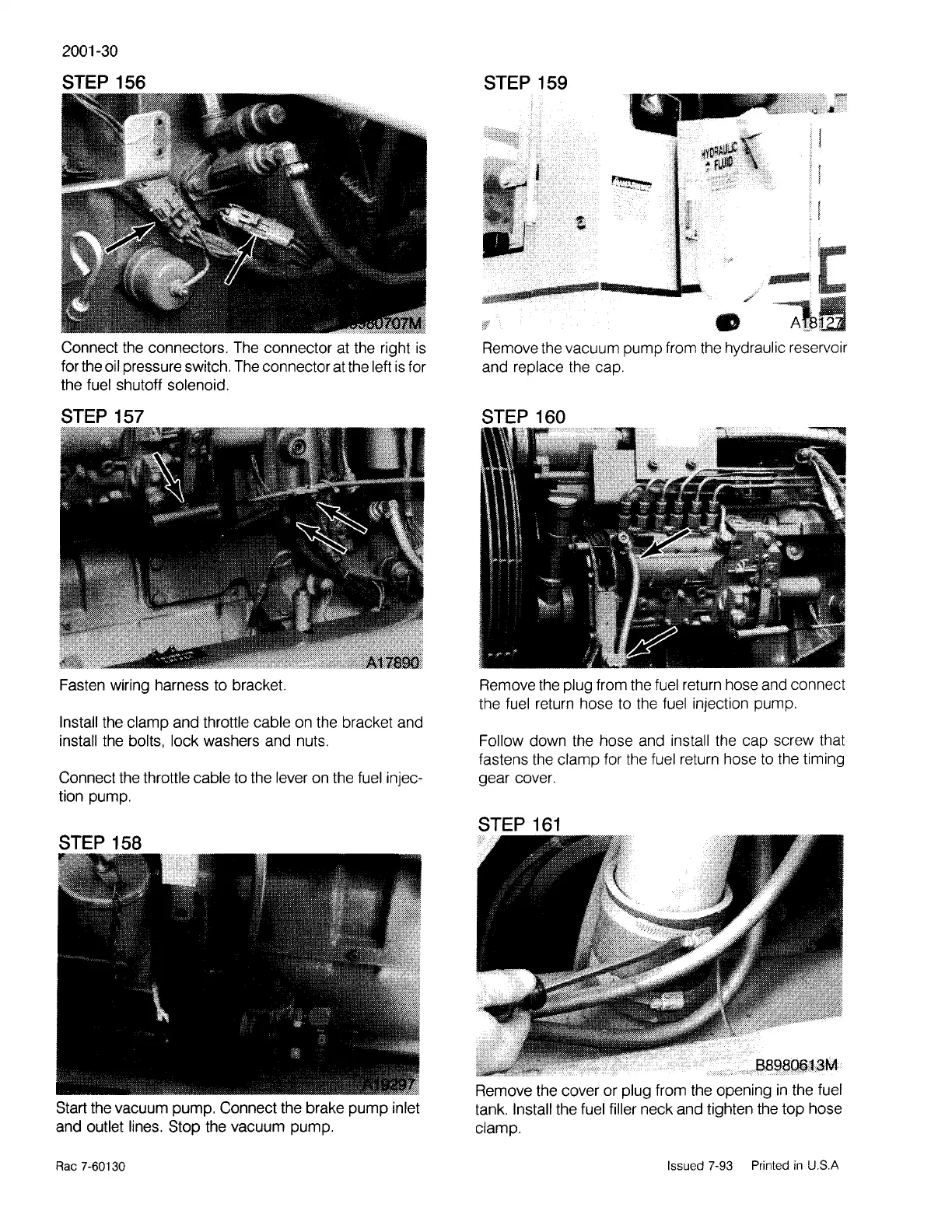

STEP 156
Connect the connectors. The connector at the right
is
for the oil pressure switch. The connector at the left
is
for
the fuel shutoff solenoid.
STEP 157
Fasten wiring harness to bracket.
Install the clamp and throttle cable on the bracket and
install the bolts, lock washers and nuts.
Connect the throttle cable to the lever on the fuel injec-
tion pump.
STEP 158
Start the vacuum pump. Connect the brake
pump
inlet
and outlet lines. Stop the vacuum pump.
Rae
7-60130
STEP 159
§ •
Remove the vacuum pump from the hydraulic reservoir
and replace the cap.
STEP 160
Remove the plug from the fuel return hose and connect
the fuel return hose to the fuel injection pump.
Follow down the hose and install the cap screw that
fastens the clamp for the fuel return hose to the timing
gear cover.
STEP
161
Remove the cover or plug from the opening
in
the fuel
tank. Install the fuel filler neck and tighten the top hose
clamp.
Issued
7-93
Printed
in
U.S.A
