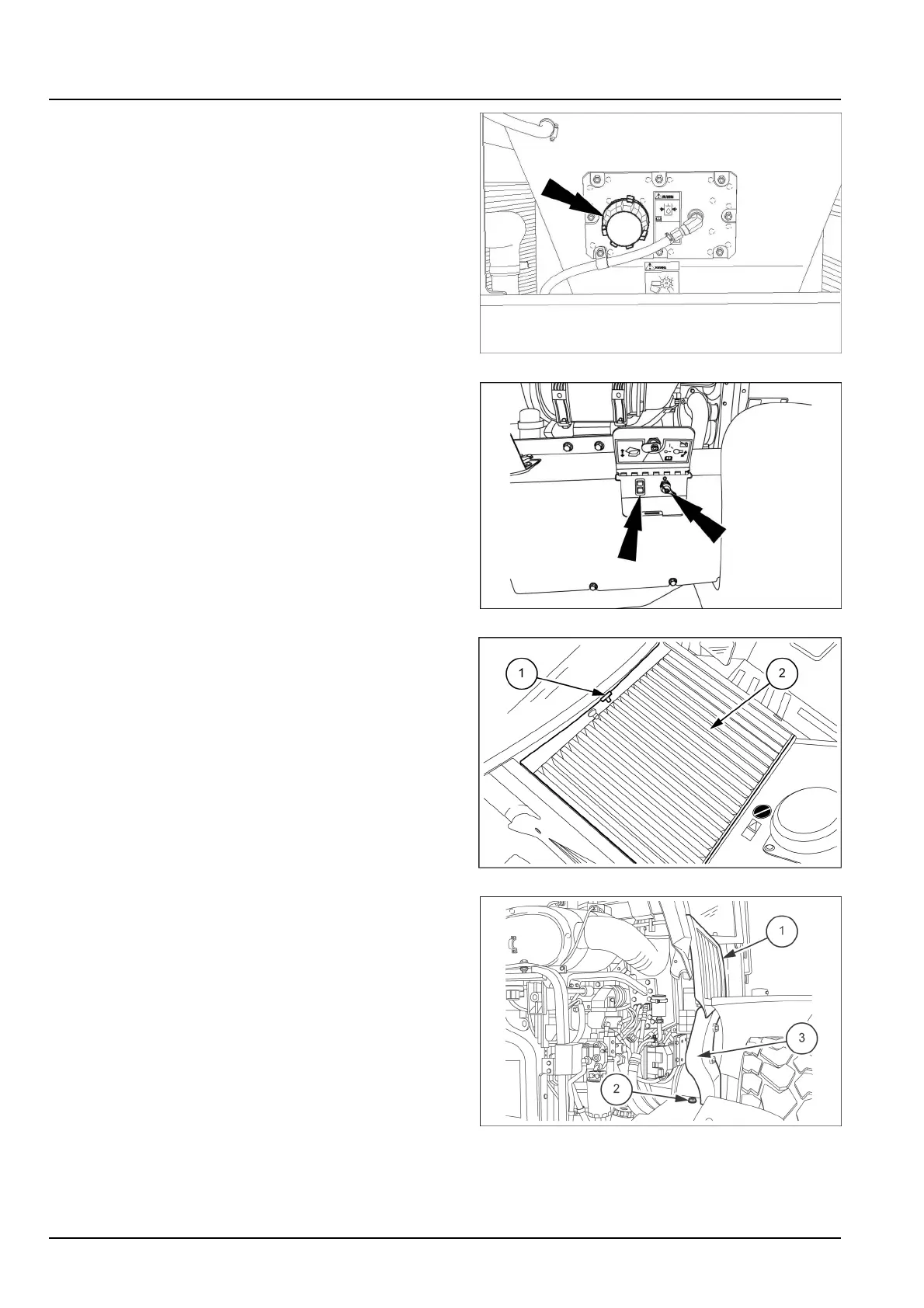

Case 821G - Page 45

Engine-Engineandcrankcase
4.Raisethegrilllocatedabovethecoolerboxjustbehind
thecab.Thenslowlyloosenthehydraulicreservoir
llercaptoreleasepressureinthereservoir.
RCPH10WHL099BAL4
5.Locatethetimeddisconnectswitchandthehoodraise
switchinthebatterybox.
Raisetheenginehoodandputthetimeddisconnect
switchintheOFFposition.
RCPH10WHL106AAH5
6.UnhooktherubberT-handle(1)andraisetheupper
panel(2).Makesurethatthesecurityleversare
blocked.
LEIL13WHL0137AB6
7.Raisebothsidepanels(1).Thenremovethethumb
screws(2)andinnerfenderpanels(3).
NOTE:right–handsideofthemachineisshown.Theop-
erationissimilarfortheleft–handside.
LEIL13WHL0612AB7
