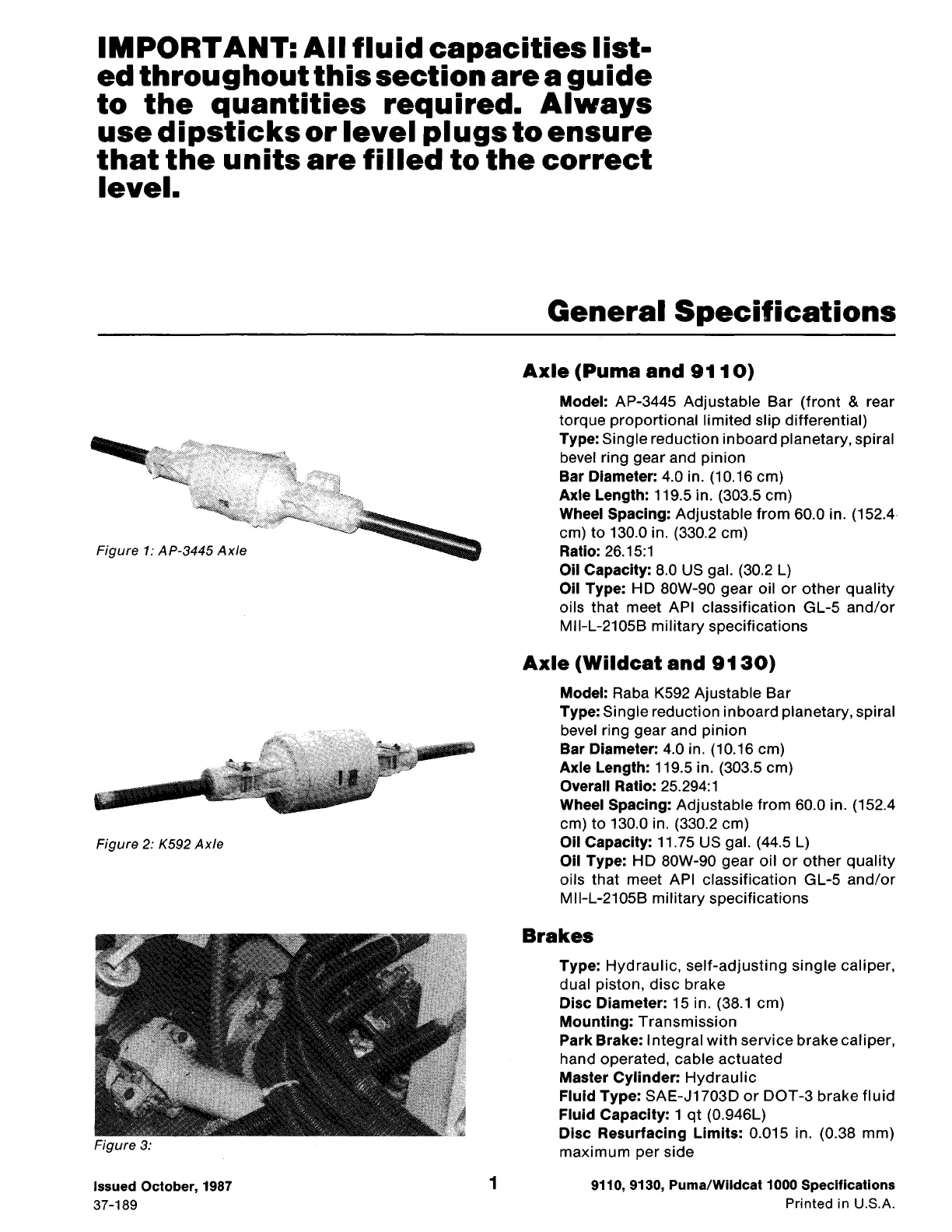

IMPORTANT: All fluid capacities list-
ed throughout this section are a guide
to the quantities required. Always
use dipsticks or level plugs to ensure
that the units are filled to the correct
level.
Figure 1: AP-3445 Axle
Figure 2: K592 Axle
Figure 3:
Issued October, 1987
37-189
1
General Specifications
Axle (Puma and 9110)
Model: AP-3445 Adjustable Bar (front & rear
torque proportional limited slip differential)
Type: Single reduction inboard planetary, spiral
bevel ring gear and pinion
Bar Diameter: 4.0 in. (10.16 cm)
Axle Length: 119.5 in. (303.5 cm)
Wheel Spacing: Adjustable from 60.0 in. (152.4
cm) to 130.0 in. (330.2 cm)
Ratio: 26.15:1
Oil Capacity: 8.0 US gal. (30.2 L)
Oil Type: HD 80W-90 gear oil or other quality
oils that meet API classification GL-5 and/or
MII-L-2105B military specifications
Axle (Wildcat and 9130)
Model: Raba K592 Ajustable Bar
Type: Single reduction inboard planetary, spiral
bevel ring gear and pinion
Bar Diameter: 4.0 in. (10.16 cm)
Axle Length: 119.5 in. (303.5 cm)
Overall Ratio: 25.294:1
Wheel Spacing: Adjustable from 60.0 in. (152.4
cm) to 130.0 in. (330.2 cm)
Oil Capacity: 11.75 US gal. (44.5 L)
Oil Type: HD 80W-90 gear oil or other quality
oils that meet API classification GL-5 and/or
MII-L-2105B military specifications
Brakes
Type: Hydraulic, self-adjusting single caliper,
dual piston, disc brake
Disc Diameter: 15 in. (38.1 cm)
Mounting: Transmission
Park Brake: Integral with service brake caliper,
hand operated, cable actuated
Master Cylinder: Hydraulic
Fluid Type: SAE-J1703D or DOT-3 brake fluid
Fluid Capacity: 1 qt (0.946L)
Disc Resurfacing Limits: 0.015 in. (0.38 mm)
maximum per side
9110, 9130, Puma/Wildcat 1000 Specifications
Printed in U.S.A.
