HEAT
EXCHANGER ---
STEERING
CYLINDER-
CHARGE PRESSURE
CONTROL VALVE -- g
- LOAD SENSE LINE
STEERING
-CYLINDER
HYDRAULIC
RESERVOIR
I
3

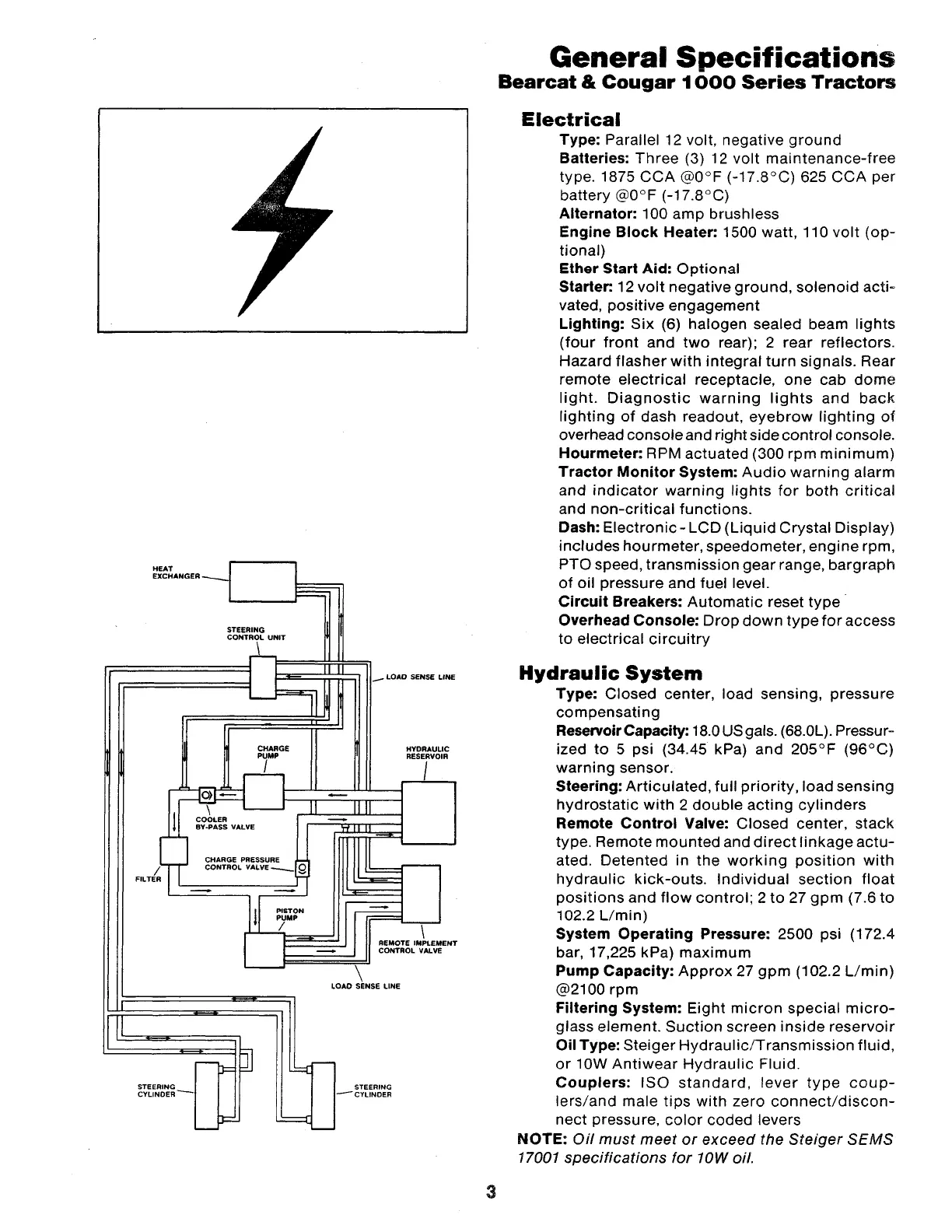

General Specifications
Bearcat & Cougar 1 000 Series Tractors
Electrical
Type: Parallel 12 volt, negative ground
Batteries: Three (3) 12 volt maintenance-free
type. 1875 CCA @0°F (-17.8°C) 625 CCA per
battery @0°F (-17.8°C)
Alternator: 100 amp brushless
Engine Block Heater: 1500 watt, 110 volt ( op-
tional)
Ether Start Aid: Optional
Starter: 12 volt negative ground, solenoid acti-
vated, positive engagement
Lighting: Six (6) halogen sealed beam lights
(four front and two rear); 2 rear reflectors.
Hazard flasher with integral turn signals. Rear
remote electrical receptacle, one cab dome
light. Diagnostic warning lights and back
lighting of dash readout, eyebrow lighting of
overhead console and right side control console.
Hourmeter: RPM actuated (300 rpm minimum)
Tractor Monitor System: Audio warning alarm
and indicator warning lights for both critical
and non-critical functions.
Dash: Electronic- LCD (Liquid Crystal Display)
includes hourmeter, speedometer, engine rpm,
PTO speed, transmission gear range, bargraph
of oil pressure and fuel level.
Circuit Breakers: Automatic reset type ·
Overhead Console: Drop down type for access
to electrical circuitry
Hydraulic System
Type: Closed center, load sensing, pressure
compensating
Reservoir Capacity: 18.0USgals. (68.0L). Pressur-
ized to 5 psi (34.45 kPa) and 205°F (96°C)
warning sensor.
Steering: Articulated, full priority, load sensing
hydrostatic with 2 double acting cylinders
Remote Control Valve: Closed center, stack
type. Remote mounted and direct linkage actu-
ated. Detented in the working position with
hydraulic kick-outs. Individual section float
positions and flow control; 2 to 27 gpm (7.6 to
102.2 L/min)
System Operating Pressure: 2500 psi (172.4
bar, 17,225 kPa) maximum
Pump Capacity: Approx 27 gpm (102.2 L/min)
@2100 rpm
Filtering System: Eight micron special micro-
glass element. Suction screen inside reservoir
Oil Type: Steiger Hydraulic/Transmission fluid,
or 10W Antiwear Hydraulic Fluid.
Couplers: ISO standard, lever type coup-
lers/and male tips with zero connect/discon-
nect pressure, color coded levers
NOTE: Oil must meet or exceed the Steiger SEMS
17001 specifications for 10W oil.
