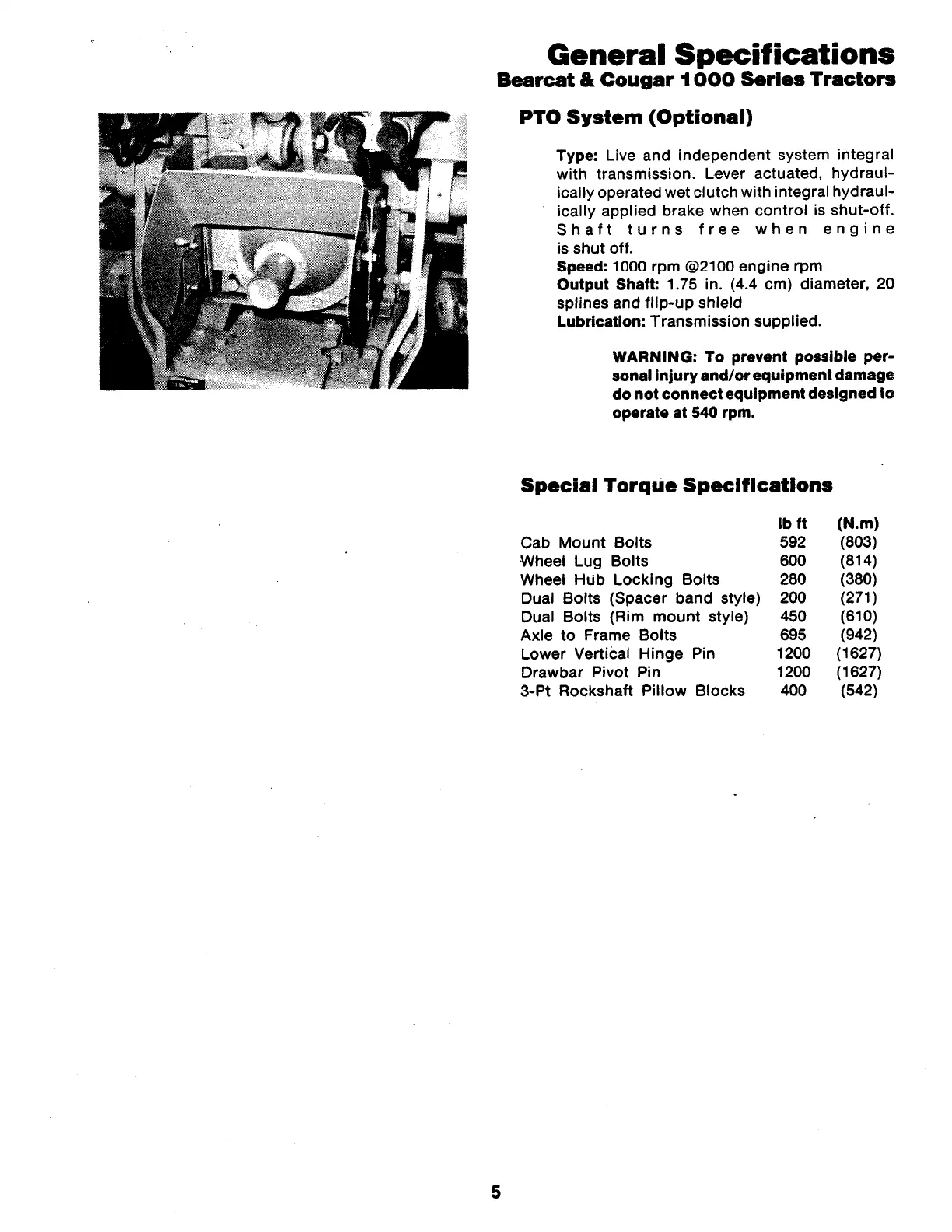

General Specifications
Bearcat & Cougar 1000 Series Tractors
5
PTO System (Optional)
Type:
Live and independent system integral
with transmission. Lever actuated, hydraul-
ically operated wet clutch with integral hydraul-
ically applied brake when control is shut-off.
Shaft turns free when engine
is shut off.
Speed:
1000 rpm @2100 engine rpm
Output Shaft:
1.75 in. (4.4 cm) diameter, 20
splines and flip-up shield
Lubrication:
Transmission supplied.
WARNING: To prevent possible per-
sonal Injury and/ or equipment damage
do not connect equipment designed
to
operate at 540 rpm.
Special Torque Specifications
Cab Mount Bolts
Wheel Lug Bolts
Wheel Hub Locking Bolts
Dual Bolts (Spacer band style)
Dual Bolts (Rim mount style)
Axle to Frame Bolts
Lower Vertical Hinge Pin
Drawbar Pivot Pin
3-Pt Rockshaft Pillow Blocks
lb ft
592
600
280
200
450
695
1200
1200
400
(N.m)
(803)
(814)
(380)
(271)
(610)
(942)
(1627)
(1627)
(542)
