Case JX80 - Engine Removal - Component Detachment; Guard and Fan Support Removal

8 SECTION 10 -- ENGINE -- CHAPTER 1
84176554 -- 03--2008

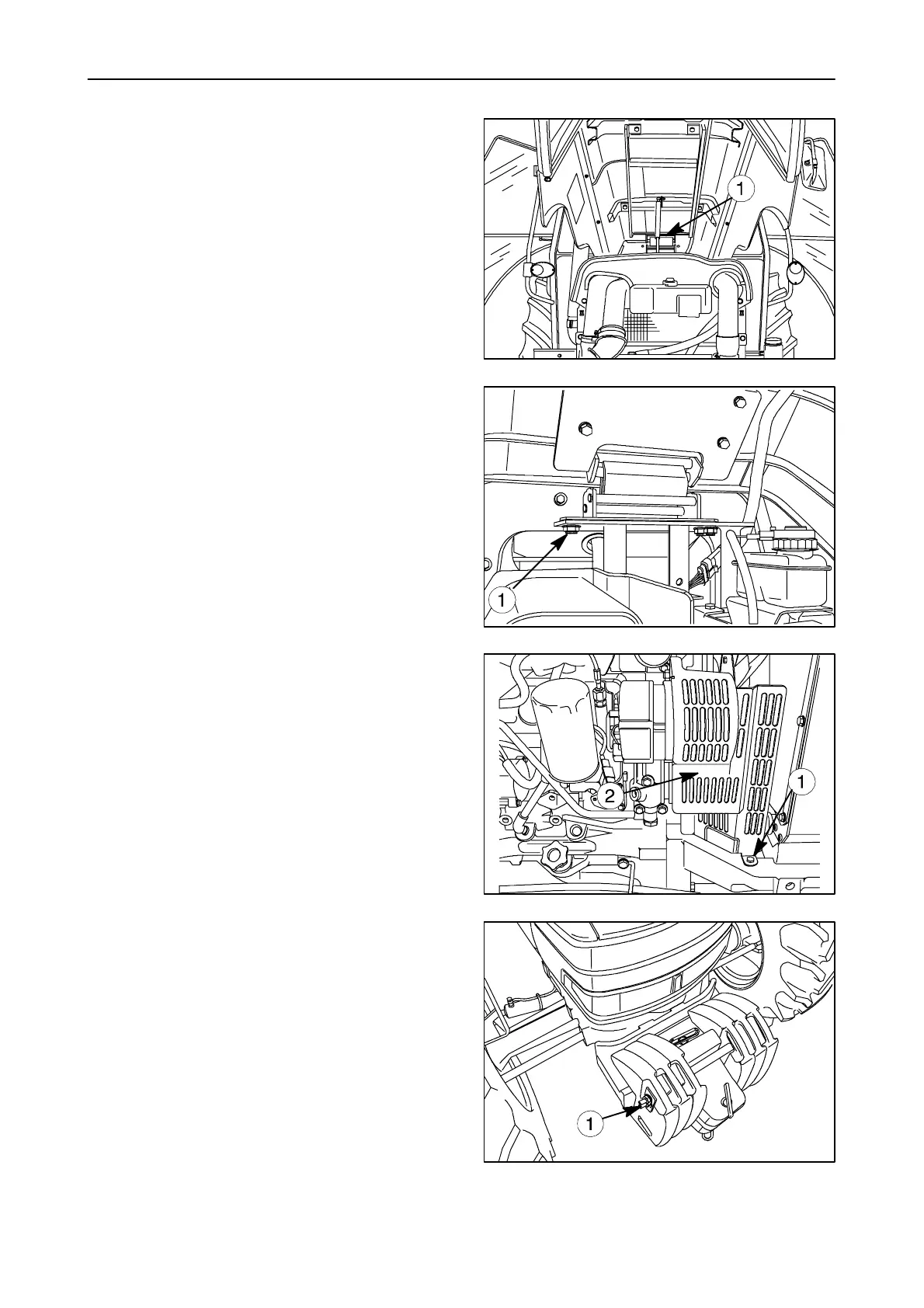

6. Detach the gas struts (1) from the bonnet.
4
7. Remove the four bonnet hinge bolts (1) and lift
the bonnet clear.
5
8. Remove the three retaining bolts (1) and the
guard (2) on the right--left hand side of the fan.
6
9. Unscrew the nut (1) from the weight retaining pin.
Remove the weights from the front support.
7
