SECTION 10 -- ENGINE -- CHAPTER 1 11
84176554 -- 03--2008

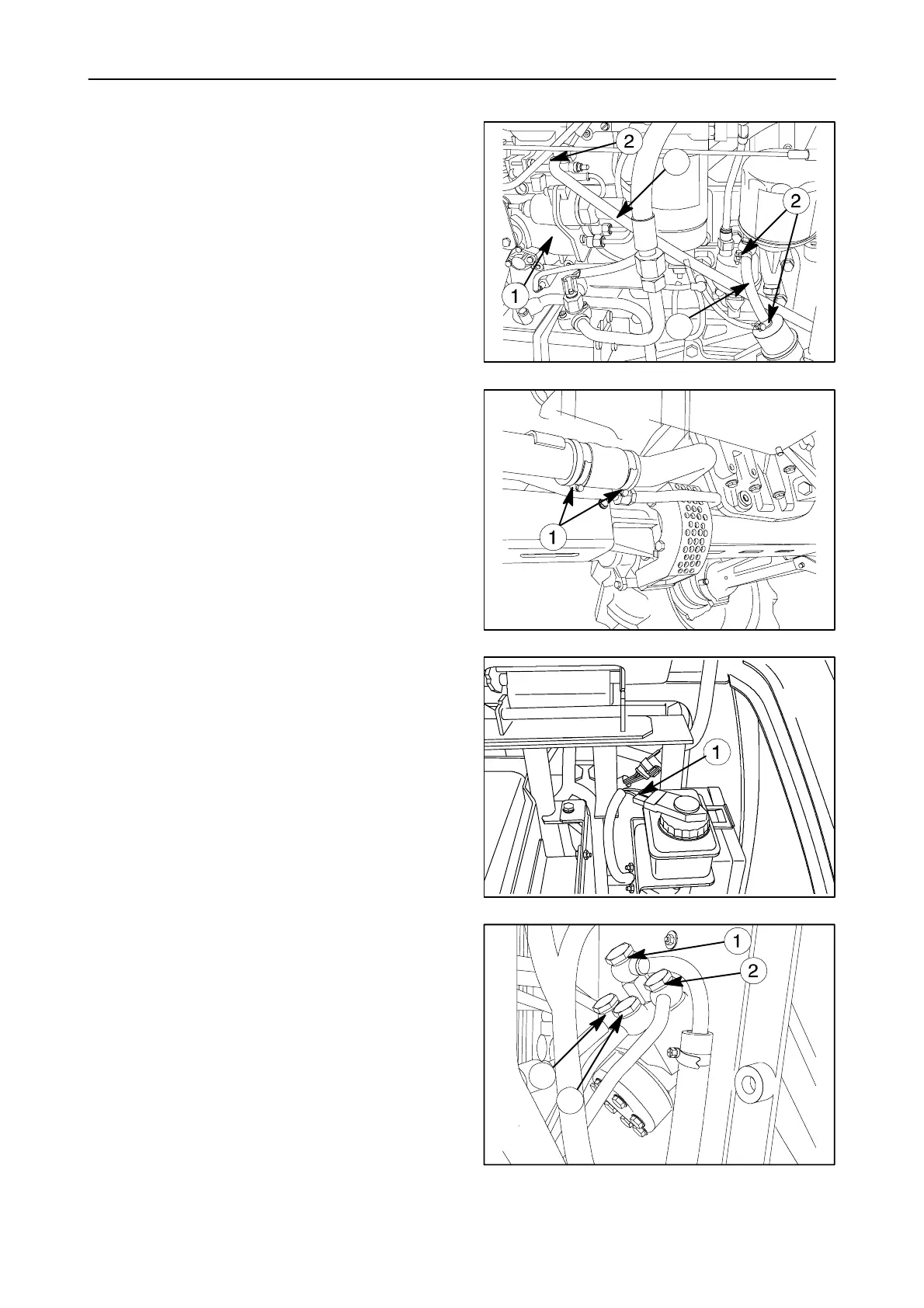

18. Extract the plastic fasteners (2) and detach the
diesel recovery pipe (3) and delivery pipe (4) to
the diesel pump (1).
3
4
16
19. Remove two metal clamps (1) and the rigid pipe
of drawing oil from the transmission housing via
lift pump.
17
20. Remove the electrical connection from the brake
fluid reservoir and take the brake fluid reservoir
(1) from the bracket.
18
21. Disconnect the steering oil delivery and return
hoses (1) and (2). Disconnect the steering
cylinder lines (3) and (4).
3
4
19
