Case JX80 - Engine Removal - Hoisting and Detaching; Attaching Lifting Chains; Detaching Engine from Front Axle; Resting Engine on Support

20 SECTION 10 -- ENGINE -- CHAPTER 1
84176554 -- 03--2008

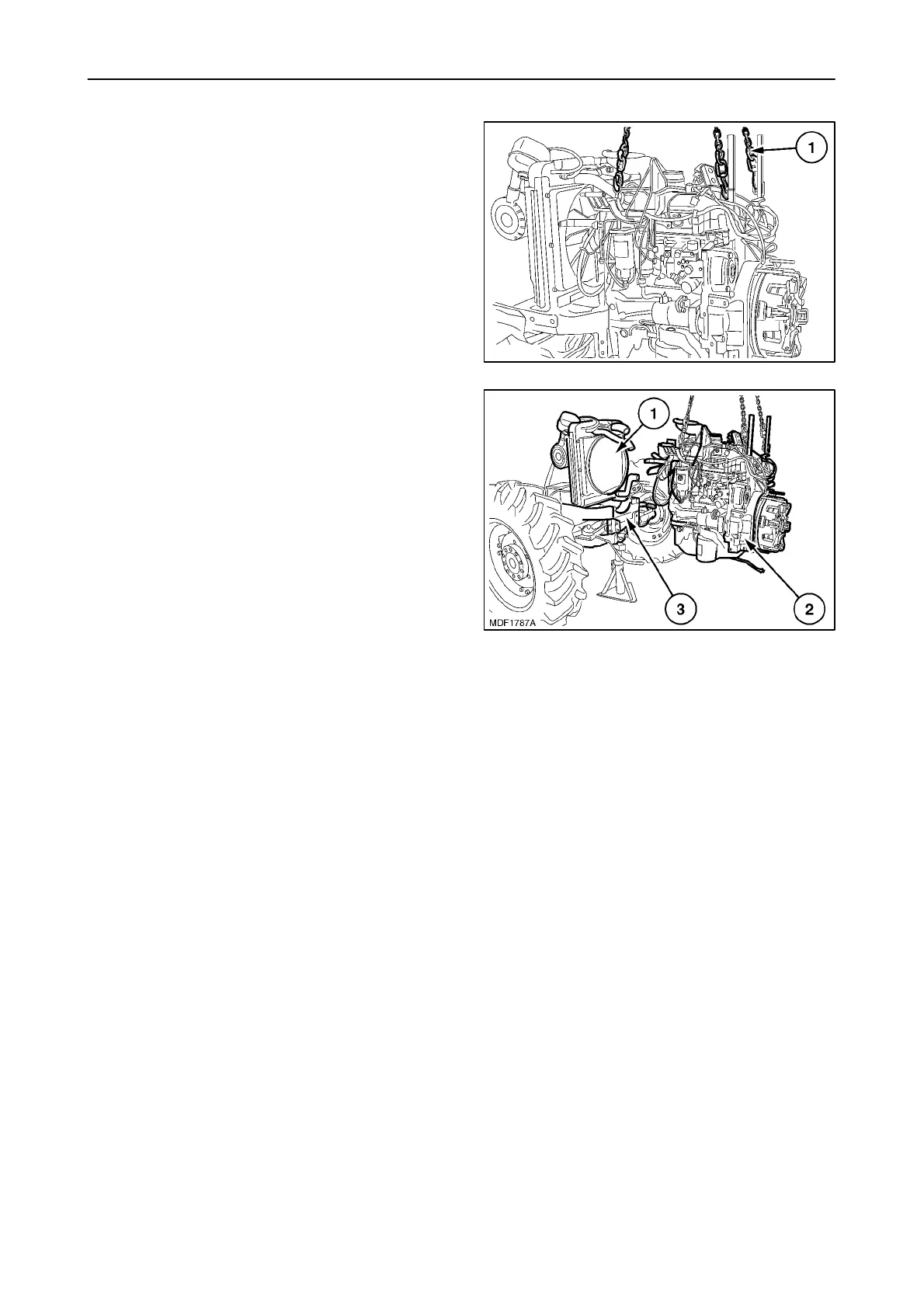

55. Insert the hooks of the lifting chains (1) in the
eyelets shown in the figure, afterwards
tensioning the chains with the hoist.
52
56. Detach the engine (2) from the front axle (3),
trying to avoid incorrect operations with the hoist
so as not to let the engine fan damage the fins of
the radiator (1), left on the axle (3).
57. Then rest the engine on a platform support.
53
