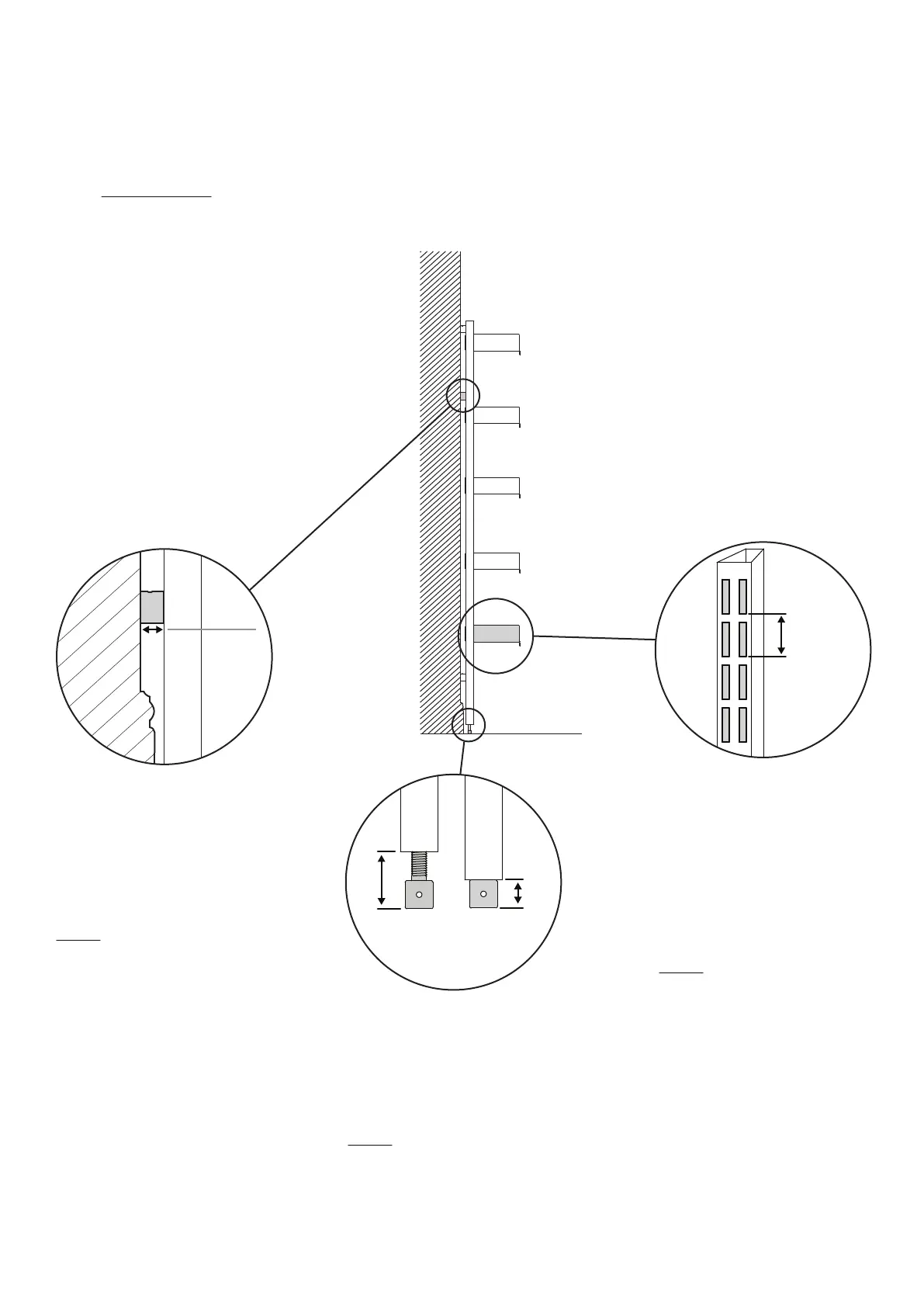

Planning
15mm
30mm
25mm
25mm
Wall mounting
The wall boss (A)
component mounts the
shelving system to the
wall whilst giving a 25mm
spacing from the wall.
Note: Mount three wall
bosses per upright (J),
these must be spaced apart
similar to the illustration above.
Allow for mains plug clearance.
Upright foot
The foot is threaded into
bottom of the upright (J),
allowing a maximum of 15mm
of adjustment.
Note: This component is optional
but advised if uncertain about the
strength of your wall substrait.
Slot system
The heights of the wall bosses (A)
and shelves (I) are dictated by
the slotted cut outs on the back
face of the uprights (J). This
allows the freedom to choose
the desired composition for
your system shelving.
Note: wall bosses (A) and
shelves (I) cannot be mounted
in the same slot location.
Before beginning the installation process, it is important to asses the area
that you wish to install the shelving system in. Illustrated below, outlines important design
features that help with adapting the shelving system to suit your space.
Please note:
Wall bosses (A) and shelves (I) cannot be mounted in the same slot location on
the upright (J).
2
