Engine-Engineandcrankcase

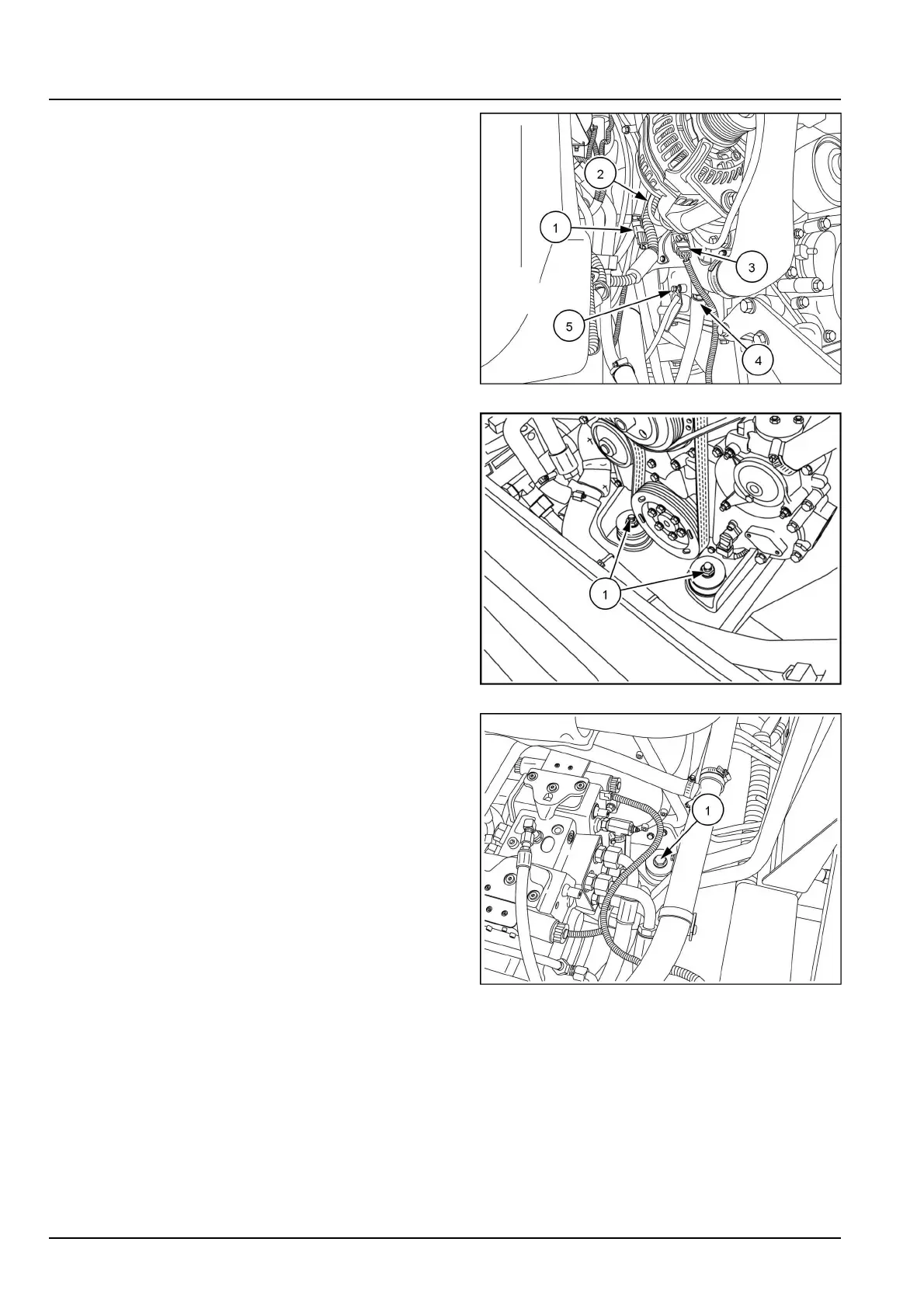

5.Installthepositivebatterycable(2)ontothestarter.
6.Connectthestarter(1).
7.Connectthealternator(3).
8.Connectthegroundcable(5)totheengine.
9.Secureallwires,harnesses,andhosesawayfromhot
components.
10.Ifyourmachinehasacabheater,connecttheheater
hose(4)tothemaleconnectorontheengine.
RAIL14SSL0778BA4
11.ApplyLOCTITE®243™tothethreadsoftheengine
mountinghardware(1).
12.Installthehardware(1),andtorqueto163-176N·m
(120-130lbft).
RAPH12SSL0050AA5
13.ApplyLOCTITE®243™tothethreadsoftheengine
mountinghardware(1).
14.Installthehardware(1),andtorqueto163-176N·m
(120-130lbft).
RAPH12SSL0077AA6
4768516124/06/2015
10.1[10.001]/18
