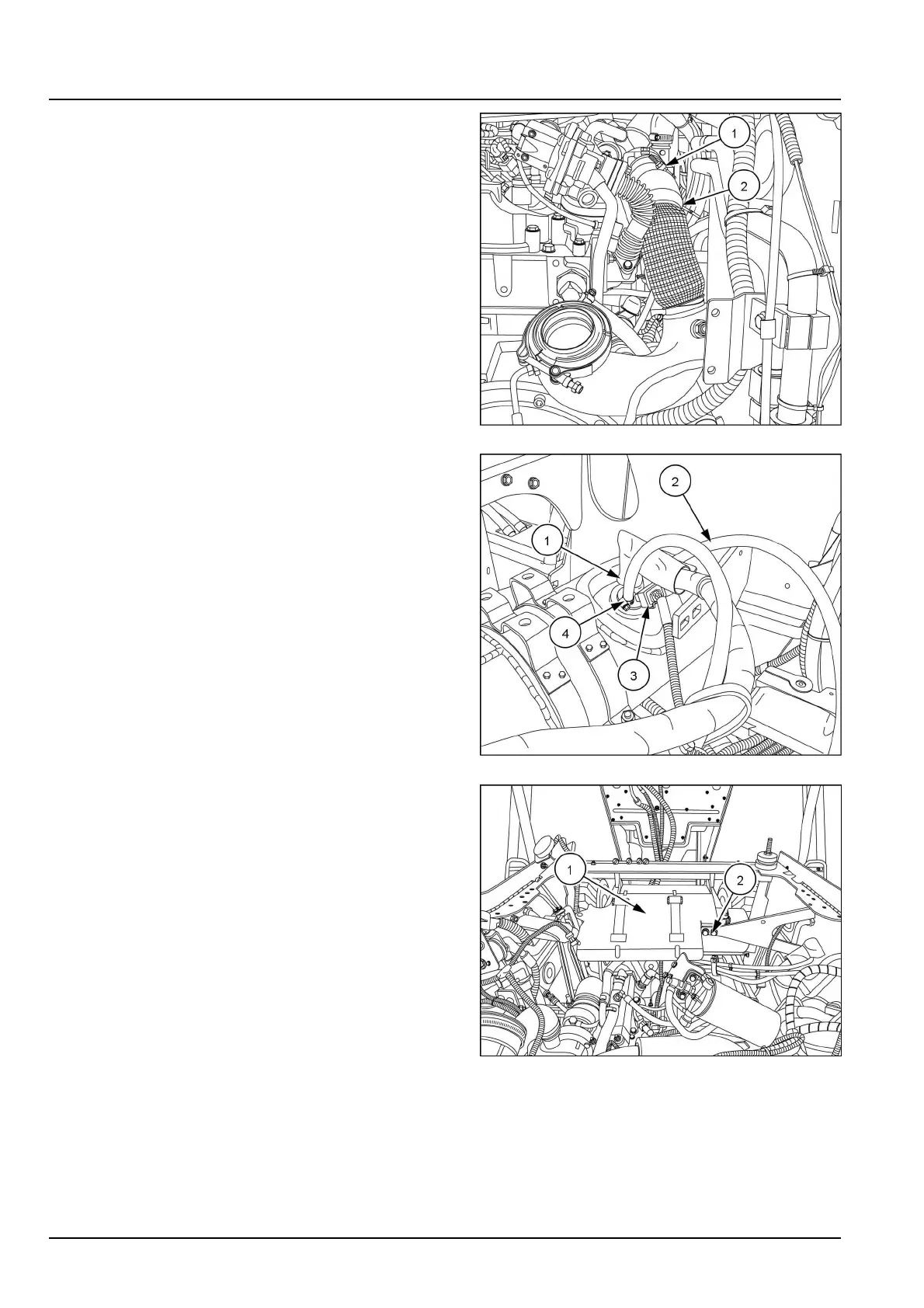

Engine-Engineandcrankcase
21.Attachtheexhausttube(2)totheexhaustmanifold.
Torquetheclamp(1)to11-15N·m(97-133lbin).
RAIL14SSL0784BA11
22.Placethedieseloxidationcatalyst(DOC)muferin
position.
23.Connecttheinjector(4).
24.Connectthedieselexhaustuid(DEF)hose(2).
25.Connecttheleftcoolantline(1)andrightcoolantline
(3).
RAIL14SSL0857BA12
26.Attachthemufermountingbracket(1)tothechassis.
Torquetheboltsto27-37N·m(20-27lbft).
27.Attachthecablesupportbracket(2)tothemufer
mountingbracket(1).
RAIL14SSL0844BA13
