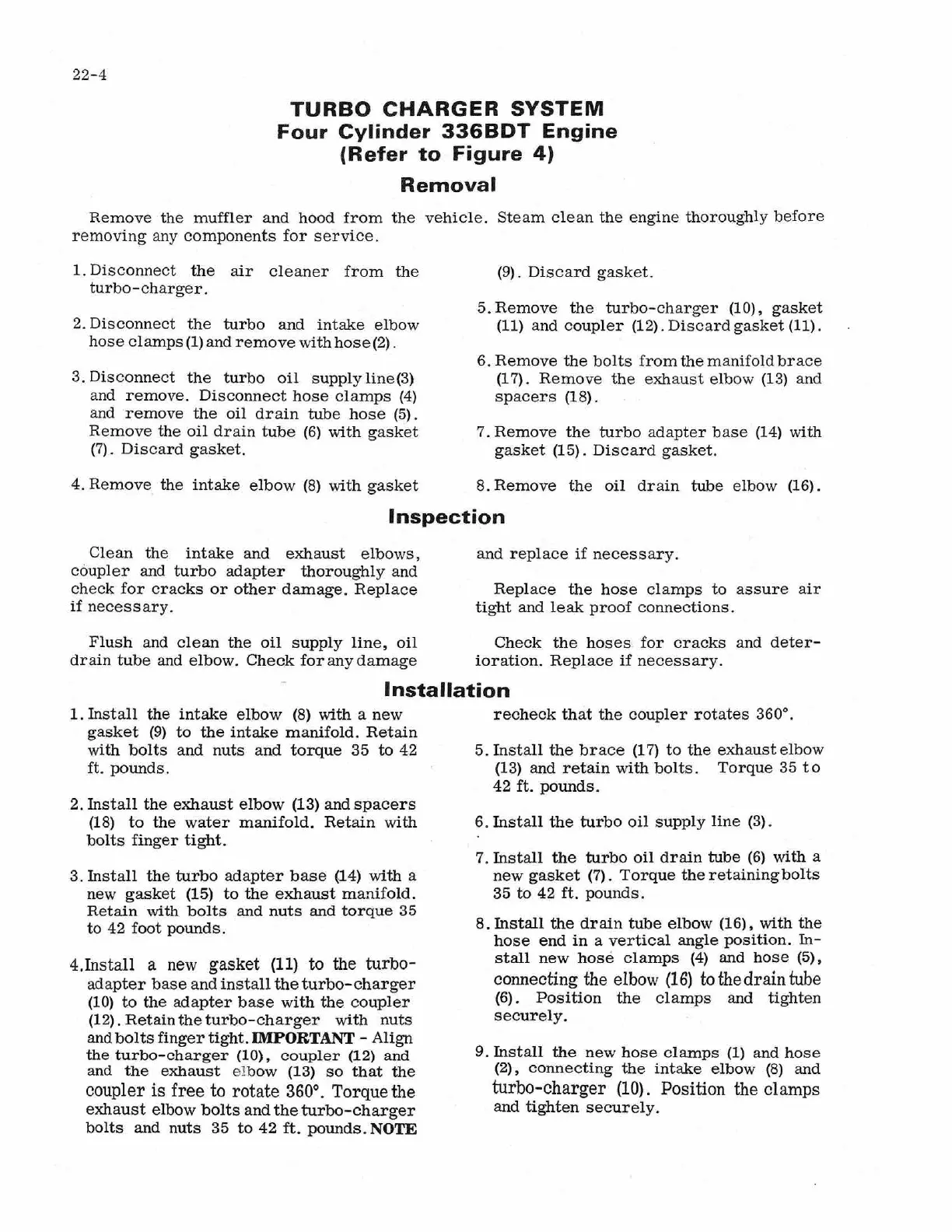

22-4
TURBO
CHARGER
SYSTEM
Four
Cylinder
336BDT
Engine
(Refer
to
Figure
4)
Removal
Remove
the
muffler
and
hood
from
the
vehicle
.
Steam
clean
the
engine
thoroughly
before
removing
any
components
for
service.
1.
Disconnect
the
air
cleaner
from
the
turbo-charger.
2.
Disconnect
the
turbo
and
intake
elbow
hose
clamps
(1)
and
remove
with
hose
(2)
.
3.
Disconnect
the
turbo
oil
supply
line(3}
and
remove.
Disconnect
hose
clamps
(4)
and
remove
the
oil
drain
tube
hose
(5)
.
Remove
the
oil
drain
tube
(6)
with
gasket
(7).
Discard
gasket.
4.
Remove
the
intake
elbow
(8)
with
gasket
(9).
Discard
gasket
.
5.
Remove
the
turbo-charger
(10),
gasket
(11)
and
coupler
(12)
.
Discard
gasket
(11).
6.
Remove
the
bolts
from
the
manifold
brace
(1
7)
.
Remove
the
exhaust
elbow
(13)
and
spacers
(18) .
7.
Remove
the
turbo
adapter
base
(14)
with
gasket
(15).
Discard
gasket
.
8.
Remove
the
oil
drain
tube
elbow
(16).
Inspection
Clean
the
intake
and
exhaust
elbows
,
coupler
and
turbo
adapter
thoroughly
and
check
for
cracks
or
other
damage.
Replace
if
necessary
.
Flush
and
clean
the
oil
supply
line,
oil
drain
tube
and
elbow.
Check
foranydamage
and
replace
if
necessary.
Replace
the
hose
clamps
to
assure
air
tight
and
leak
proof
connections.
Check
the
hoses
for
cracks
and
deter-
ioration.
Replace
if
necessary
.
Installation
1.
Install
the
intake
elbow
(8)
with
a
new
gasket
(9)
to
the
intake
manifold.
Retain
with
bolts
and
nuts
and
torque
35
to
42
ft
.
pounds.
2.
Install
the
exhaust
elbow
(13) and
spacers
(18)
to
the
water
manifold.
Retain
with
bolts
finger
tight.
3.
Install
the
turbo
adapter
base
(14)
with
a
new
gasket
(15)
to
the
exhaust
manifold.
Retain
with
bolts
and
nuts
and
torque
35
to
42
foot
pounds.
4.Install a
new
gasket
(11)
to the turbo-
adapter
base
and
install
the
turbo-charger
(10)
to
the
adapter
base
with
the
coupler
(12).
Retain
the
turbo-charger
with
nuts
and
bolts
finger
tight.
IMPORTANT -
Align
the
turbo-charger
(10),
coupler
(12) and
and
the
exhaust
elb
ow
(13)
so
that
the
coupler is free to rotate
360°.
Torque the
exhaust
elbow
bolts
and
the
turbo-charger
bolts
and
nuts
35
to
42
ft.
pounds
. NOTE
recheck
that
the
coupler
rotates
360°.
5.
Install
the
brace
(17)
to
the
exhaust
elbow
(13)
and
retain
with
bolts
.
Torque
35
to
42
ft
.
pounds
.
6.
Install
the
turbo
oil
supply
line
(3)
.
7.
Install
the
turbo
oil
drain
tube
(6)
with
a
new
gasket
(7)
.
Torque
the
retaining
bolts
35
to
42
ft.
pounds.
8.
Install
the
drain
tube
elbow
(16),
with
the
hose
end
in
a
vertical
angle
position.
In-
stall
new
hose
clamps
(4)
and
hose
(5),
connecting the elbow
(16)
to the drain
tube
(6)
.
Position
the
clamps
and
tighten
securely
.
9.
Install
the
new
hose
clamps
(1)
and
hose
(2),
connecting
the
intake
elbow
(8)
and
turbo-charger
(10).
Position the clamps
and
tighten
securely.
