Lubrication Points
The following points are to be lubricated once every 10 hours of operation or daily.
In severe or abnormal working conditions lubrication should be more often. Clean grease
fittings before applying grease gun.

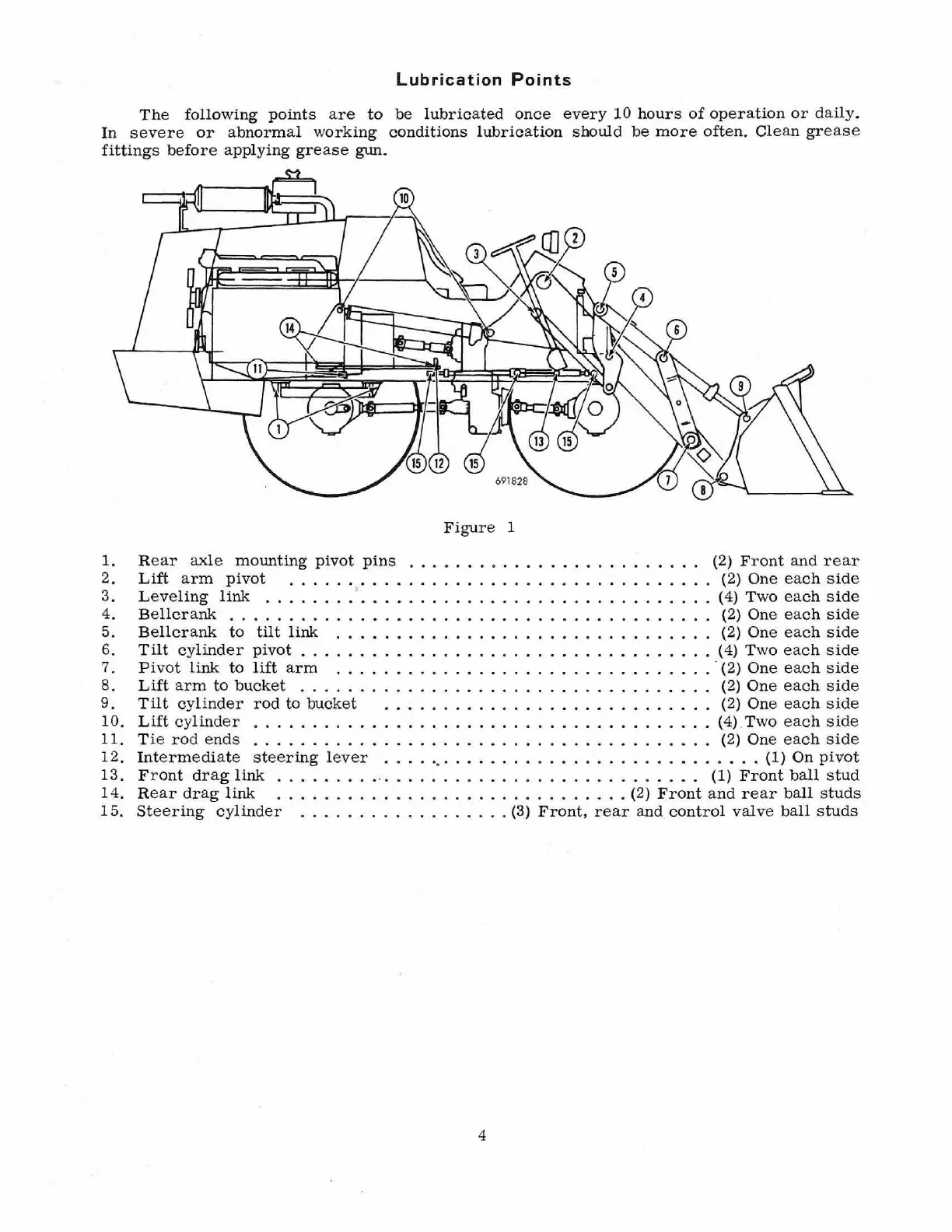

Figure 1
1.
Rear axle mounting pivot pins . . . . . . . . . . . . . . . . . . . . . . (2) Front and rear
2. Lift arm pivot . . . . . . . . . . . . . . . . . . . . . (2) One each side
3. Leveling link . . . . . . . . ' . . . . . . . . . . . . . . . . . . . . . . . ( 4) Two each side
4. Bellcrank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (2) One each side
5. Bellcrank to tilt link . . . . . . . . . . . . . . . . . (2) One each side
6. Tilt cylinder pivot . . . . . . . . . . . . . . . . . . . . . (4) Two each side
7. Pivot link to lift arm . . . . . . . . . . . . . . . . . . · (2) One each side
8. Lift arm to bucket . . . . . . . . . . . . . . . . . . . . . . . . (2) One each side
9. Tilt cylinder rod to bucket . . . . . . . . . . . (2) One each side
10. Lift cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . (4) Two each side
11. Tie rod ends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (2) One each side
12. Intermediate steering lever . . . . .. . . . . . . . . . . . . . . . .......... (1) On pivot
13. Front drag link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (1) Front ball stud
14. Rear drag link ........................... (2) Front and rear ball studs
15. Steering cylinder .................. (3) Front, rear and control valve ball studs
4
