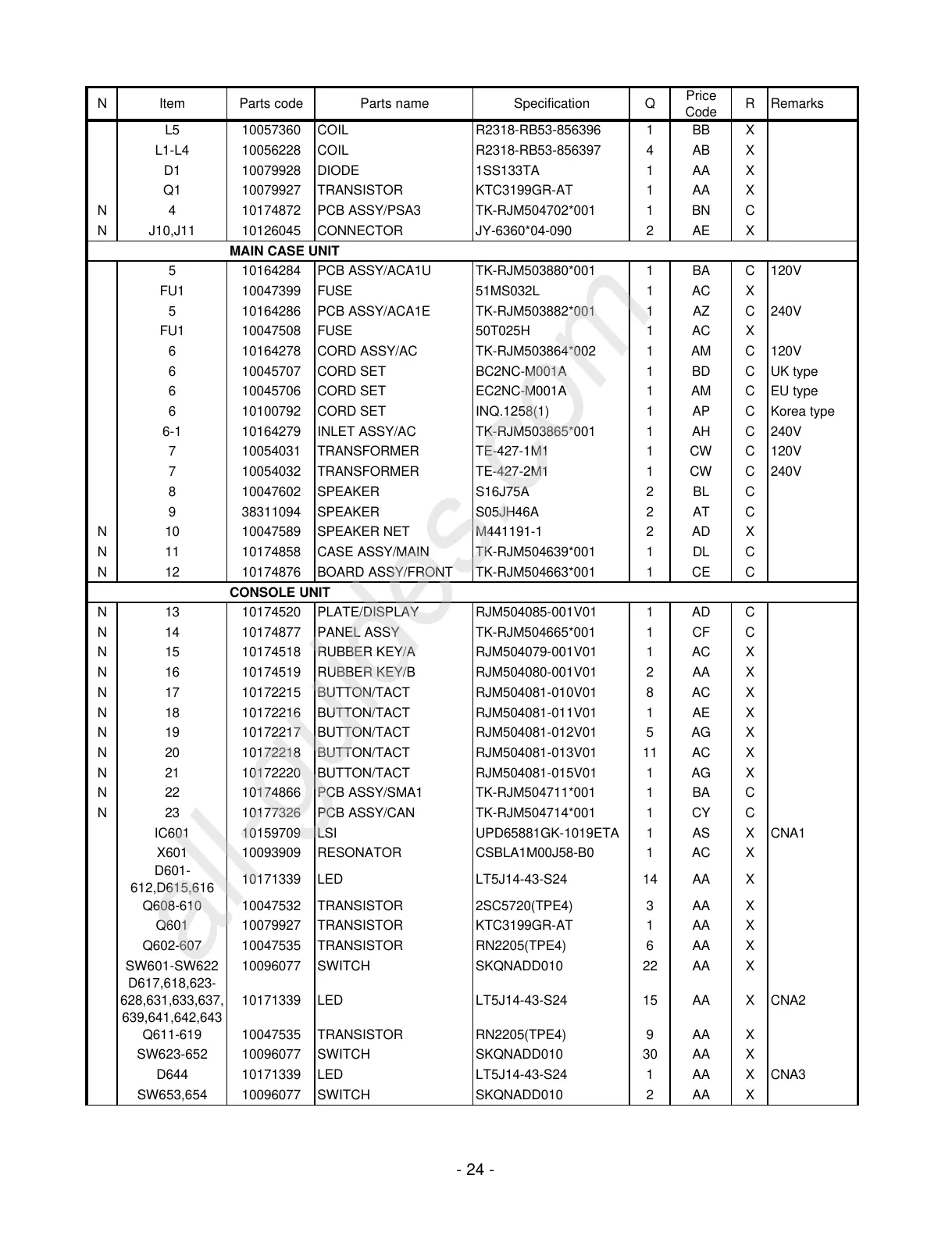

N Item Parts code Parts name Specification Q
Price
Code
R Remarks
L5 10057360 COIL R2318-RB53-856396 1 BB X
L1-L4 10056228 COIL R2318-RB53-856397 4 AB X
D1 10079928 DIODE 1SS133TA 1 AA X
Q1 10079927 TRANSISTOR KTC3199GR-AT 1 AA X
N 4 10174872 PCB ASSY/PSA3 TK-RJM504702*001 1 BN C
N J10,J11 10126045 CONNECTOR JY-6360*04-090 2 AE X
MAIN CASE UNIT
5 10164284 PCB ASSY/ACA1U TK-RJM503880*001 1 BA C 120V
FU1 10047399 FUSE 51MS032L 1 AC X
5 10164286 PCB ASSY/ACA1E TK-RJM503882*001 1 AZ C 240V
FU1 10047508 FUSE 50T025H 1 AC X
6 10164278 CORD ASSY/AC TK-RJM503864*002 1 AM C 120V
6 10045707 CORD SET BC2NC-M001A 1 BD C UK type
6 10045706 CORD SET EC2NC-M001A 1 AM C EU type
6 10100792 CORD SET INQ.1258(1) 1 AP C Korea type
6-1 10164279 INLET ASSY/AC TK-RJM503865*001 1 AH C 240V
7 10054031 TRANSFORMER TE-427-1M1 1 CW C 120V
7 10054032 TRANSFORMER TE-427-2M1 1 CW C 240V
8 10047602 SPEAKER S16J75A 2 BL C
9 38311094 SPEAKER S05JH46A 2 AT C
N 10 10047589 SPEAKER NET M441191-1 2 AD X
N 11 10174858 CASE ASSY/MAIN TK-RJM504639*001 1 DL C
N 12 10174876 BOARD ASSY/FRONT TK-RJM504663*001 1 CE C
CONSOLE UNIT
N 13 10174520 PLATE/DISPLAY RJM504085-001V01 1 AD C
N 14 10174877 PANEL ASSY TK-RJM504665*001 1 CF C
N 15 10174518 RUBBER KEY/A RJM504079-001V01 1 AC X
N 16 10174519 RUBBER KEY/B RJM504080-001V01 2 AA X
N 17 10172215 BUTTON/TACT RJM504081-010V01 8 AC X
N 18 10172216 BUTTON/TACT RJM504081-011V01 1 AE X
N 19 10172217 BUTTON/TACT RJM504081-012V01 5 AG X
N 20 10172218 BUTTON/TACT RJM504081-013V01 11 AC X
N 21 10172220 BUTTON/TACT RJM504081-015V01 1 AG X
N 22 10174866 PCB ASSY/SMA1 TK-RJM504711*001 1 BA C
N 23 10177326 PCB ASSY/CAN TK-RJM504714*001 1 CY C
IC601 10159709 LSI UPD65881GK-1019ETA 1 AS X CNA1
X601 10093909 RESONATOR CSBLA1M00J58-B0 1 AC X
D601-
612,D615,616
10171339 LED LT5J14-43-S24 14 AA X
Q608-610 10047532 TRANSISTOR 2SC5720(TPE4) 3 AA X
Q601 10079927 TRANSISTOR KTC3199GR-AT 1 AA X
Q602-607 10047535 TRANSISTOR RN2205(TPE4) 6 AA X
SW601-SW622 10096077 SWITCH SKQNADD010 22 AA X
D617,618,623-
628,631,633,637,
639,641,642,643
10171339 LED LT5J14-43-S24 15 AA X CNA2
Q611-619 10047535 TRANSISTOR RN2205(TPE4) 9 AA X
SW623-652 10096077 SWITCH SKQNADD010 30 AA X
D644 10171339 LED LT5J14-43-S24 1 AA X CNA3
SW653,654 10096077 SWITCH SKQNADD010 2 AA X
- 24 -
