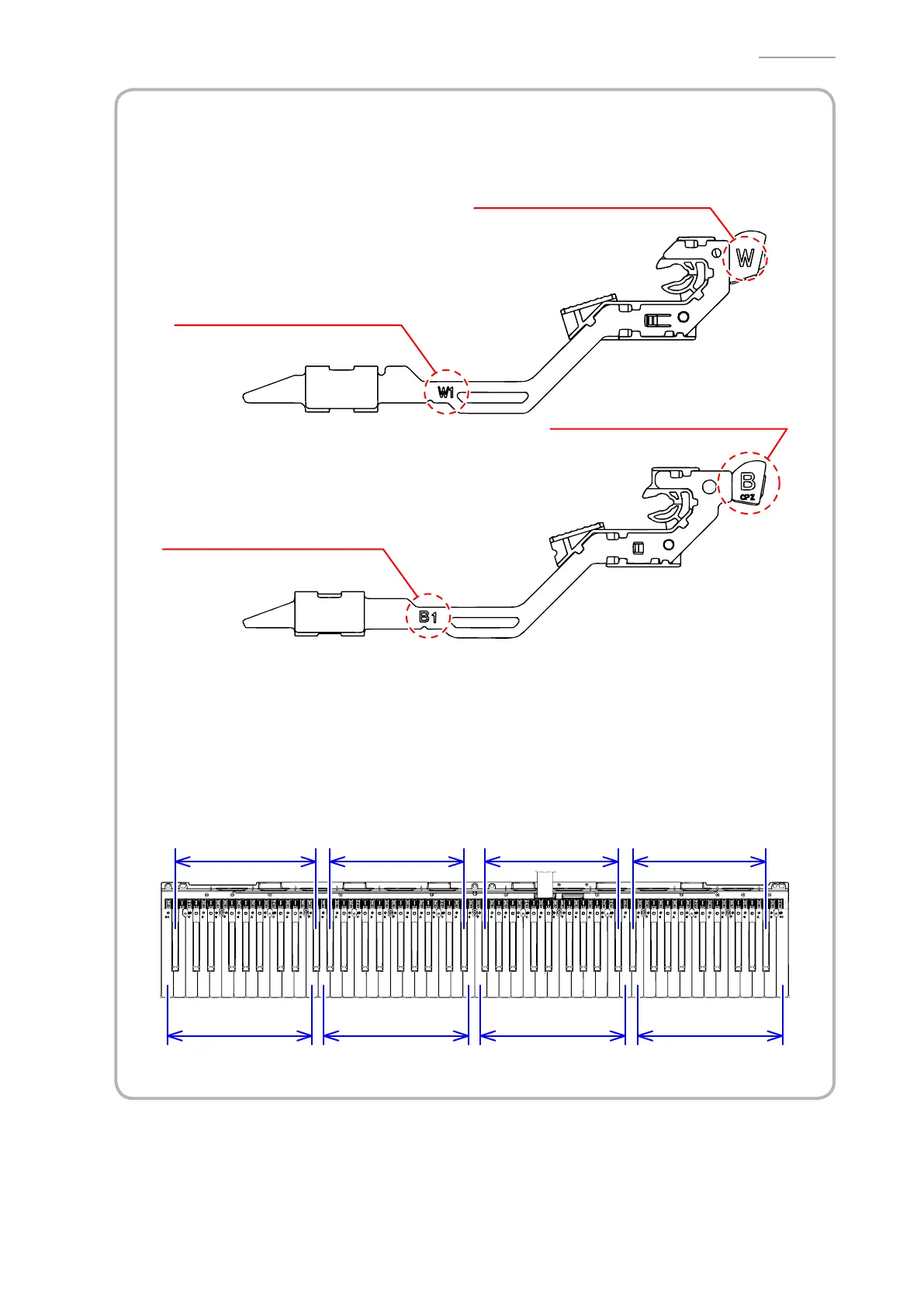

<Kinds of hammers>
There are several kinds of hammers. The type of a hammer may be identifi ed by the code
engraved on it.
Hammer Code (for a black key)
Type of Hammer (for a black key)
Type of Hammer (for a white key)
Hammer Code (for a white key)
Type of Hammer: “W” for a white key, “B” for a black key.
Hammer Code: The hammers for white keys are coded W1, W2, W3, and W4.
The hammers for black keys are coded B1, B2, B3, and W4.
<Location to install the hammer>
A hammer must be installed at the correct location according to its type. The combination of
hammers and keys are shown below.
W1 (13 keys)
<Hammers for white keys>
<Hammers for black keys>
B1 (9 keys) B2 (9 keys) B3 (9 keys) B4 (9 keys)
W2 (13 keys) W3 (13 keys) W4 (13 keys)

Casio CDP-130 Specifications

General

USB port	No
Headphone outputs	1
USB connector type	USB Type-B
Headphone connectivity	6.3 mm
Sound effects	Chorus, Reverberation
Output voltage	1.5 V
Output impedance	3 Ω
Number of speakers	2
Metronome tempo range	30 - 255 bpm
Amplifier output power	16 W
Chorus effects quantity	5
Maximum polyphony (notes)	48
Reverberation effects quantity	10
Adjustable tone range (octaves)	-12 - 12
Keys quantity	88 keys
Product color	Black
Power source type	-
Power consumption (min)	18 W

Weight and Dimensions

Depth	286 mm
Width	1322 mm
Height	129 mm
Weight	10800 g
Stand depth	373.2 mm
Stand width	1332 mm
Stand height	753.3 mm
