Casio CDP-130 Service Manual & Parts Guide

CDP-130
– 3 –

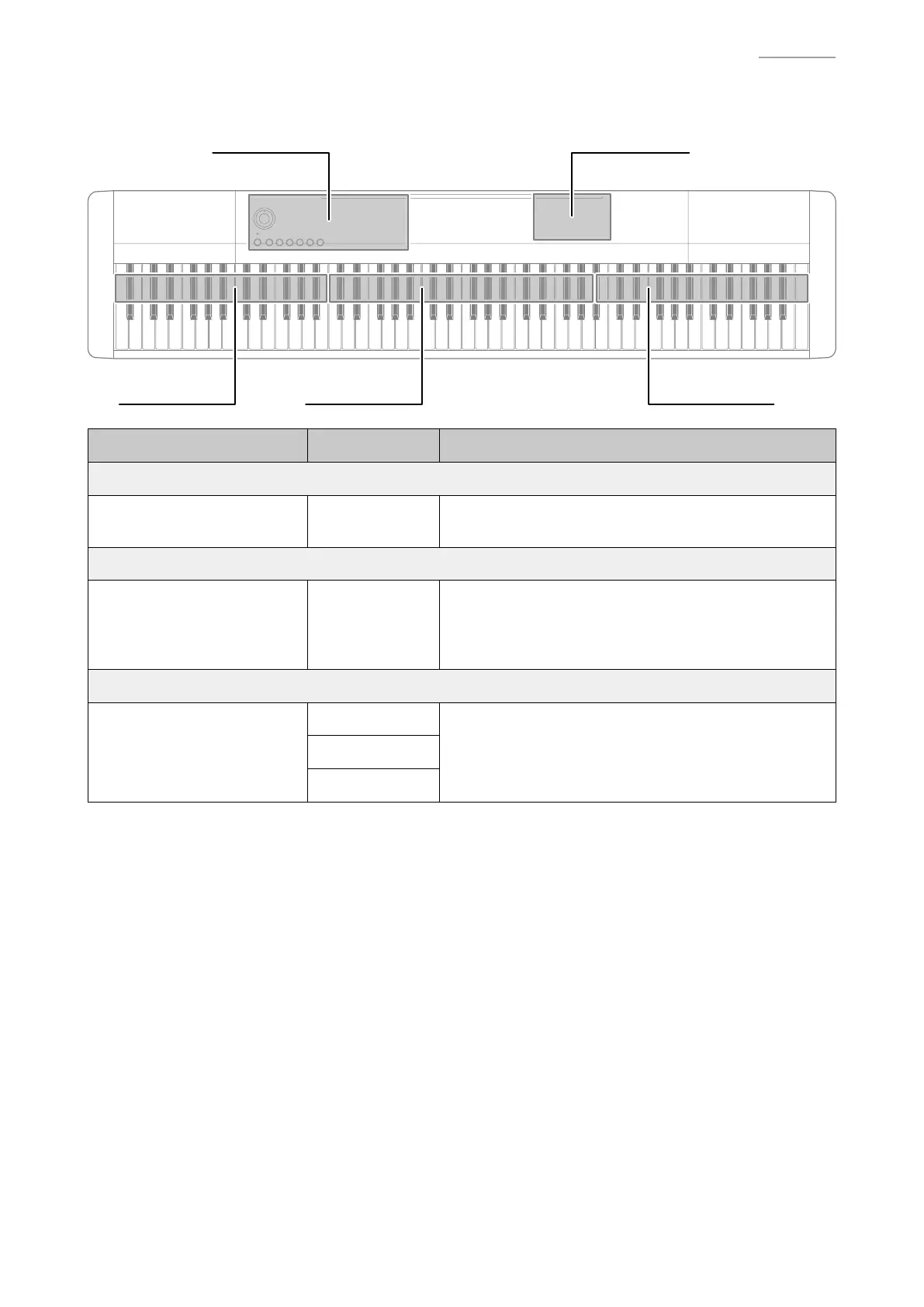

PCB INFORMATION
M914-MDA1M914-PSA1
M914-KYA1 M914-KYB1 M914-KYC1
Parts Name PCB Name Functions
Main PCB
PCB UNIT/MAIN M914-MDA1
MPU, Flash memory, Power supply circuit, Filter,
USB port
Power & Amp PCB
PCB UNIT/POWER & AMP M914-PSA1
Power supply circuit, Power amplifi er,
Headphones amplifi er, Buttons, Power switch,
Main volume, DC 12 V terminal,
DAMPER PEDAL jack, PHONES/OUTPUT jack
Keyboard PCB
PCB UNIT/KEYBOARD
M914-KYA1
KeyboardM914-KYB1
M914-KYC1

Casio CDP-130 Specifications

General

USB port	No
Headphone outputs	1
USB connector type	USB Type-B
Headphone connectivity	6.3 mm
Sound effects	Chorus, Reverberation
Output voltage	1.5 V
Output impedance	3 Ω
Number of speakers	2
Metronome tempo range	30 - 255 bpm
Amplifier output power	16 W
Chorus effects quantity	5
Maximum polyphony (notes)	48
Reverberation effects quantity	10
Adjustable tone range (octaves)	-12 - 12
Keys quantity	88 keys
Product color	Black
Power source type	-
Power consumption (min)	18 W

Weight and Dimensions

Depth	286 mm
Width	1322 mm
Height	129 mm
Weight	10800 g
Stand depth	373.2 mm
Stand width	1332 mm
Stand height	753.3 mm
