English
Getting Ready
E-33

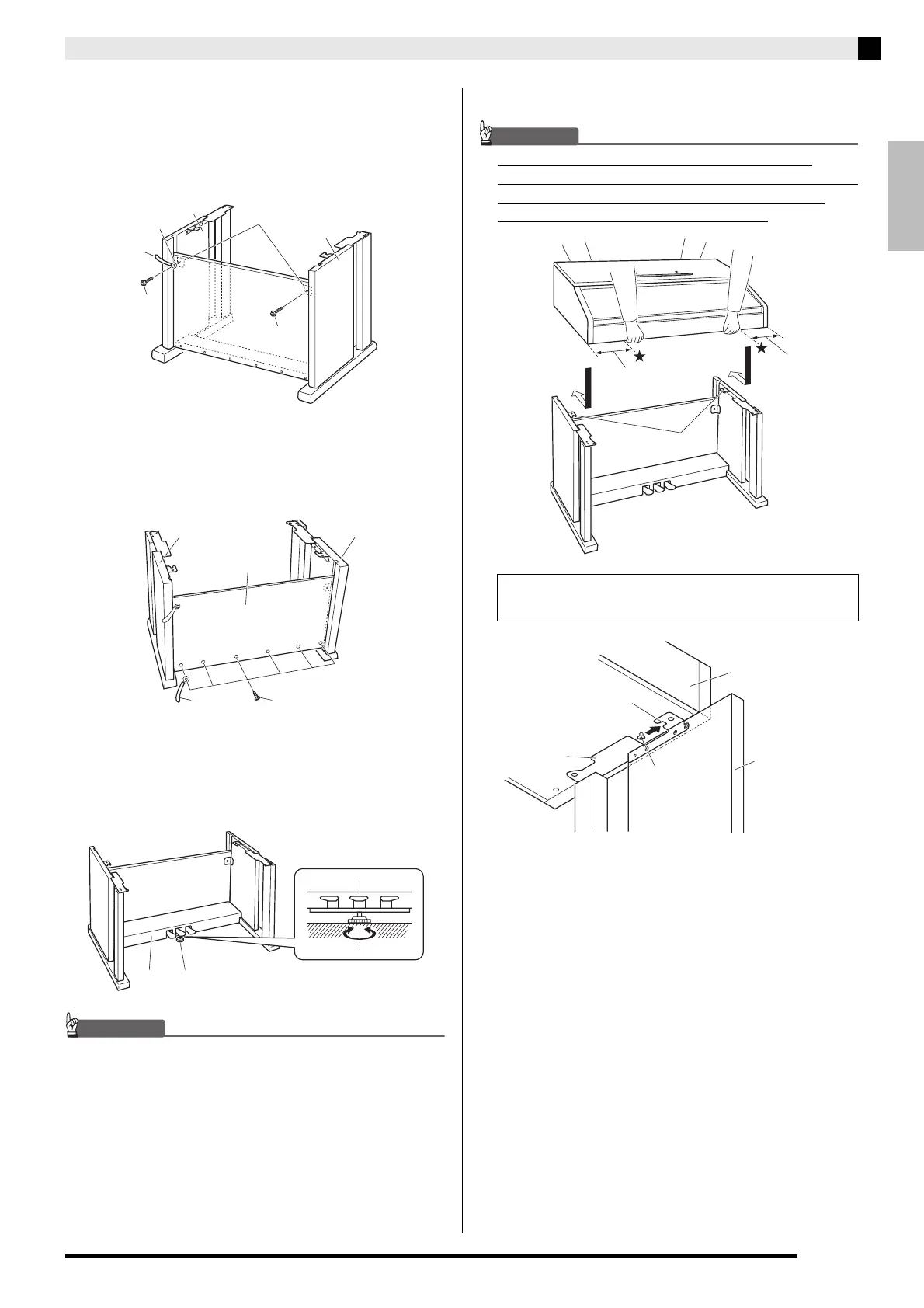

4.
Use the two screws
I
to secure the top left
and right edges of the back panel
C
to the
brackets
5
of side panels
A
and
B
.
At location
6
, slip the clip
G
onto to the screw
I
before installing the screw.
5.
Next, secure the bottom of the back panel
C
with the six
F
screws.
Place one of the clips G onto the leftmost screw F as
shown in the illustration below.
6.
Adjust the height adjustment screw
7
to
provide support so crosspiece
D
does not
bow downwards when the pedals are
pressed.
IMPORTANT!
Pressing the pedals without adjusting height
adjustment screw
7
can result in damage to
crosspiece
D
. Always make sure you adjust height
adjustment screw
7
before operating the pedals.
7.
Place the piano onto the stand.
IMPORTANT!
In order to ensure you do not get your fingers
pinched between the piano and the stand, grasp the
piano on its sides (not its ends) at the locations
marked with stars () in the illustration.
I
I
5
6
G
B
A
C
F
A
B
G
7D
At this time the screws on the bottom of the piano
8
should hook into the cutouts in the stand brackets
9
.
9
At least 10cm
At least 10cm
9
8
Bracket cutout
Back of piano
Stand side panel
