Casio CSF-4450A Service Manual & Parts List

— 11 —
3
2
1
Reset Button
Test Pad
STEP OPERATION DISPLAY NOTE
Enter the
diagnostics
Press ON while shorting
the Test pad.
///// SELF TEST PROG /////
PRESS OK KEY
QUIT BY OFF KEY
CASIO MAR 1996
Main menu OK TEST
1 DISP
2 MEMORY
3 KEY
Display
Check
1 DISPLAY
1 DISPLAY
2 FRAME FREQ.
1 No color, no display
OK Orange color is displayed
OK Green color is displayed
OK Blue color is displayed
OK Checkers are displayed
OK Reverse checkers are displayed
OK Frame is displayed
OK Dots at the 4 corners are
displa
y
ed
OK Vertical 4 colors are displayed
OK Horizontal 4 colors are displayed
OK TEST
1 DISP
2 MEMORY
3 KEY
4 BUZZER
5 I/F
6 CONT
7 RESET
4 BUZZER
5 I/F
6 CONT
7 RESET

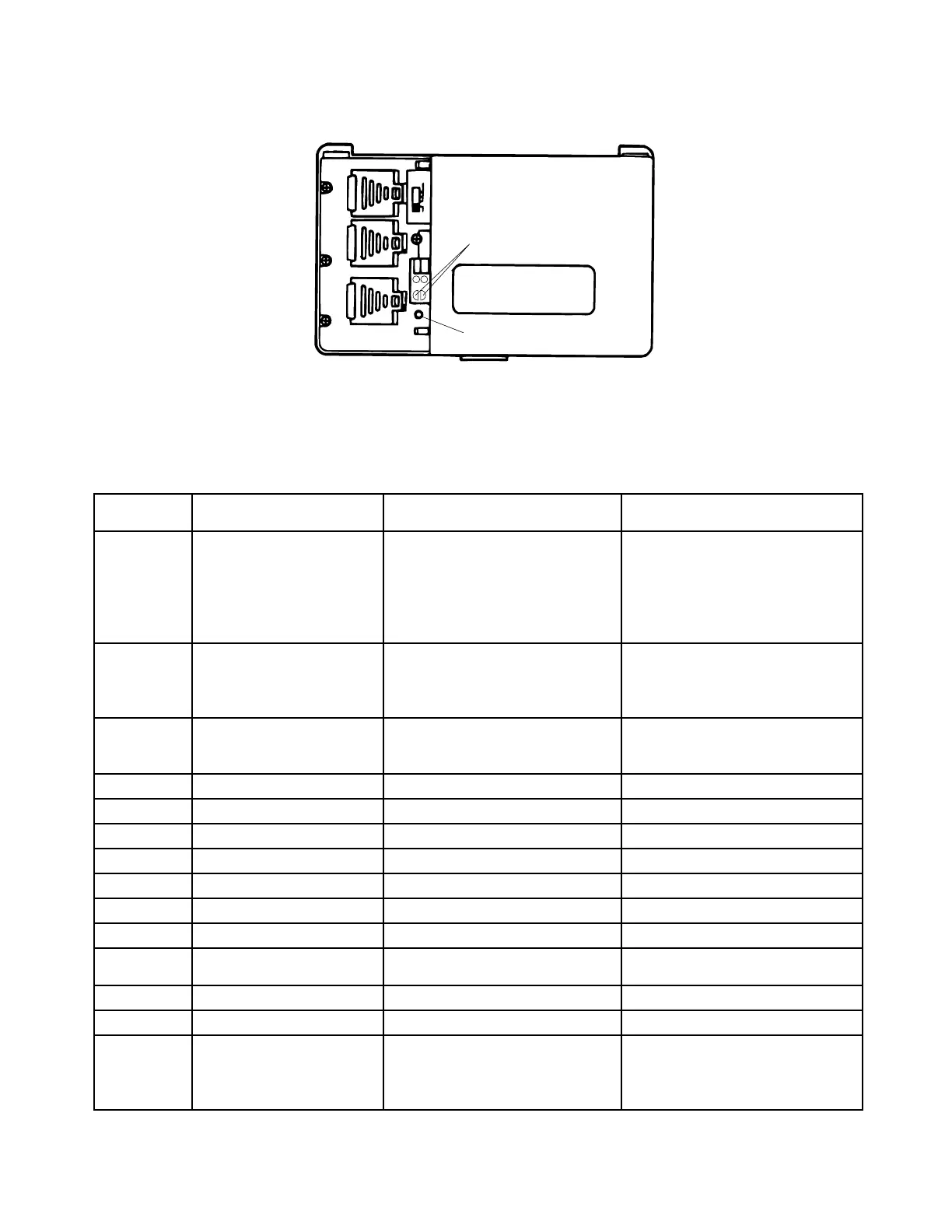

DIAGNOSTIC PROGRAM
To enter the diagnostic program, proceed as follows;
1 : Turn the power switch ON and open the battery cover.
2 : Press Reset Button while shorting the Test pad.
Bottom View

Casio CSF-4450A Specifications

General

Brand	Casio
Model	CSF-4450A
Category	Organizer
Language	English
