Casio CTK-1100 Service Manual & Parts Guide

CTK-1100
– 10 –

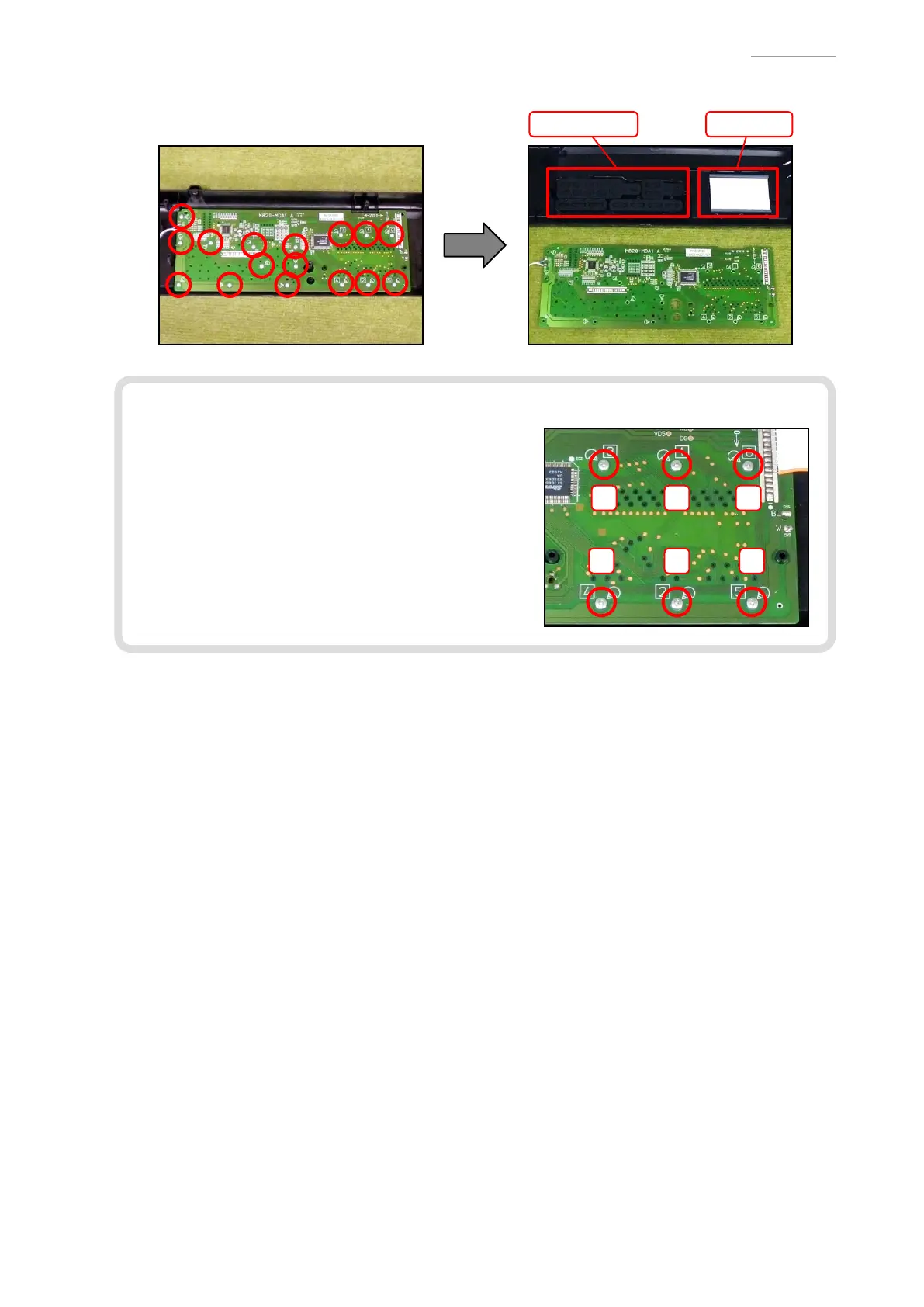

Undo 16 screws and then remove the M820-MDA1 PCB, rubber keys and LCD.B-4.
Rubber keys LCD
<Caution for installing M820-MDA1 PCB>
To install the M820-MDA1 PCB, tighten the screws for
the LCD part in the order shown in the right.
If not tighten correctly, it may cause the LCD display
errors.
4
3
2
1
5
6

Casio CTK-1100 Specifications

General

MIDI-keyboard number of keys	61 keys
Product color	Black
Pitch bend wheel	Yes
Interface	-
Dimensions (WxDxH)	949 x 304 x 93 mm
Power consumption (typical)	7.7 W

Weight and Dimensions

Weight	3300 g
