CTK-1100
– 11 –

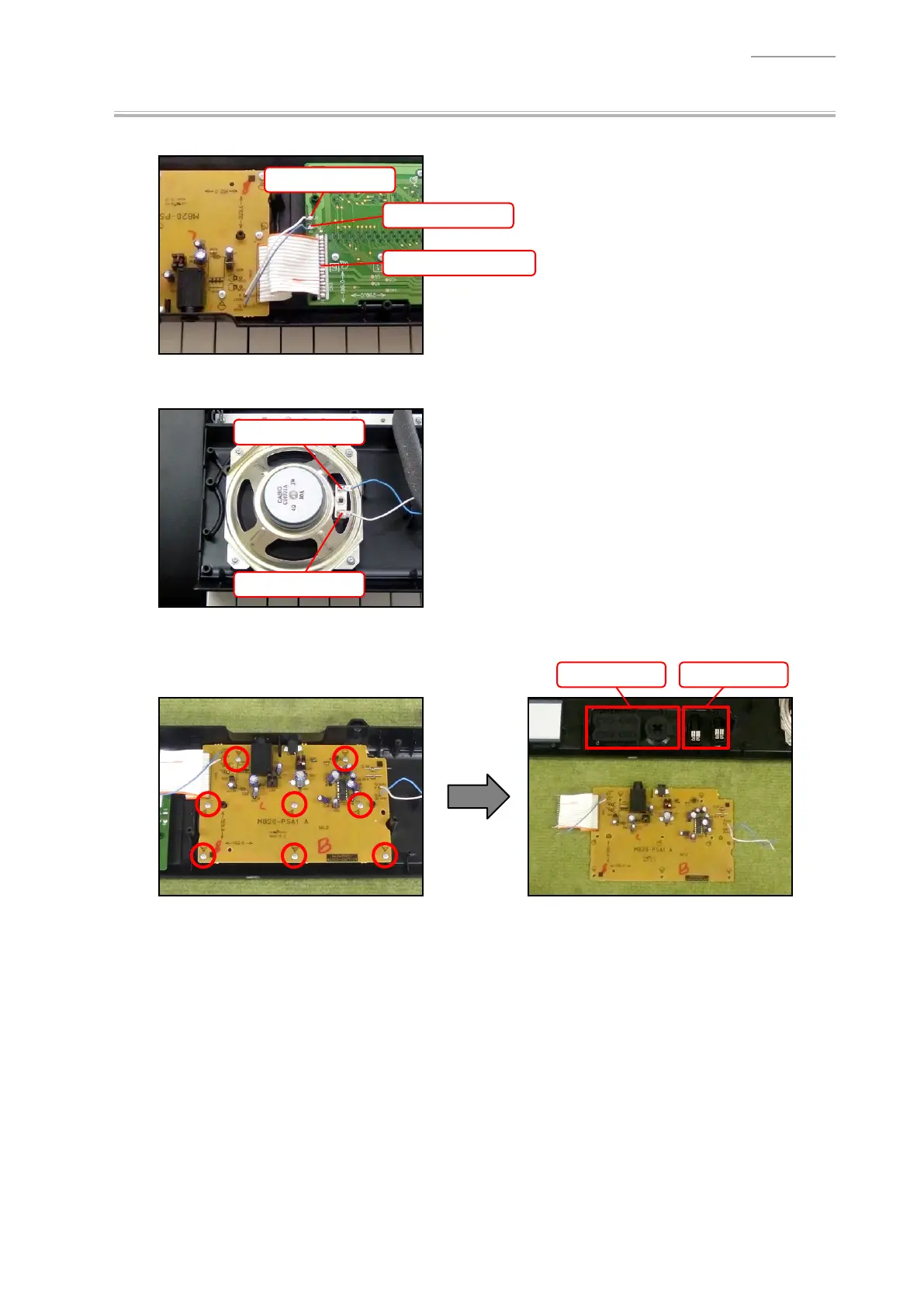

POWER AMP PCB (M820-PSA1)C.
Unsolder two lead wires and one FFC connected to the M820-MDA1 PCB.C-1.
Lead wire (White)
Lead wire (Blue)
FFC (M820-PSA1)
Unsolder two lead wires connected to the left speaker.C-2.
Lead wire (Blue)
Lead wire (White)
Undo eight screws and then remove the M820-PSA1 PCB, rubber keys and switches.C-3.
Rubber keys Switches
