– 7 –
PRINTED CIRCUIT BOARDS

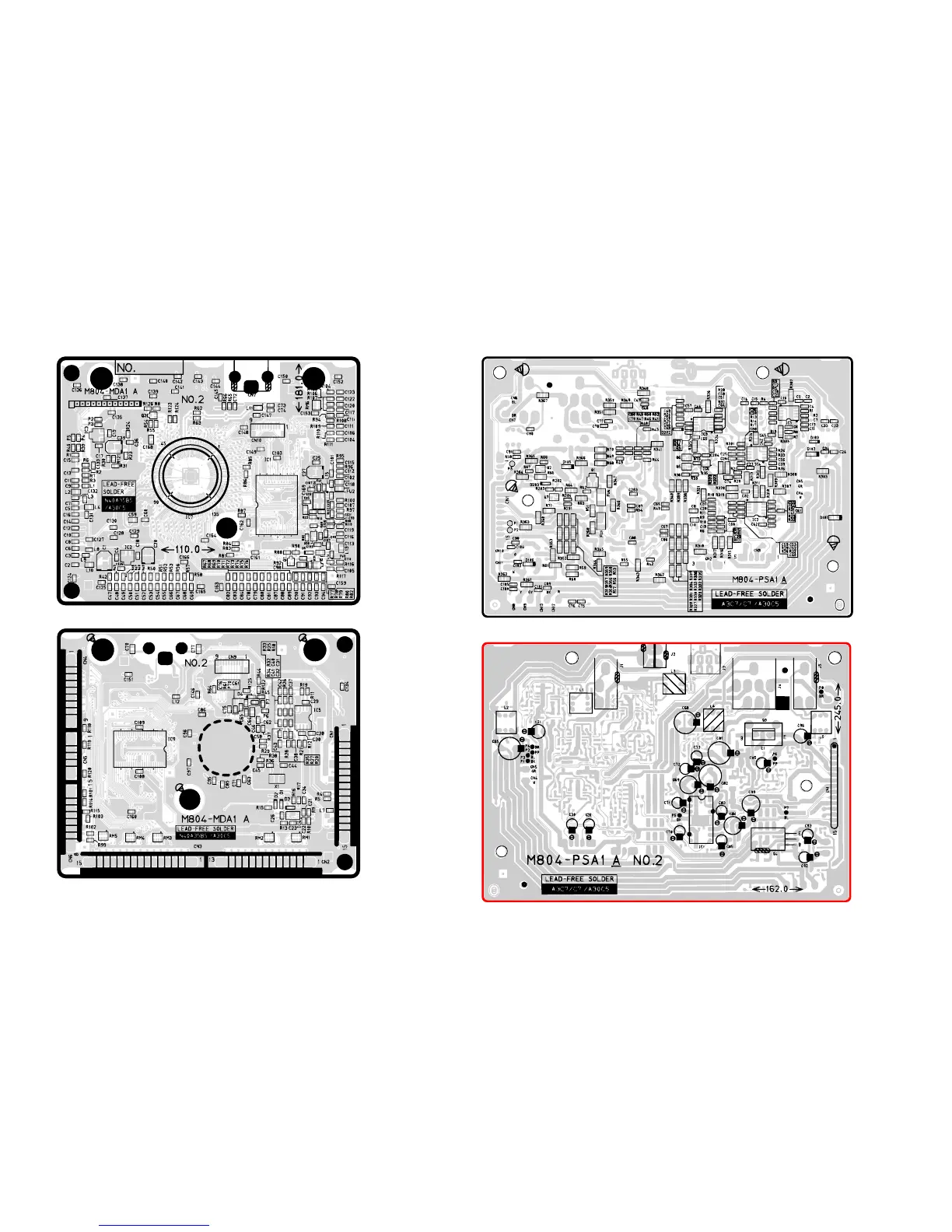

Main PCB M804-MDA1
Top View
Bottom View
Sub PCB M804-PSA1
Top View
Bottom View
