— 8 —

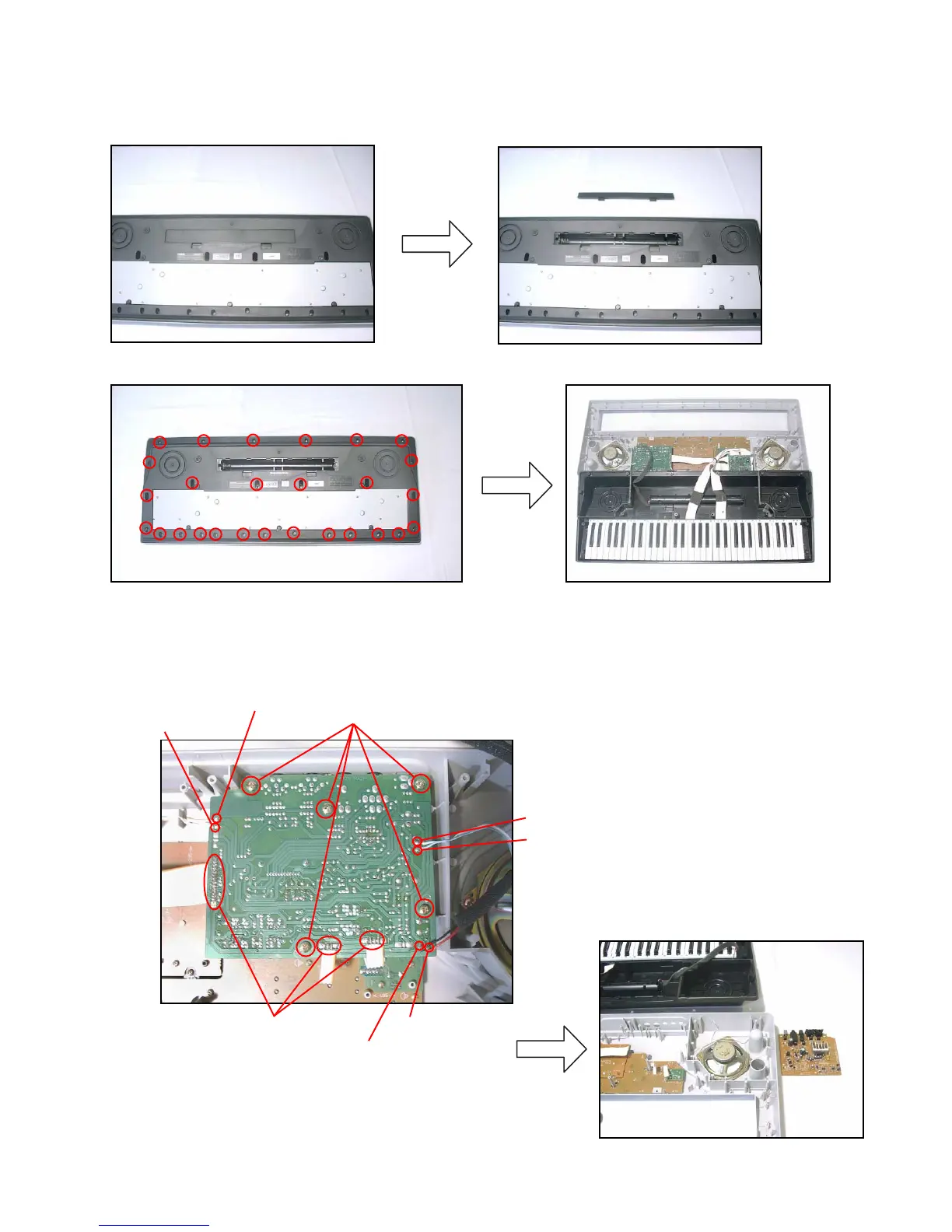

DISASSEMBL
Y
1.
Remove the battery cover and then the battery
.
2.
Remove 27 screws and then the upper case.
3.
Remove 5 screws, 4 speaker cords, 2 battery cords, 3 connectors (JC, JG, JH) and then the PCB
ASS'Y
(MA2M).
Speaker cord (BL)
Speaker cord (W)
Speaker cord (O)
Speaker cord (W)
Battery cord (R)
Battery cord (B)
Screws
Connectors
9
11
Table of Contents
Table of Contents
2
Specifications
3
Block Diagram
5
Circuit Description
6
Printed Circuit Boards
7
Disassembly
10
Diagnostic Program
16
Schematic Diagrams
19
Exploded View
24
Parts List
25
