– 56 –
DT-X200/DT-X8
4. Disconnect the connector and antenna.
5. Remove the EXT-UNIT.

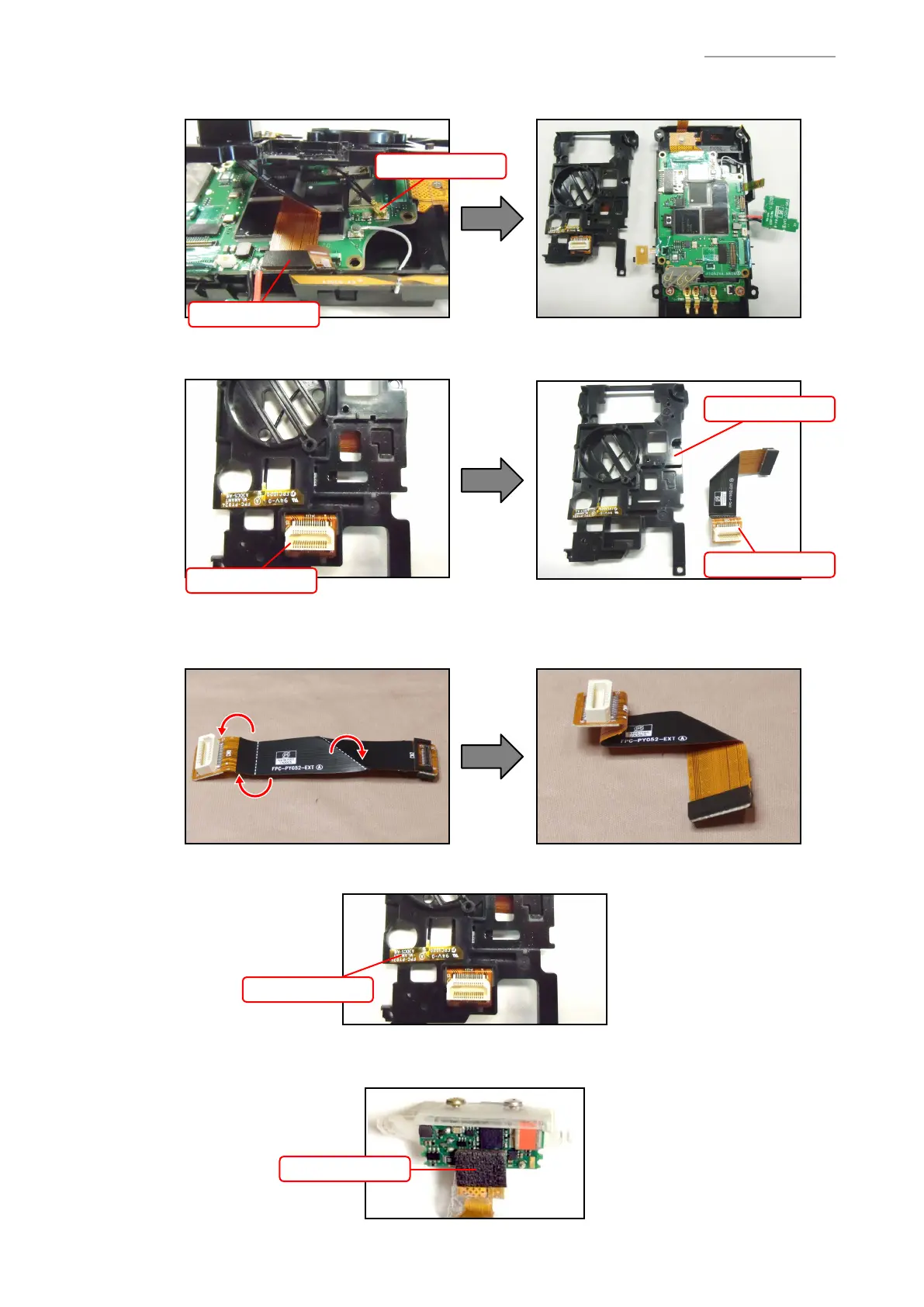

Note on reassembling:
When the EXT-UNIT is replaced with a new one, form its shape as shown below.
Attach the antenna to the position shown below.
Attach the cushion on the connector.
Connector
Antenna
EXT-UNIT
EXT-UNIT
SBAT-HOLDER
Antenna
Cushion
