– 59 –
DT-X200/DT-X8

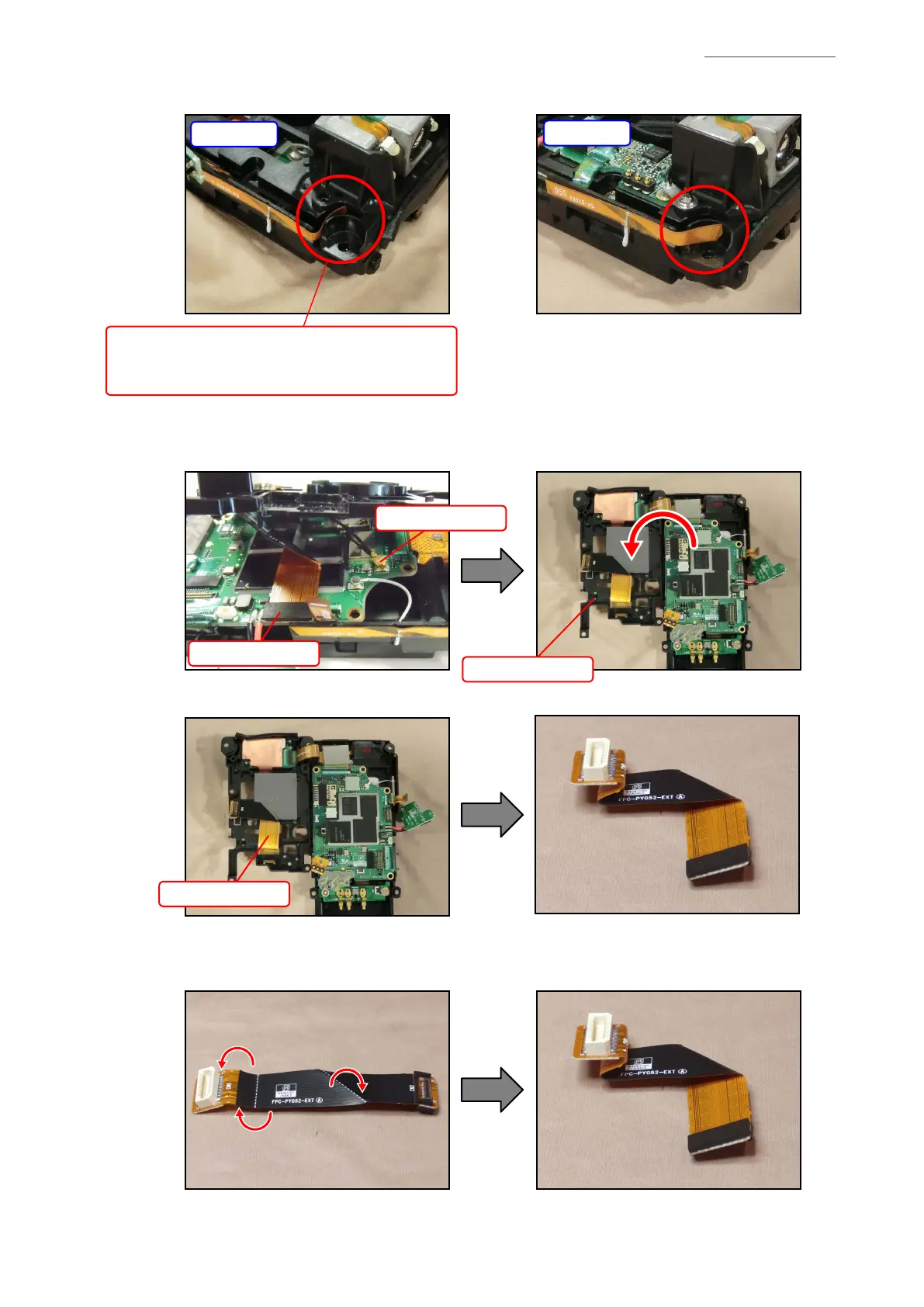

Note on reassembling:
Antenna
Note on reassembling:
Put the excess part in the groove of the I-CASE.
NG
OK
5. Disconnect the connector and antenna.
Note:
Gently lift the SBAT-HOLDER as the antenna and FPC are connected to it.
6. Remove the EXT-UNIT.
EXT-UNIT
Note on reassembling:
When the EXT-UNIT is replaced with a new one, form its shape as shown below.
FRI-ASSY
Connector
Antenna
