Notes on reassembling:
• When the I-CASE is to be replaced, the following parts should be mounted on the I-CASE as
they are not included in.
Double-face Tape
Spacer
Spacer
Spacer
Be sure that it does not go higher than the rib.

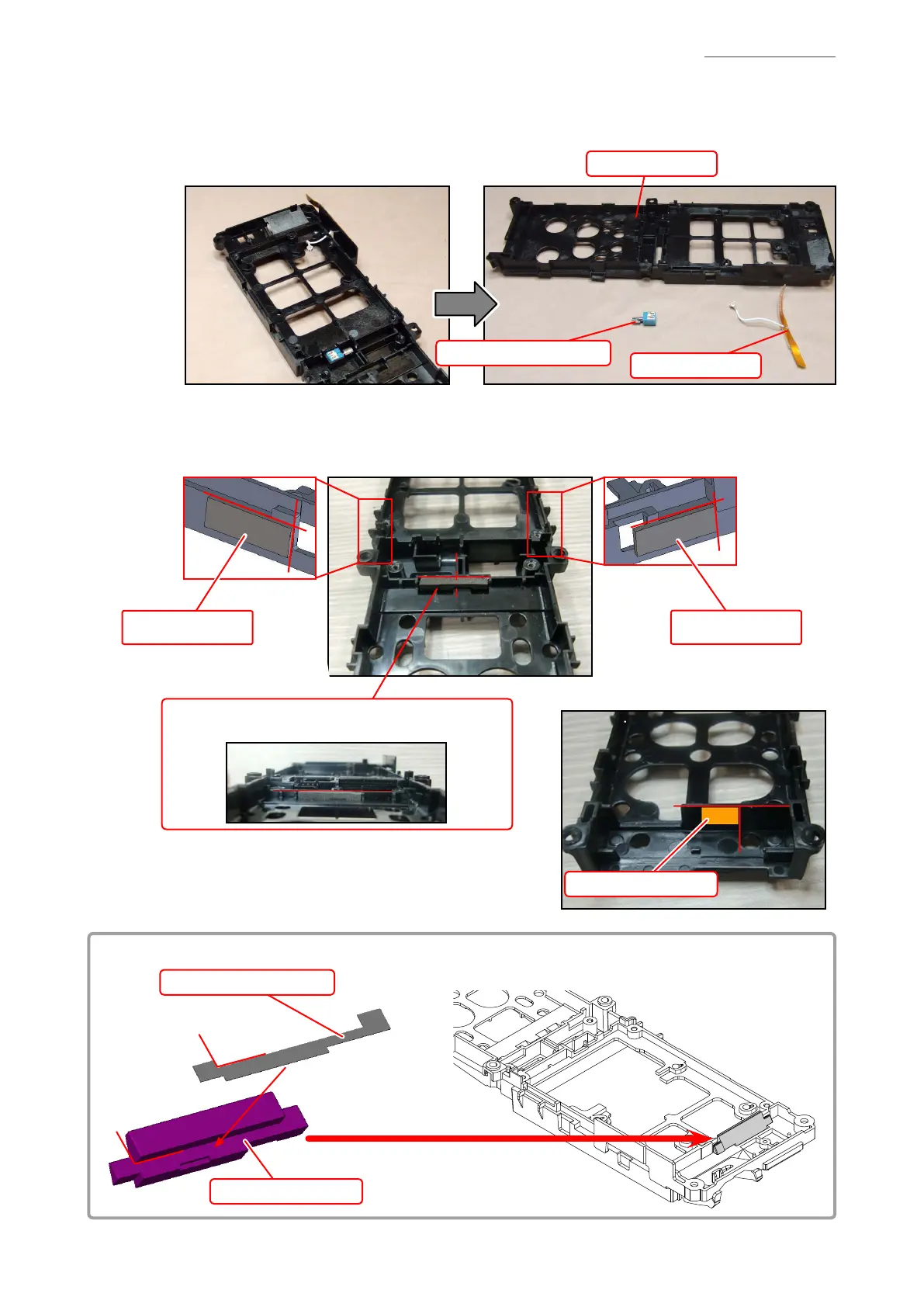

(4) Removing the I-CASE, VIBRATION-MOTOR, LAN-ANT-UNIT
1. Remove the VIBRATION-MOTOR.
2. Remove the LAN-ANT-UNIT.
Note:
LAN-ANT-UNIT is fi xed with a double-face tape.
VIBRATION-MOTOR
I-CASE
LAN-ANT-UNIT
2D only
SPACER/2D
W-TAPE/2D-SPACER
