Casio DT-X200-10E Service Manual

— 75 —
DT-X200/DT-X8
1 DT-X200-10E
2 DT-X200-11E
3 DT-X200-20E
4 DT-X200-21E
5 DT-X200-41E 6 DT-X8-10C-CNV
7 DT-X8-20C-CNV

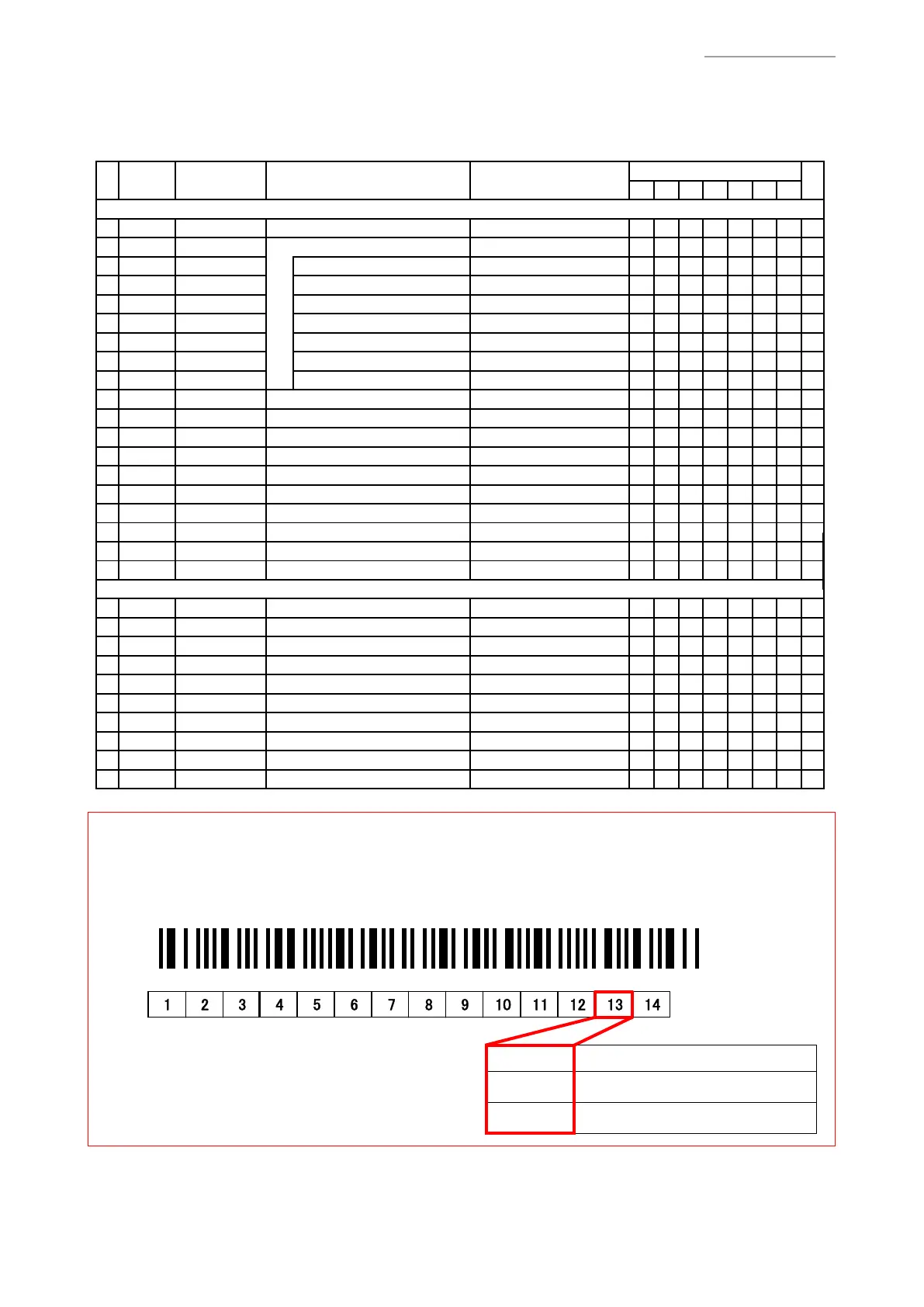

NOTE:
When the PCB-ASSY/MAIN (item No. 24) or LCD-UNIT (item No. 25) is replaced with a new one.
Since there are 2 types of PCB-ASSY/MAIN (item No. 24) and LCD-UNIT (item No. 25),
respectively, make sure to replace with the same type of part.
Use the part that corresponds to the alphabetical letter in the position “13” on the serial barcode label.
13 Parts Name
A, B, C PCB-ASSY/MAIN, LCD-UNIT
D or later PCB-ASSY/MAIN2, LCD-UNIT2
1234567
RN Item Code No. Parts Name Specification
Q'ty
UPPER-CASE-UNIT
15 10400632 CASE-ASSY/UPPER RJC505391*001 TK 1 1 1 1 1 C
15 10400633 CASE-ASSY/UPPER RJC505391*002 TK 1 1 C
15-1 10385315 TAPE/LED RJC505193-001V01 1111111X
15-2 10385314 LENS/LED RJC505192-001V01 1111111C
15-3 10391408 CUSHION/TOUCH-PANEL RJC505190-001V02 1111111X
15-4 10303498 FILTER/MIC RJC503857-001V01 11111 C
15-4 10391785 BLIND/MIC RJC505679-001V01 1 1 C
15-5 10385317 FILTER/SPEAKER RJC505195-001V01 1111111C
15-6 10385320 TAPE/KEY RJC505198-001V01 1111111X
N 16 10512115 KEY-UNIT RJC505124*003 TK 11111 C
N 16 10512116 KEY-UNIT RJC505124*004 TK 1 1 C
N 17 10501682 SUBASSY/KEY RJC505130*003V01 1111111C
18 10385318 HOLDER/KEY/U RJC505196-001V01 1111111C
19 10385319 HOLDER/KEY/M RJC505197-001V01 1111111C
20 10381751 SPEAKER SCG-16W-LS 1111111C
21 10385295 TOUCH-PANEL CST-F27A 1111111A
22 10391406 COVER/MIC VSP-079 11111 C
23 10397037 PLATE/LCD RJC505755-001V01 1111111X
S1 10245664 SCREW RJC502686-001V01 6666666X
INNER-CASE-UNIT
N 24 10521705 PCB-ASSY/MAIN RJC506367*013 TK 1 1 A
N 24 10536371 PCB-ASSY/MAIN2 RJC507612*004 TK 1 1 A
N 24 10521706 PCB-ASSY/MAIN RJC506367*014 TK 1 1 A
N 24 10536372 PCB-ASSY/MAIN2 RJC507612*005 TK 1 1 A
N 24 10521707 PCB-ASSY/MAIN RJC506367*015 TK 1 A
N 24 10536373 PCB-ASSY/MAIN2 RJC507612*006 TK 1 A
N 24 10521708 PCB-ASSY/MAIN RJC506367*016 TK 1 1 A
N 24 10536374 PCB-ASSY/MAIN2 RJC507612*007 TK 1 1 A
25 10394353 LCD-UNIT RJC505397*001 TK 1111111A
25 10536367 LCD-UNIT2 RJC507611*001 TK 1111111A
