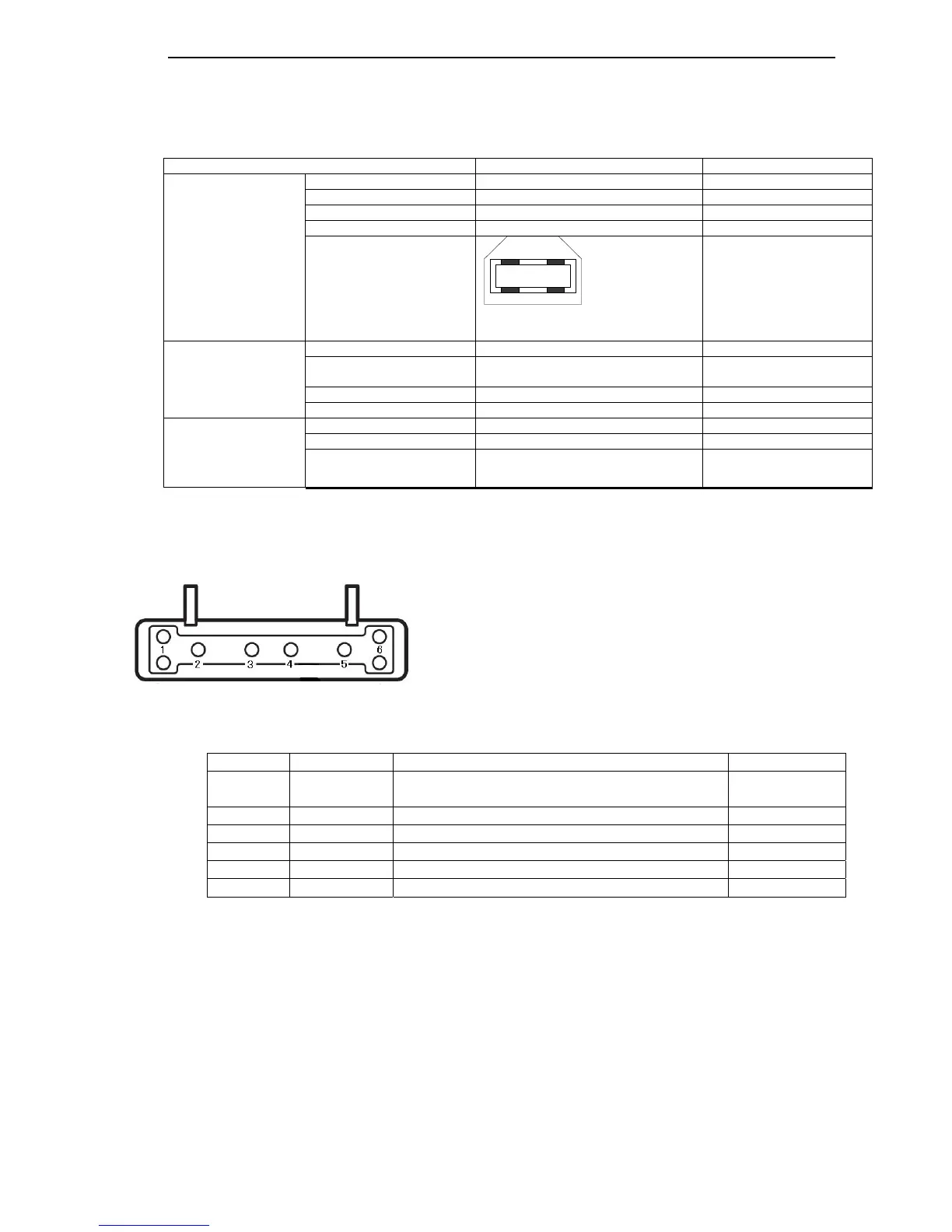

DT-X200 Hardware Manual P.19
3.1.3. USB and Charging Unit
Item Specification Remark
Standard USB Ver.1.1 compatible
Baud rate Max. 12 Mbps (maximum)
Pin Layout See Figure 2.9.
Description See Table 2.10.
USB Client
Connector
12
43
USB connector B type
1 VBus
2 – Data (D -)
3 + Data (D+)
4 GND
Input voltage DC 5V±5%
Current consumption DC 5V, Approx. 3A (maximum) When supplying power or
transmitting data.
Plug EIAJ RC-5320A type 2 Center +
Power from AC
Adaptor
AC Adaptor AD-S15050B or AD-S15050B-CN Dedicated AC adaptor
Output voltage DC5.0±0.25V
Output current 3.0 A (maximum)
Power
Charge method Constant voltage method Charge by integrated
battery charge circuit
Pin Layout
The pin layout below shows when the Cradle is viewed at the front.
Pin Layout and the description
Pin no. Signal Description Direction
1 V CRADLE Power supply to the terminal and charge the
battery pack installed in the terminal.
-
2 D + USB D + IN/OUT
3 D - USB D - IN/OUT
4 USB_ID Switch-over between USB host and USB client* OUT
5 V BUS Power from USB cradle -
6 GND GND -
CAS
IO COMPUTER CO., LTD.
