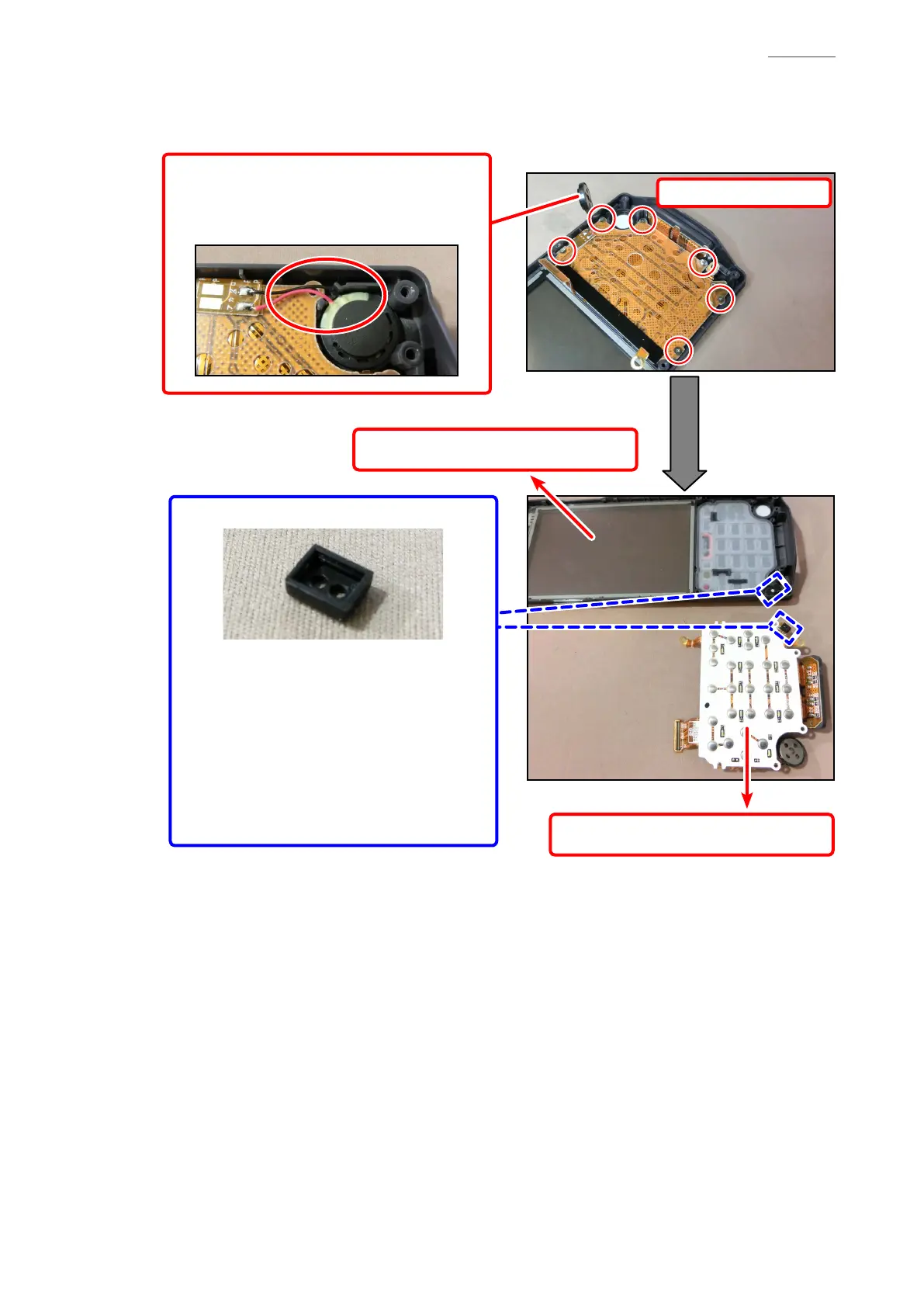

(2) Remove the speaker.
(3) Undo 6 screws and remove the KEY-UNIT.
U-CASE
KEY-UNIT
6 screws (S5)
COVER/MIC
NOTE:
When the KEY-UNIT is removed, the
COVER/MIC remains attached to either the
case or the KEY-UNIT. Since it is a tiny part,
pay attention not to lose it.
[ Note on reassembling ]
Fist put the COVER/MIC on the MIC of the
KEY-UNIT, and then assemble the KEY-UNIT
on the UPPER-CASE-UNIT.
Speaker
[ Note on reassembling ]
Tighten together with the Key FPC.
