Loading...
—
17
—
[DISPLA
Y]
Mode SW
1:PGM, 2:RF, 4:REG,
5:CAL, 6:X, 7:Z, 0:no contact
FEED key
1:ON, 0:OFF
No tax PAD (film)
1: tax (default)
0: no tax (cut)
PAD2
1:SHORT
0:OPEN
PAD1
1:SHORT
0:OPEN
No display
No display
0:Fixed

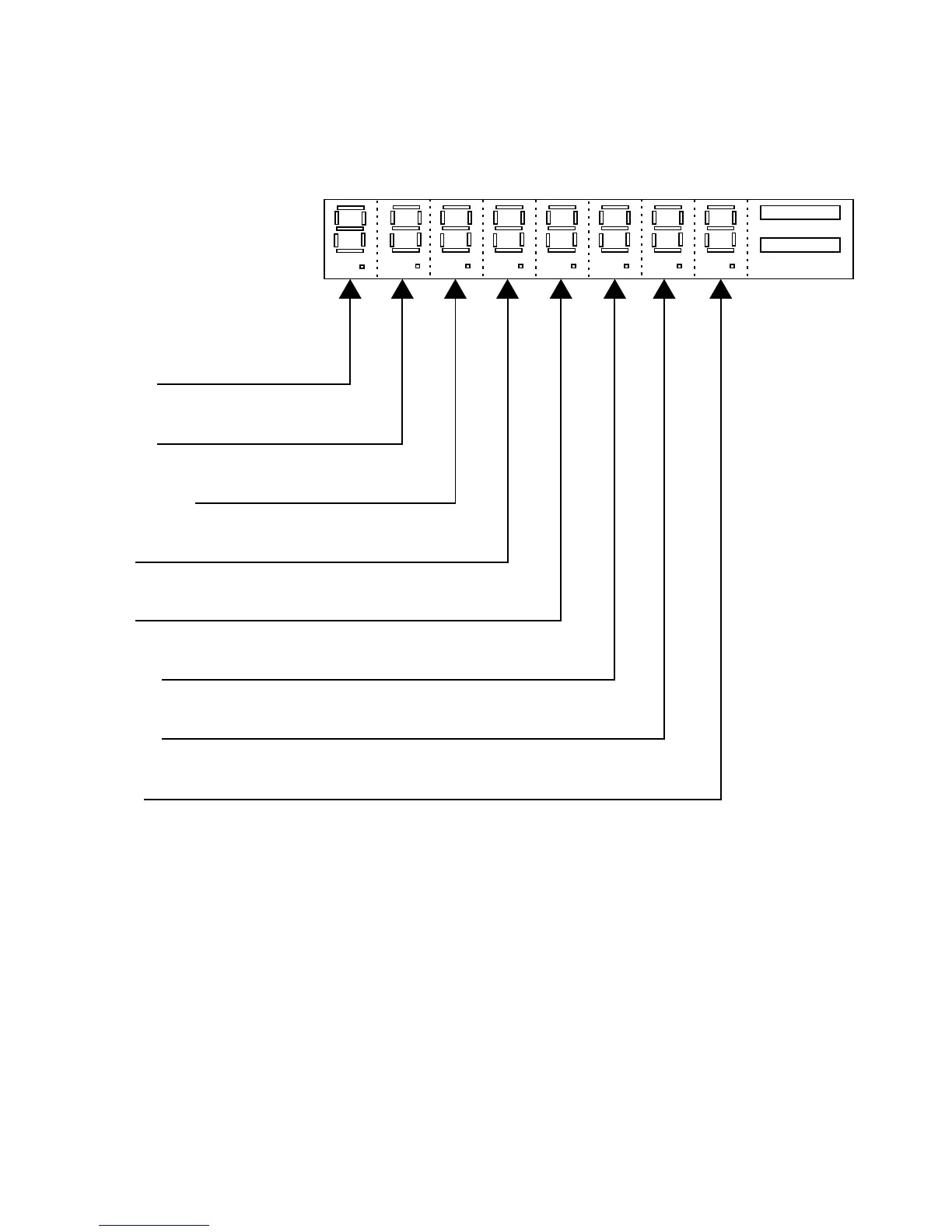

6-3. Displaying the Switch Condition
Press the clear key, or change the status of switches to display the current conditions.
18
20
Table of Contents
Service Manual
2
Table of Contents
2
Specifications
3
Machine Intialization
5
Block Diagram
6
Disassembly
7
Circuit Explanation
11
Power Circuit
17
Reset Circuit
17
Diagnostic Operations
18
Troubleshooting
22
IC Data
23
Pcb Layput
24
Circuit Diagram
25
11. Parts List Model : 130Cr/Pcr-262/Ce-160
29
Parts List
29
130Cr
32
Main Pcb Block & Main Display Block
32
Button Block
33
Power Cord Block
37
Upper Case Block
37
Drawer (Dl-1329A)
38
Drawer (Dl-1841A)
40
Drawer (Dl-2794A)
42
Drawer (Dl-2796A)
44
