— 6 —

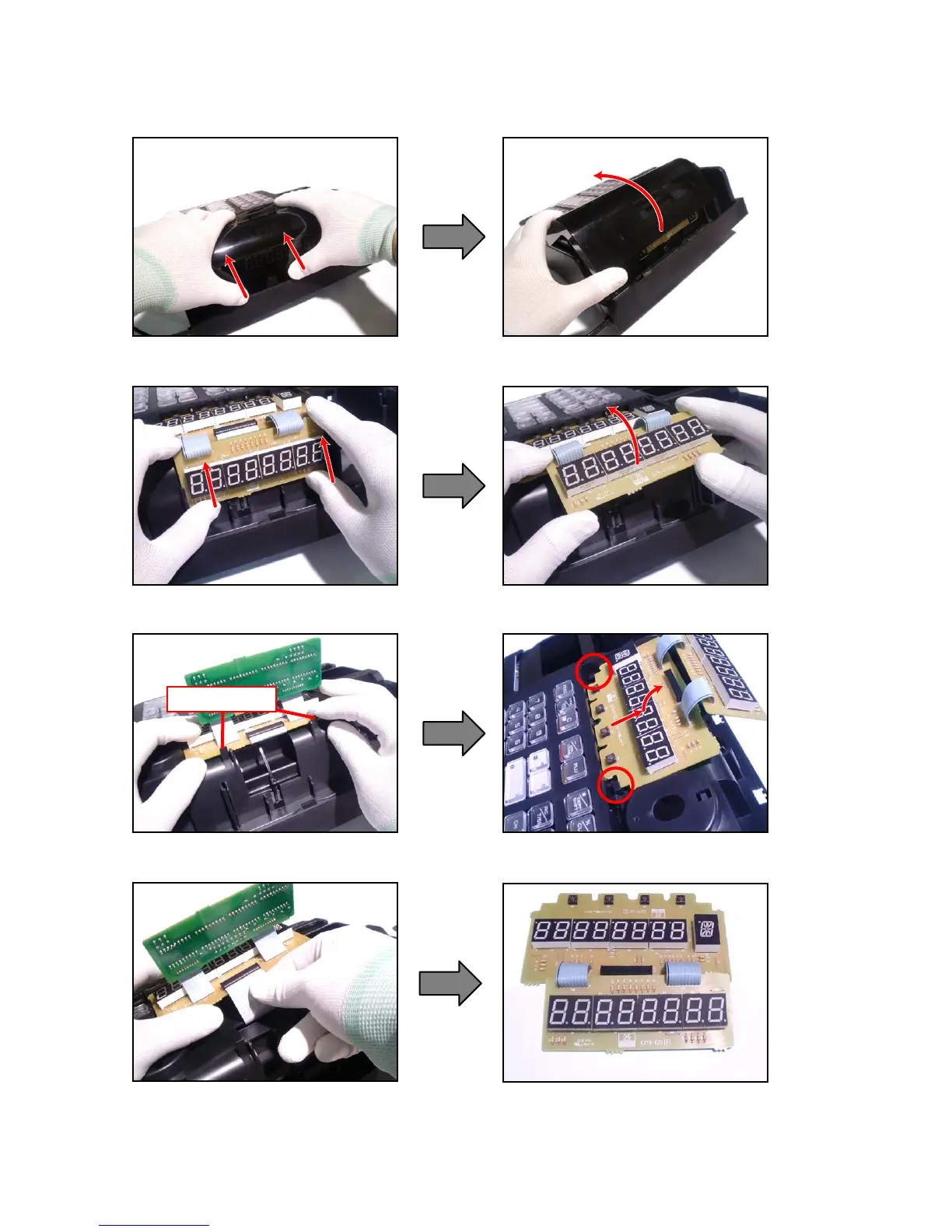

D. DISPLAY-ASSY
D-1. Remove the Display Cover.
D-2. Remove the Back Segment LCD.
D-3. Remove two hooks and, then, the Front Segment LCD.
Hooks
C-4. Remove the FFC and remove the E276-PR PCB.
