Casio PCR-T290L - Printer Unit; Key Board Assy

— 7 —

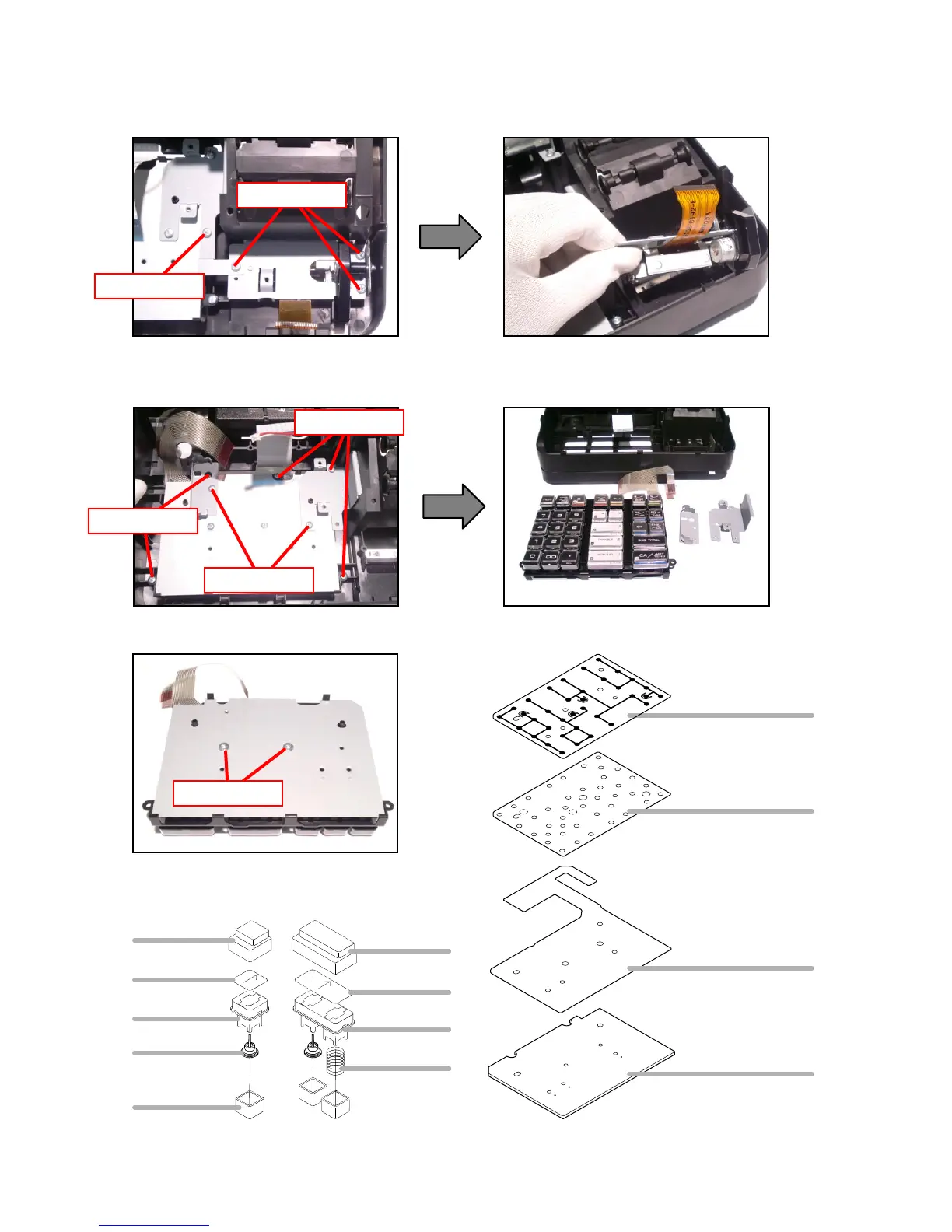

E. PRINTER UNIT
E-1. Undo four screws (S1, S2) and remove the Printer Unit.
Screws (S2)
F. KEY-BOARD-ASSY
F-1. Undo seven screws (S1, S2) and remove the Key-Board-ASSY.
Screws (S2)
Screws (S1)
Screws (S2)
F-2. Undo two screws (S4) and disassemble the Key-Board-ASSY.
CHASSIS
FFC
SPACER
COMMON SHEET
CAP/L
PLATE/L
KEY TOP/L
KEY TOP/L
PLATE/S
KEY TOP/S
RUBBER/C
FRAME/KB
CAP/S
Screws (S4)
Screw (S1)
